Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger seat belt pretensioner (1) to the passenger seat bottom frame.
  2. Install the passenger seat belt pretensioner wiring harness (2) through the passenger seat bottom frame.

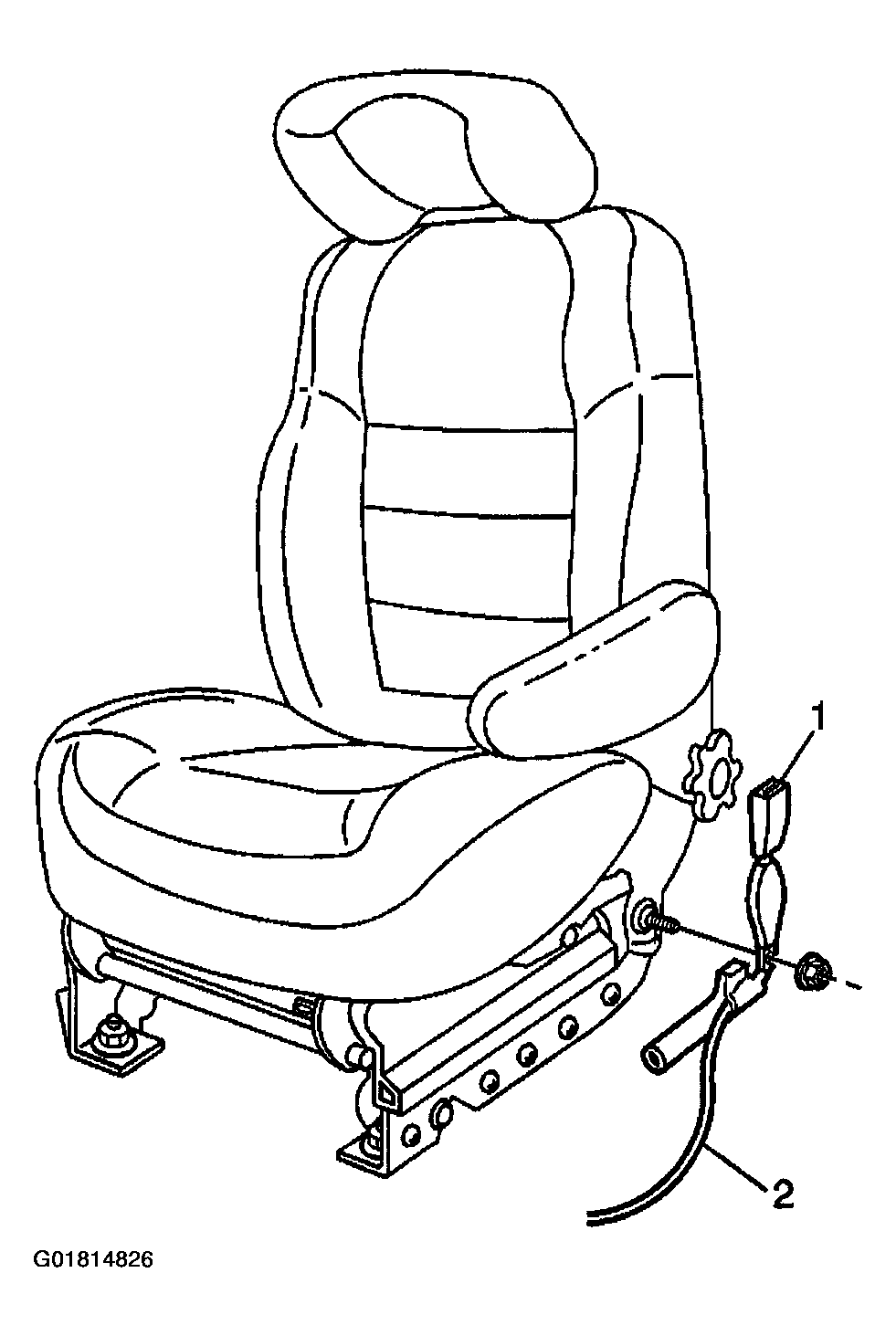

    Fig 1: Installing Driver Seat Belt Pretensioner & Wiring Harness (RH)
    G01814826Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the nut (1) to the passenger seat belt pretensioner.

    Tighten

    Tighten the nut to 35 N.m (26 Ib. ft).

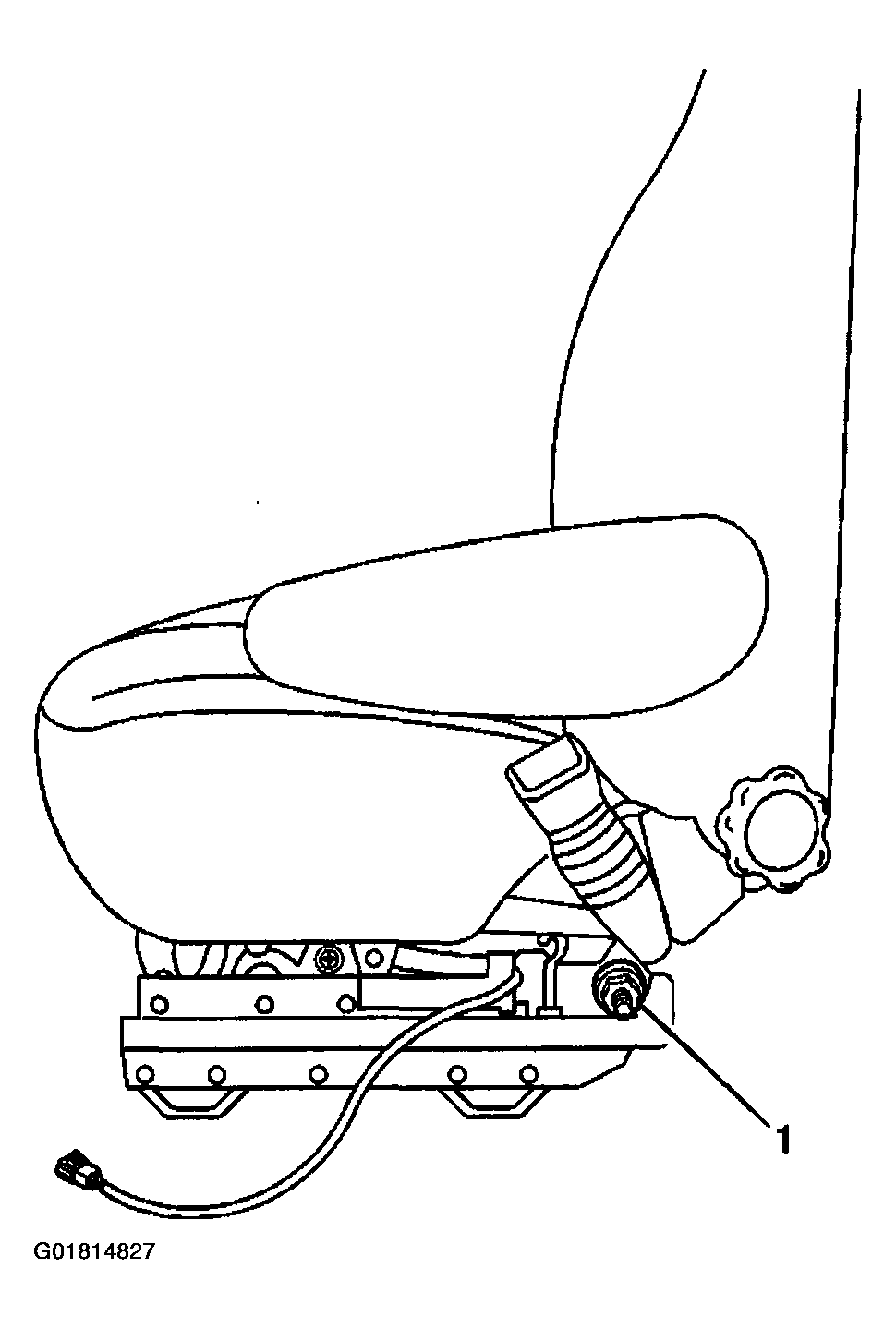

    Fig 2: Installing Nut & Driver Seat Belt Pretensioner (RH)
    G01814827Courtesy of GENERAL MOTORS CORP.
  4. Install the passenger seat adjuster track cover (1). Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .
  5. Install the passenger front seat. Refer to SEAT REPLACEMENT - BUCKET .
  6. Enable the SIR system. Refer to Enabling the SIR System .

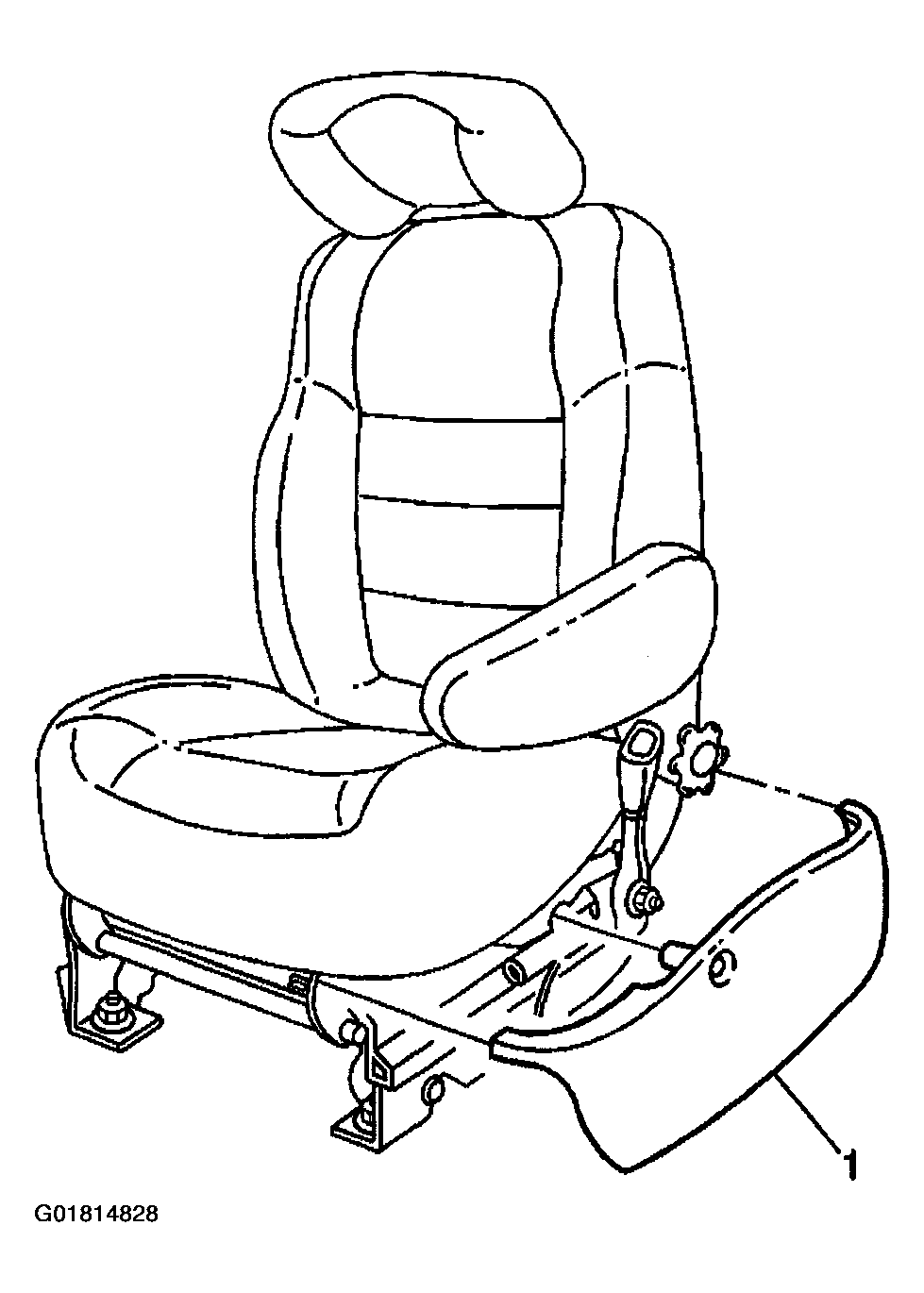

    Fig 3: Installing Driver Seat Adjuster Track Cover (RH)
    G01814828Courtesy of GENERAL MOTORS CORP.
