Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to Disabling the SIR System .
  2. Remove the driver seat. Refer to SEAT REPLACEMENT - BUCKET .
  3. Remove the driver seat adjuster track cover (1). Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .

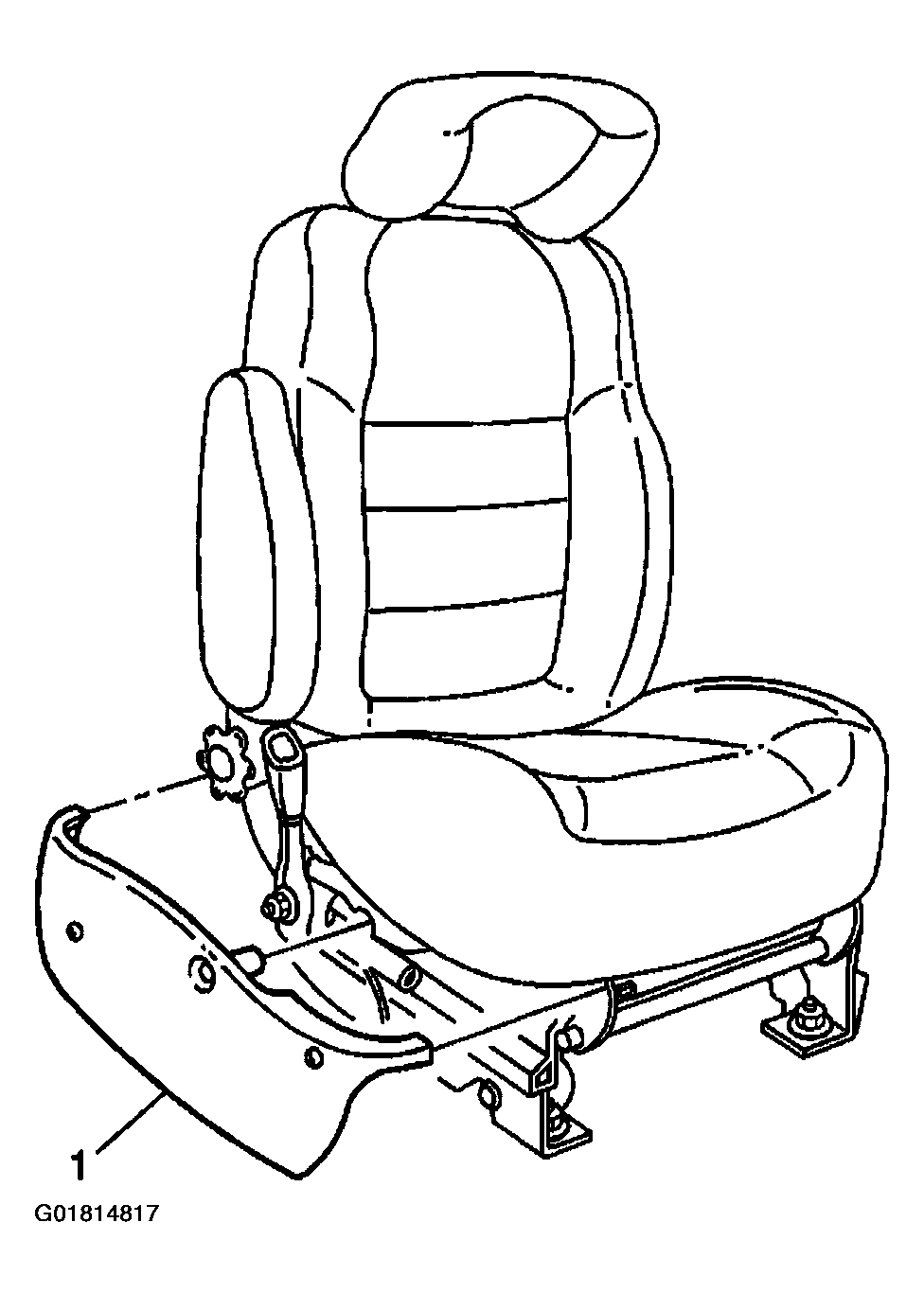

    Fig 1: Removing Driver Seat Adjuster Track Cover (LH)
    G01814817Courtesy of GENERAL MOTORS CORP.
  4. Remove the nut (1) from the driver seat belt pretensioner.

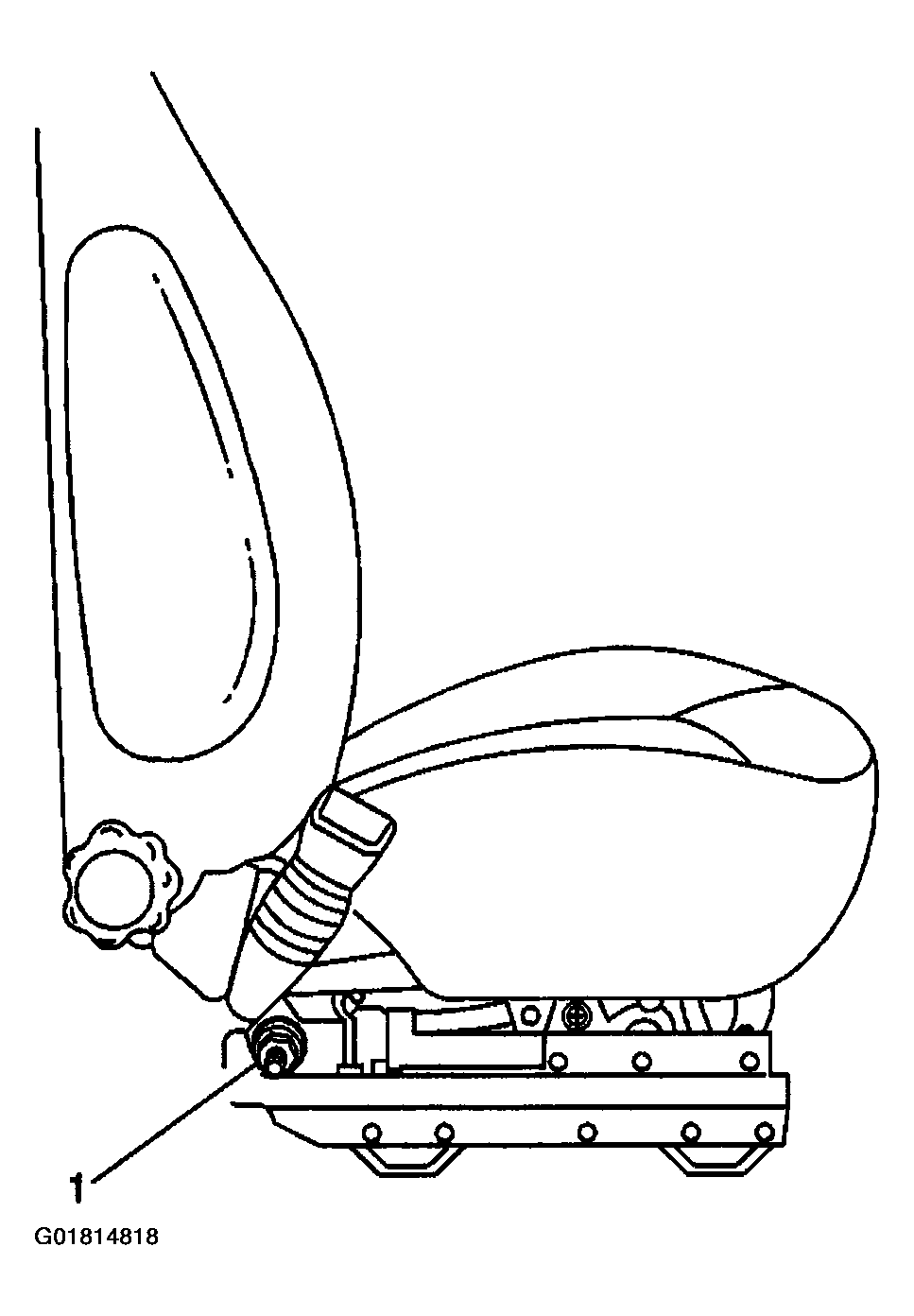

    Fig 2: Removing Nut & Driver Seat Belt Pretensioner (LH)
    G01814818Courtesy of GENERAL MOTORS CORP.
  5. Remove the driver seat belt pretensioner wiring harness (1) through the driver seat bottom frame.
  6. Remove the driver seat belt pretensioner (2) from the driver seat bottom frame.

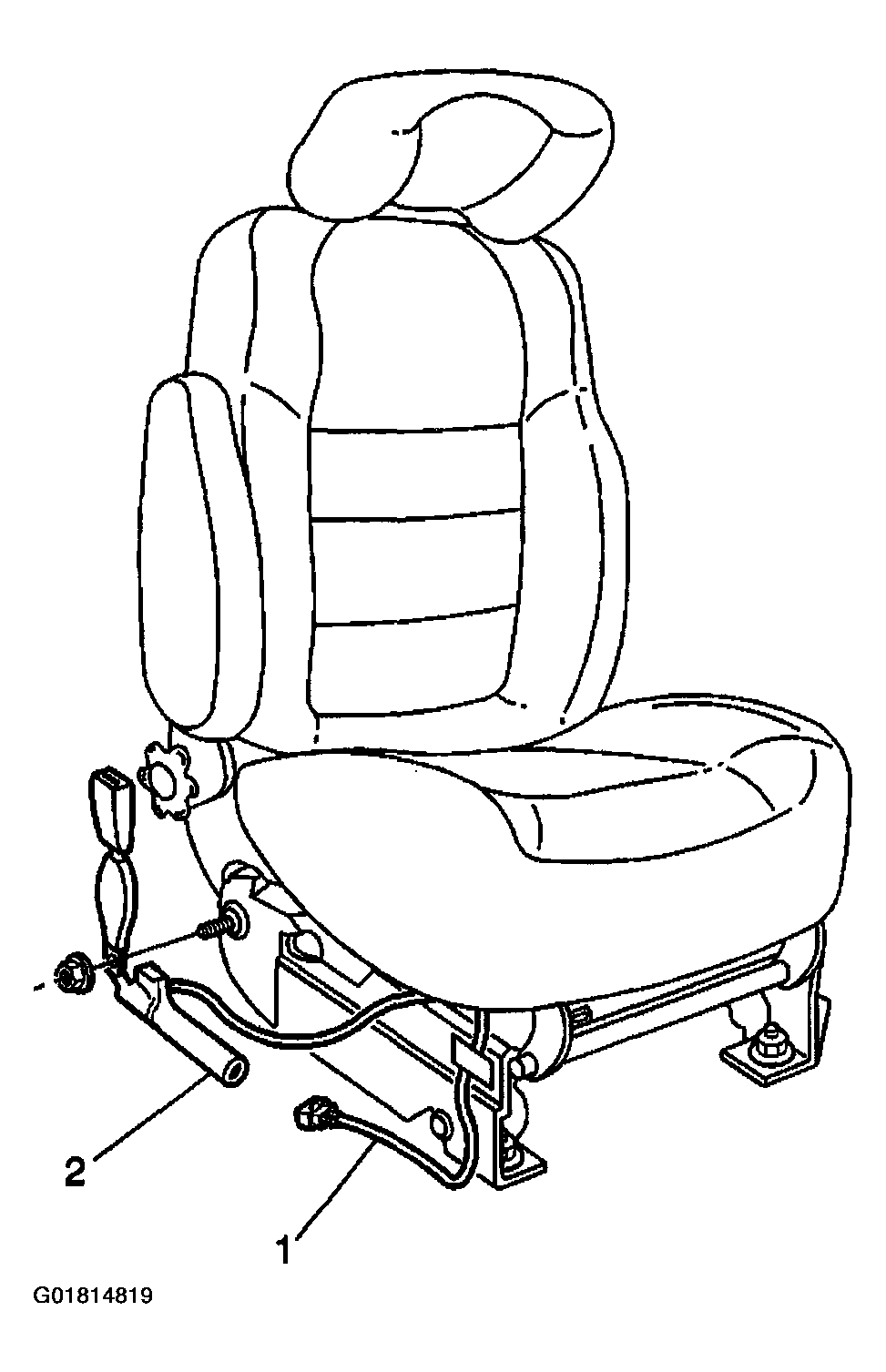

    Fig 3: Removing Driver Seat Belt Pretensioner & Wiring Harness (LH)
    G01814819Courtesy of GENERAL MOTORS CORP.
