Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the driver seat belt pretensioner (2) to the driver seat bottom frame.
  2. Install the driver seat belt pretensioner wiring harness (1) through the driver seat bottom frame.

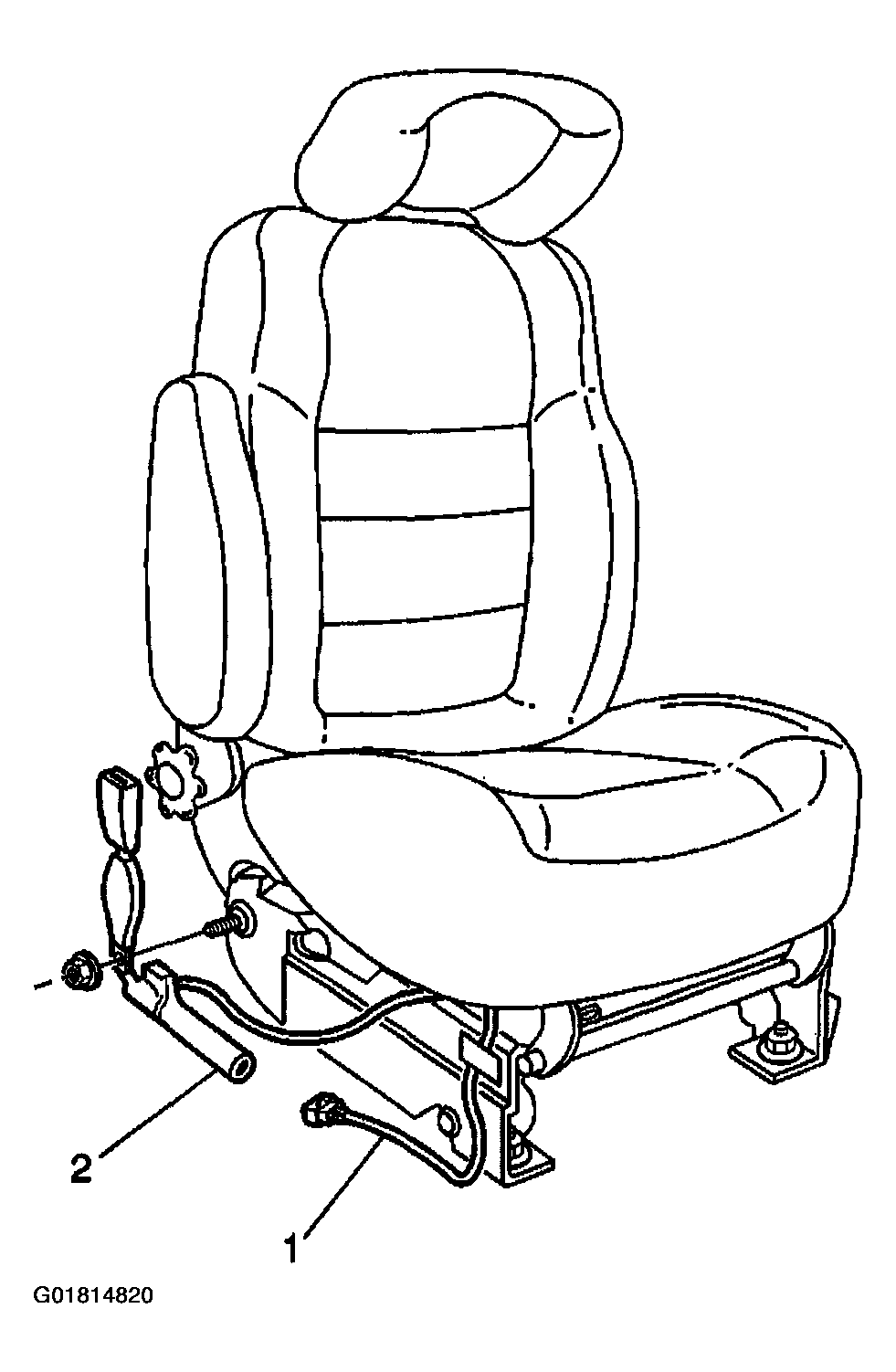

    Fig 1: Installing Driver Seat Belt Pretensioner & Wiring Harness (LH)
    G01814820Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the nut (1) to the driver seat belt pretensioner.

    Tighten

    Tighten the driver seat belt pretensioner nut to 35 N.m (26 lb ft).

    Fig 2: Installing Nut & Driver Seat Belt Pretensioner (LH)
    G01814821Courtesy of GENERAL MOTORS CORP.
  4. Install the driver seat adjuster track cover (1). Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - FRONT .
  5. Install the driver seat. Refer to SEAT REPLACEMENT - BUCKET .
  6. Enable the SIR system. Refer to Enabling the SIR System .

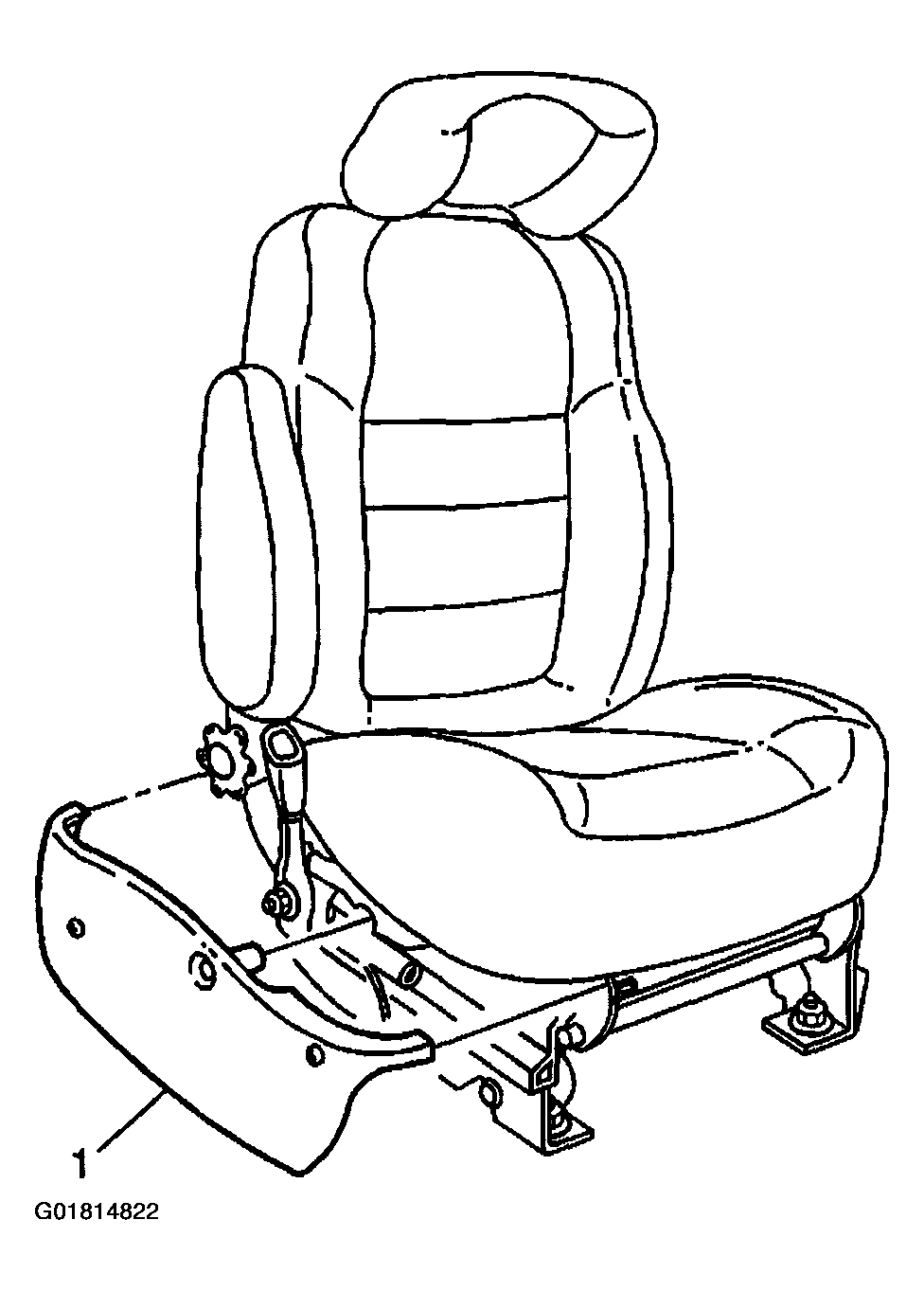

    Fig 3: Installing Driver Seat Adjuster Track Cover
    G01814822Courtesy of GENERAL MOTORS CORP.
