Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to Disabling the SIR System .
  2. Remove the seat belt retractor trim cover. Refer to SEAT BELT RETRACTOR REPLACEMENT - LEFT FRONT or SEAT BELT BUCKLE REPLACEMENT - RIGHT FRONT .
  3. Loosen the inflatable restraint side impact sensor fasteners (2).

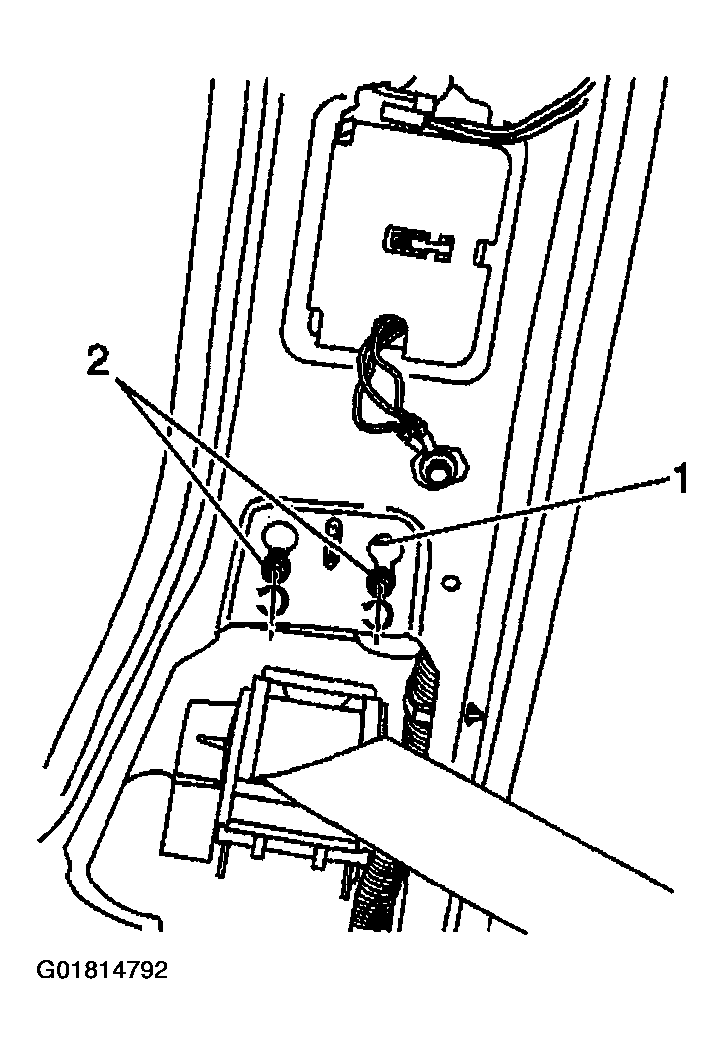

    Fig 1: Removing Inflatable Restraint Side Impact Sensor & Fasteners
    G01814792Courtesy of GENERAL MOTORS CORP.
  4. Remove the inflatable restraint side impact sensor (1) from the center pillar.
  5. Remove the connector position assurance (CPA) (3) from the inflatable restraint side impact sensor yellow 2-way wiring harness connector (2).
  6. Disconnect the inflatable restraint side impact sensor wiring harness connector (2).

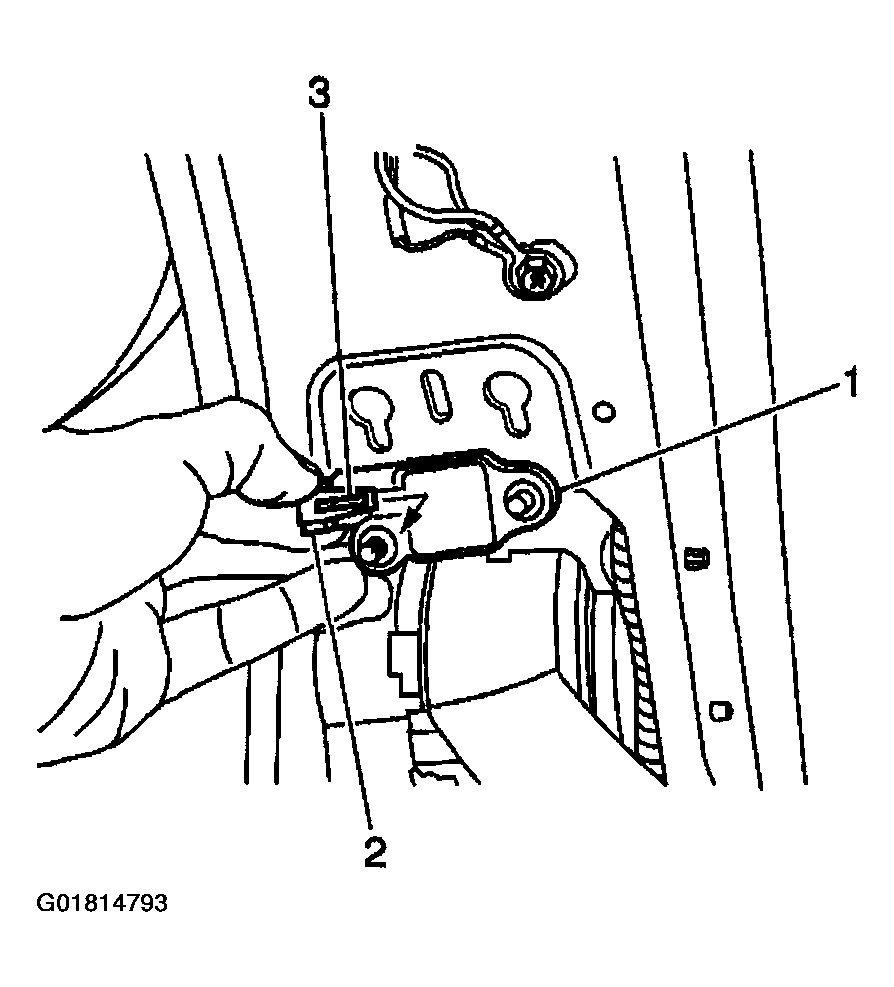

    Fig 2: Removing CPA & Inflatable Restraint Side Impact Sensor
    G01814793Courtesy of GENERAL MOTORS CORP.
