Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, install the Heated Oxygen Sensor (HO2S). Refer to HEATED OXYGEN SENSOR .
  2. If removed, install the exhaust gas recirculation (EGR) valve pipe.
  3. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  4. Install the exhaust manifold gasket.
  5. Install the exhaust manifold.
    NOTE: Refer to FASTENER NOTICE .
  6. Install the exhaust manifold nuts.

    Tighten

    Tighten the exhaust manifold nuts to 16 N.m (12 lb ft).

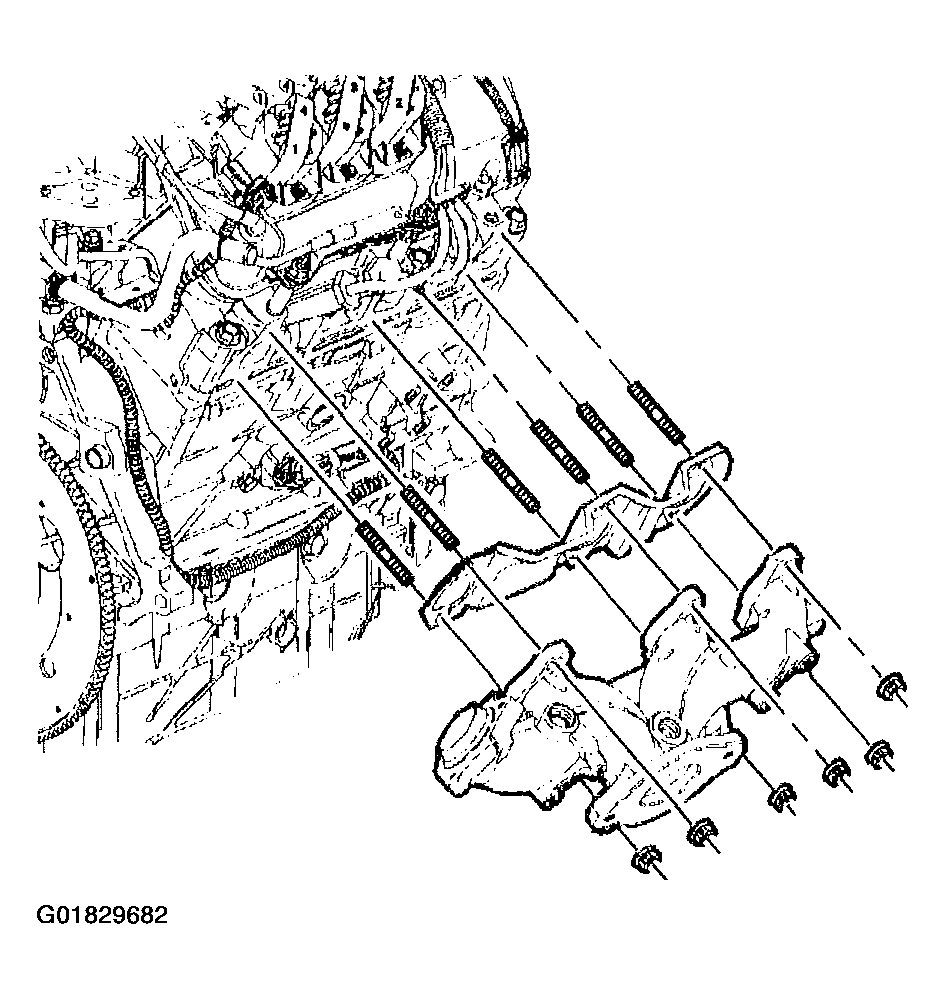

    Fig 1: Installing Exhaust Manifold, Gasket & Nuts (Right)
    G01829682Courtesy of GENERAL MOTORS CORP.
  7. Install the exhaust manifold lower heat shield.
  8. Install the exhaust manifold upper heat shield.
  9. Install the exhaust manifold heat shield bolts.

    Tighten

    Tighten the exhaust manifold heat shield bolts to 10 N.m (89 lb in).

  10. Install the catalytic converter. Refer to Catalytic Converter Replacement .
  11. Lower the vehicle.
  12. Install the exhaust crossover pipe nuts/studs to the engine right side exhaust manifold. Refer to Exhaust Crossover Pipe Replacement .
  13. Install the exhaust crossover pipe heat shield. Refer to Exhaust Crossover Pipe Replacement .
  14. Lower the vehicle.

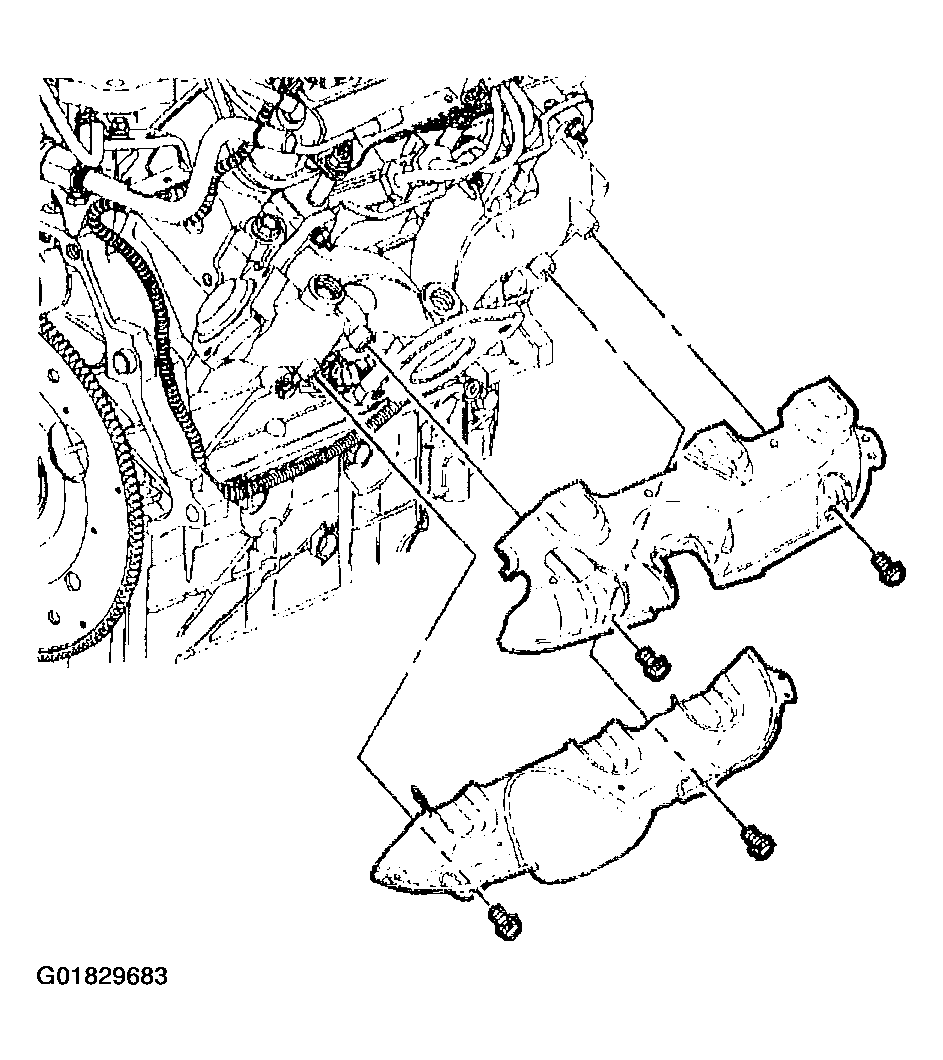

    Fig 2: Installing Exhaust Crossover Pipe Heat Shield & Bolts (Right)
    G01829683Courtesy of GENERAL MOTORS CORP.
  15. Connect the Heated Oxygen Sensor (HO2S) electrical connector.
  16. Install the EVAP solenoid bracket.
  17. Install the spark plug wires to the engine right bank spark plugs.
  18. Install the ignition module and the ignition coils with the bracket.
  19. Install the EGR valve to the intake manifold. Refer to EGR VALVE .
  20. Install the MAP sensor. Refer to MANIFOLD ABSOLUTE PRESSURE SENSOR .
  21. Rotate the engine back to the original position. Refer to ROTATING THE ENGINE FOR SERVICE ACCESS .
  22. Install the accelerator cable bracket to the throttle body. Refer to ACCELERATOR CONTROLS CABLE BRACKET .
  23. Install the throttle body air inlet duct.
  24. Install the windshield wiper motor cover. Refer to WIPER MODULE COVER REPLACEMENT .
