Rotating the Engine for Service Access

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41131  Engine Tilt Strap

  1. Remove the throttle body air inlet duct.
  2. Set the park brake.
  3. Shift the transaxle into Neutral.
  4. Remove the engine mount strut bolts. Swing the engine mount struts aside. Refer to ENGINE MOUNT STRUT REPLACEMENT - Left  and ENGINE MOUNT STRUT REPLACEMENT - Right .

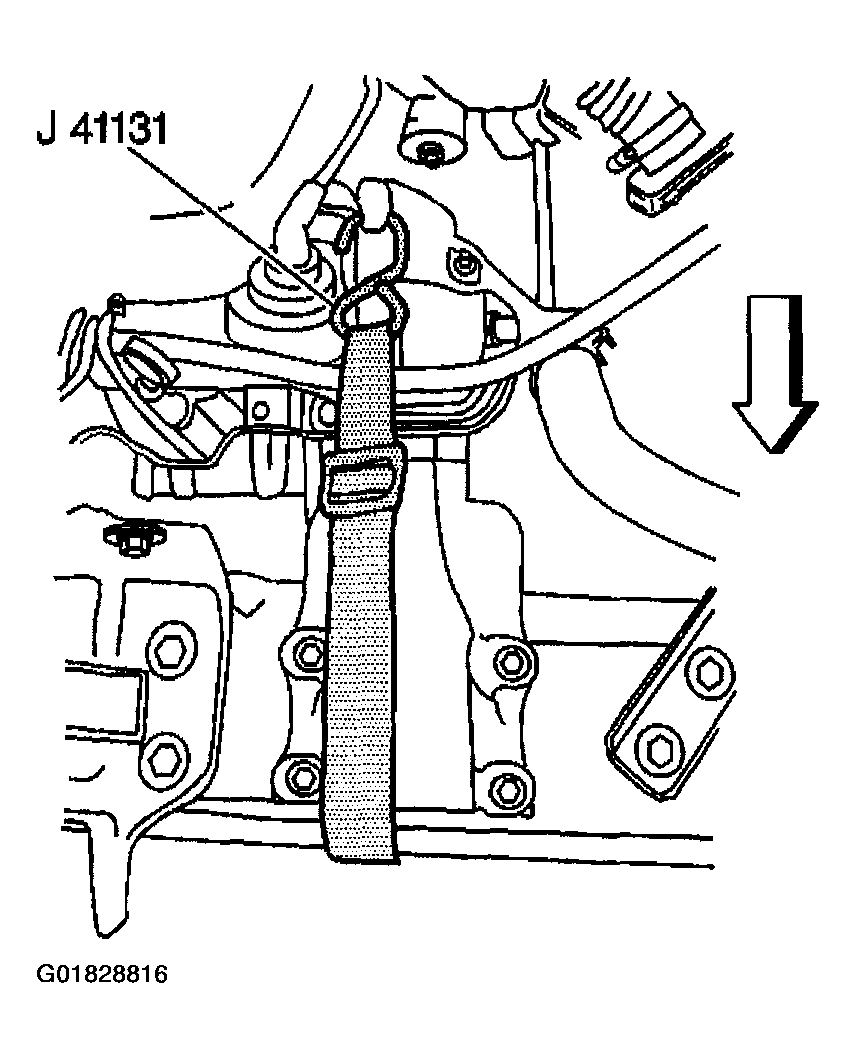

    Fig 1: Installing J 41131
    G01828816Courtesy of GENERAL MOTORS CORP.
  5. Install the J 41131  .
  6. Pull on the engine in order to rotate the engine forward.
  7. Tighten the J 41131  .
