Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE)  in Airbag.
  2. Remove the steering wheel controls wire harness from the retainers in the steering wheel.
  3. Remove the steering wheel control switch by pushing on the back of the switch through the opening in the steering wheel.
  4. Disconnect the electrical connector from the steering wheel control switch.

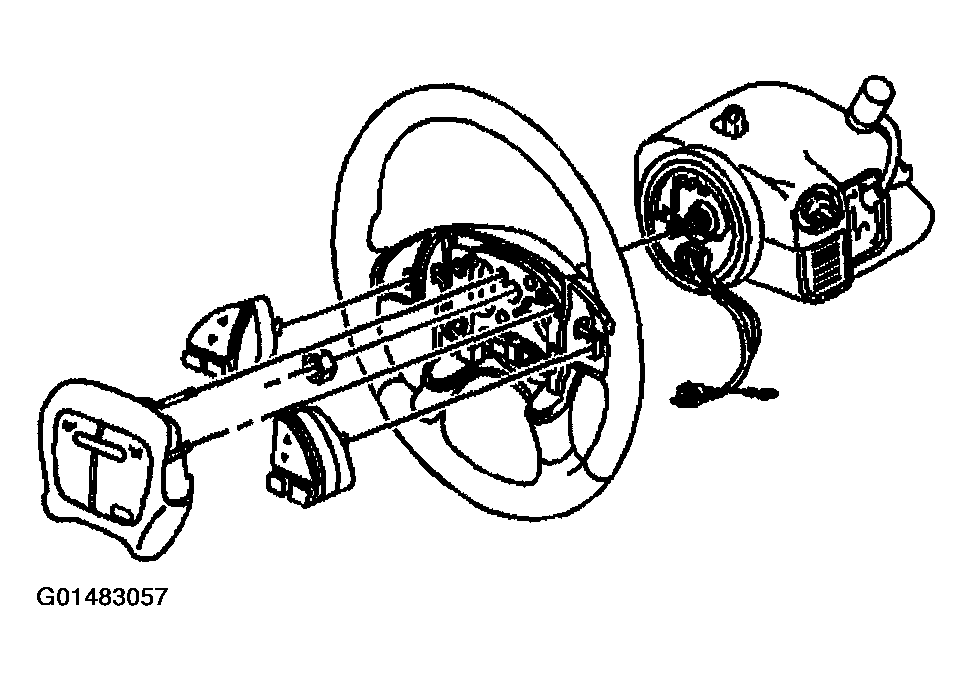

    Fig 1: Removing Steering Wheel Controls Wire Harness
    G01483057Courtesy of GENERAL MOTORS CORP.
