Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the steering wheel control switch.
  2. Push the steering wheel controls switch into the steering wheel.
  3. Install the steering wheel controls wire harness to the retainers in the steering wheel.
  4. Install the inflatable restraint steering wheel module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE)  in Airbag.

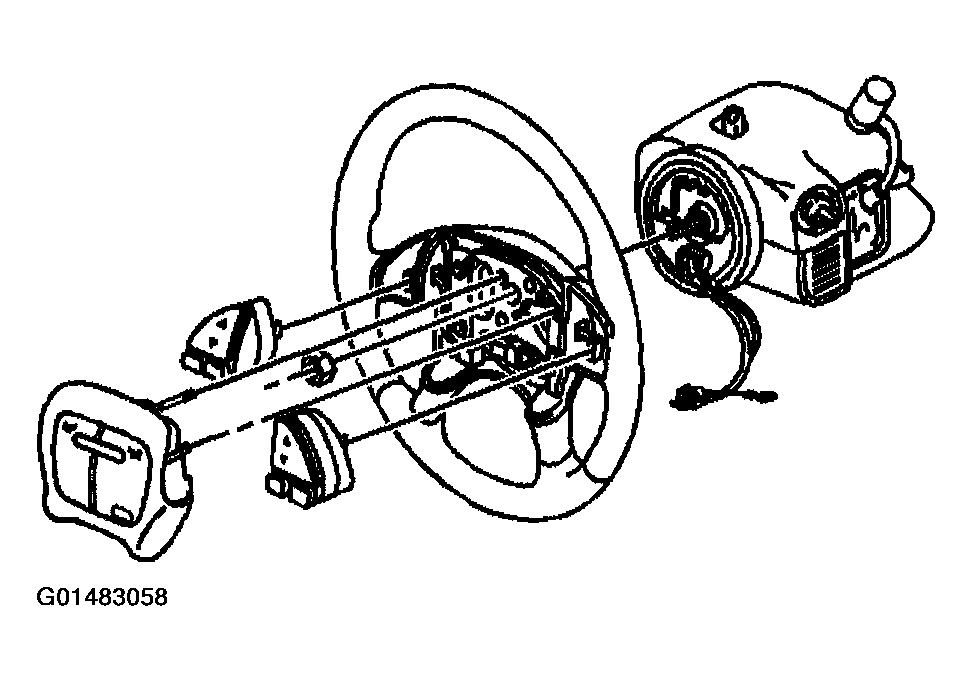

    Fig 1: Installing Steering Wheel Controls Wire Harness
    G01483058Courtesy of GENERAL MOTORS CORP.
