Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks (1) on the ignition lock cylinder case sector gears and install the sector gears.
  2. Ensure that the ignition lock cylinder case is in the OFF/LOCK position.
  3. Insert the ignition key into the NEW ignition lock cylinder.
  4. Align the lock cylinder retaining tab and the position tab with the slots in the lock housing.
  5. Push the lock cylinder into the lock housing completely.
  6. Rotate the lock cylinder to ACC.
  7. Ensure that the sector gear arrows point toward each other. If the sector gear arrows do not point toward each other, remove the sector gears and install the sector gears properly.
  8. Install ignition lock cylinder case rear cover.
  9. Push the lock bolt completely into the into the tilt head and hold the lock bolt.
  10. Install the ignition lock cylinder case with the ignition switch, the theft deterrent module and the steering column upper trim cover. Refer to IGNITION LOCK CYLINDER CASE REPLACEMENT  .
  11. Install the park lock cable to the ignition lock cylinder case.
  12. Adjust the park lock cable.
  13. Install the steering column lower trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT
  14. Install the turn signal cancel cam and the shaft lock shield. Refer to TURN SIGNAL CANCEL CAM AND STEERING SHAFT UPPER BEARING SPRING REPLACEMENT   .
  15. Install the SIR coil. Refer to SIR COIL ASSEMBLY  in Airbag.
  16. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT   .
  17. Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE)  in Airbag.
  18. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM  in Airbag.
  19. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.

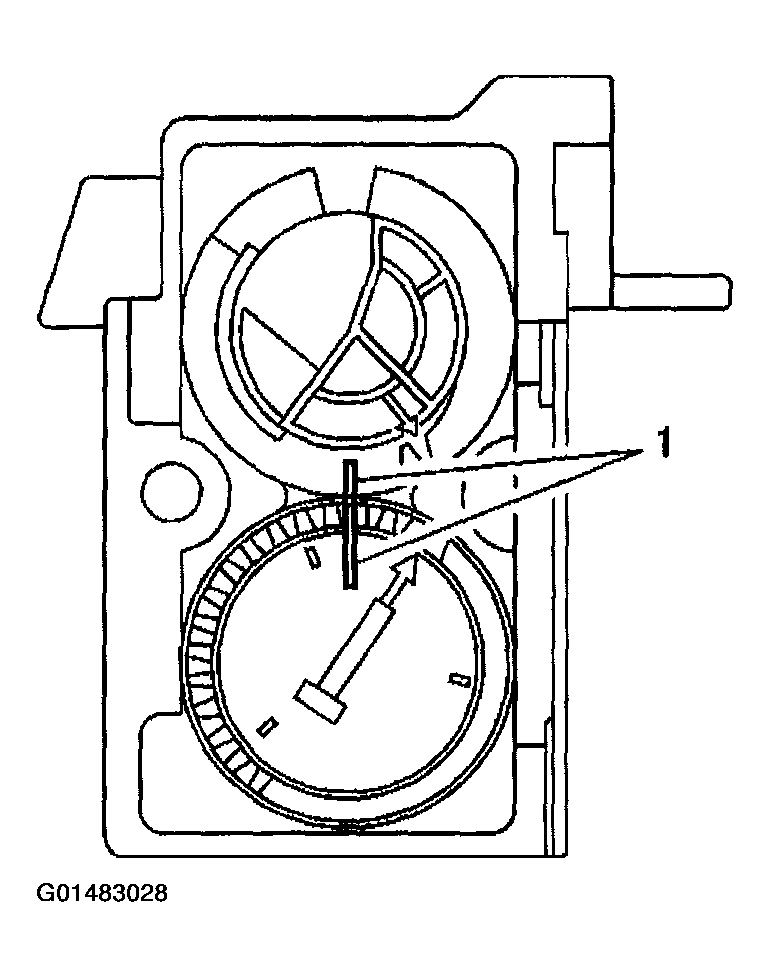

    Fig 1: Aligning Marks On Ignition Lock Cylinder Case Sector Gears And Install Sector Gears
    G01483028Courtesy of GENERAL MOTORS CORP.
