Turn Signal Switch Housing - Disassemble - Off Vehicle (Aurora)

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION .
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .
  2. Remove the upper tilt head components. Refer to Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle  .
  3. If necessary, disconnect the connector from the windshield wiper and washer switch assembly.
  4. Remove the windshield wiper and washer switch assembly in the following way:
    1. 4.1. Press on the locking tabs of the windshield wiper and washer switch assembly.
    2. 4.2. Pull the windshield wiper and washer switch assembly out of the turn signal switch housing.

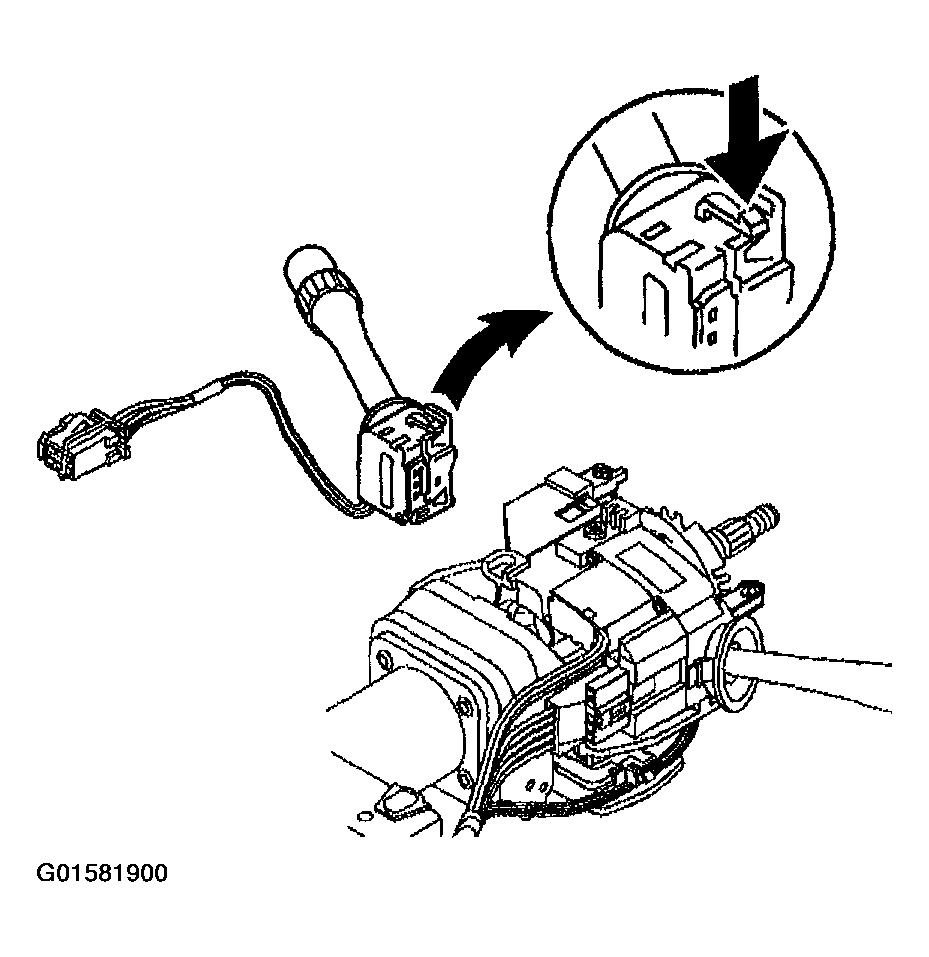

    Fig 1: Disconnecting Windshield Wiper & Washer Switch Assembly
    G01581900Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 pan head tapping screws (1).
  6. Remove the turn signal switch housing (2).

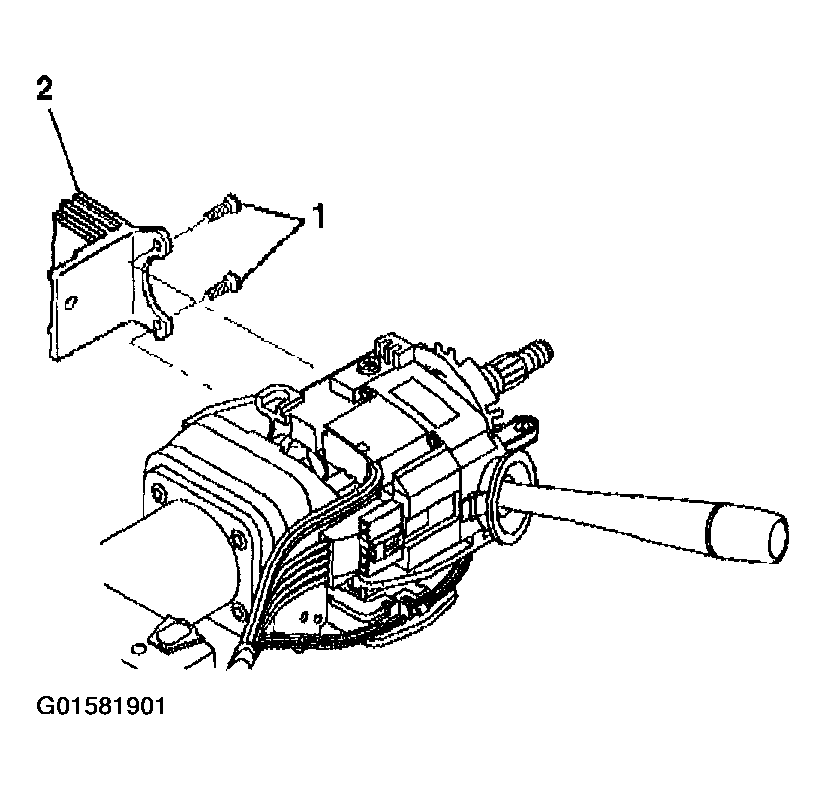

    Fig 2: Removing Turn Signal Switch Housing
    G01581901Courtesy of GENERAL MOTORS CORP.
