Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle

Tools Required

• J 23653-SIR  Steering Column Lock Plate Compressor
• J 42137  Steering Column Lock Plate Adapter Compressor Adapter

1. Disable the inflatable restraint steering wheel module. Refer to DISABLING SYSTEM .

   Important:  Do not remove the wire harness straps unless necessary.

2. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Disassemble - Off Vehicle  .
3. Remove and dispose of the bearing retainer (1) using J 23653-SIR  and J 42137  .

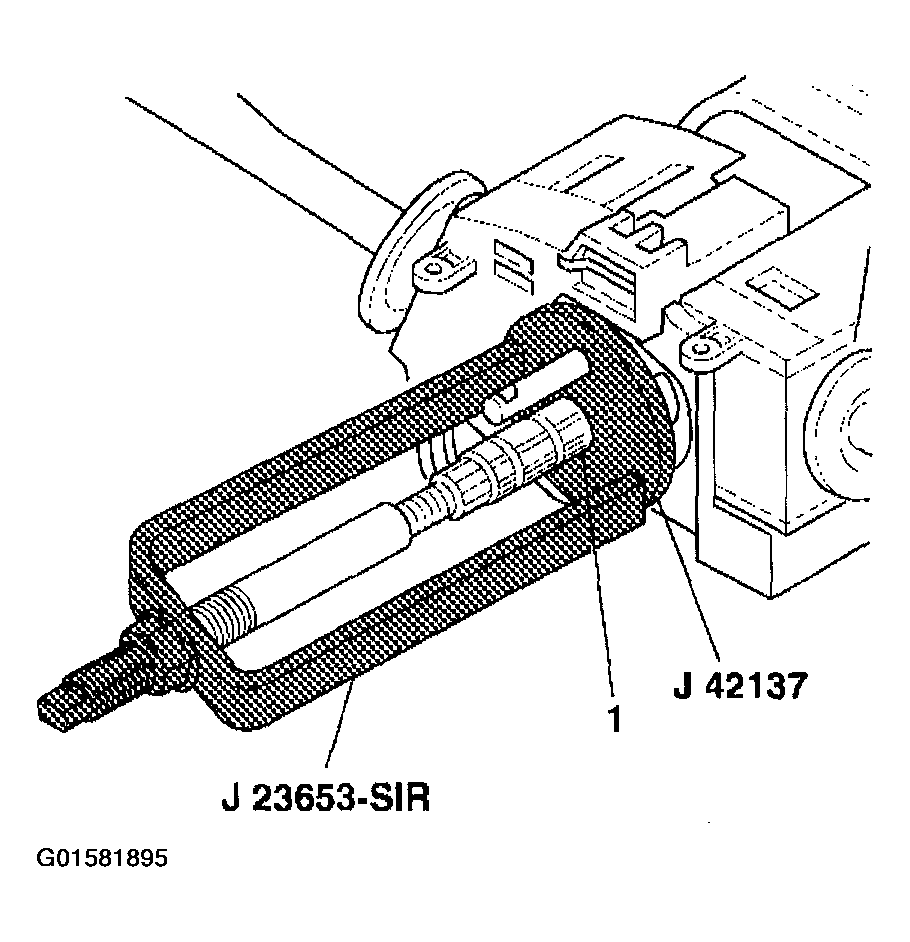

   Fig 1: Removing Bearing Retainer

   Courtesy of GENERAL MOTORS CORP.
4. Remove the shaft lock shield assembly (1).
5. Remove the turn signal cancel cam assembly (2).
6. Remove the upper bearing spring (3).
7. Remove the upper bearing inner race seat (4).
8. Remove the inner race (5).
   Fig 2: Removing Inner Race

   Courtesy of GENERAL MOTORS CORP.
