Turn Signal Cancel Cam and Upper Bearing Inner Race - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 23653-SIR Steering Column Lock Plate Compressor
J 42137 Steering Column Lock Plate Compressor Adapter

Install the inner race (4).
Install the upper bearing inner race seat (3).
Install the upper bearing spring (2).
Lubricate the turn signal cancel cam assembly (1).
Important: The electrical contact of the turn signal and multifunction switch assembly must rest on the turn signal cancel cam assembly.
Install the turn signal cancel cam assembly (1).

Fig 1: Installing Turn Signal Cancel Cam Assembly
Courtesy of GENERAL MOTORS CORP.
Install the shaft lock shield assembly.

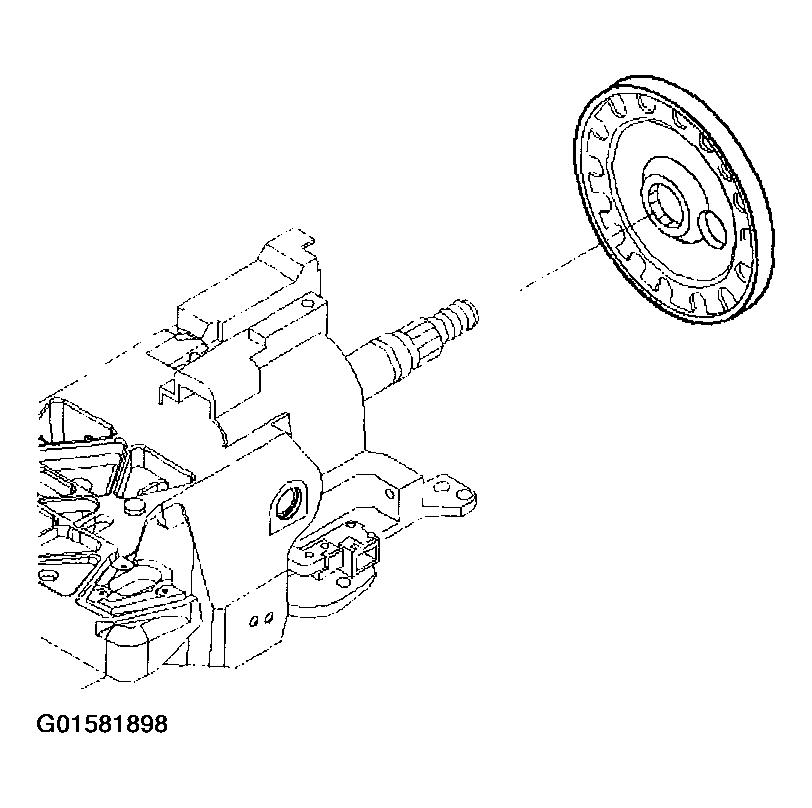

Fig 2: Installing Shaft Lock Shield Assembly
Courtesy of GENERAL MOTORS CORP.

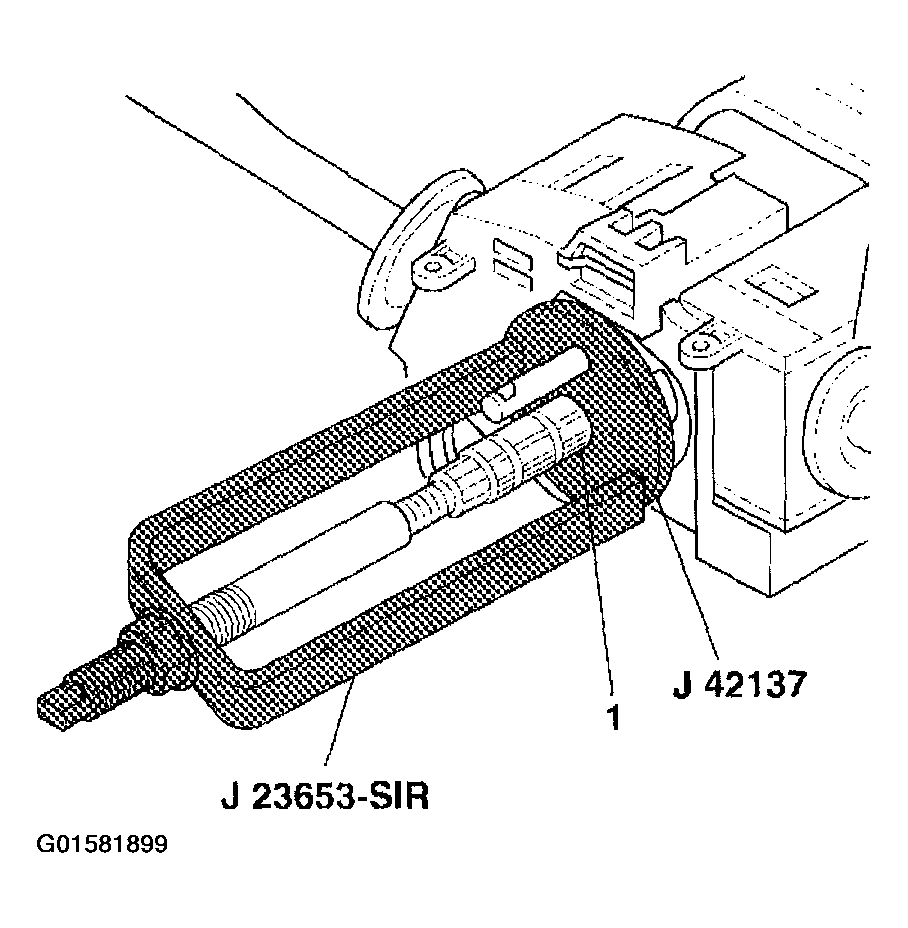

Install the new bearing retainer (1) using J 23653-SIR and J 42137 .
CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .

Fig 3: Installing Bearing Retainer

Courtesy of GENERAL MOTORS CORP.

Install the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle .
Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
