Valve Covers: Installation

Apply RTV Sealer (12345739) where cylinder head and intake manifold meet. See Fig 1. Install valve cover and gasket. Tighten bolts to specification. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.

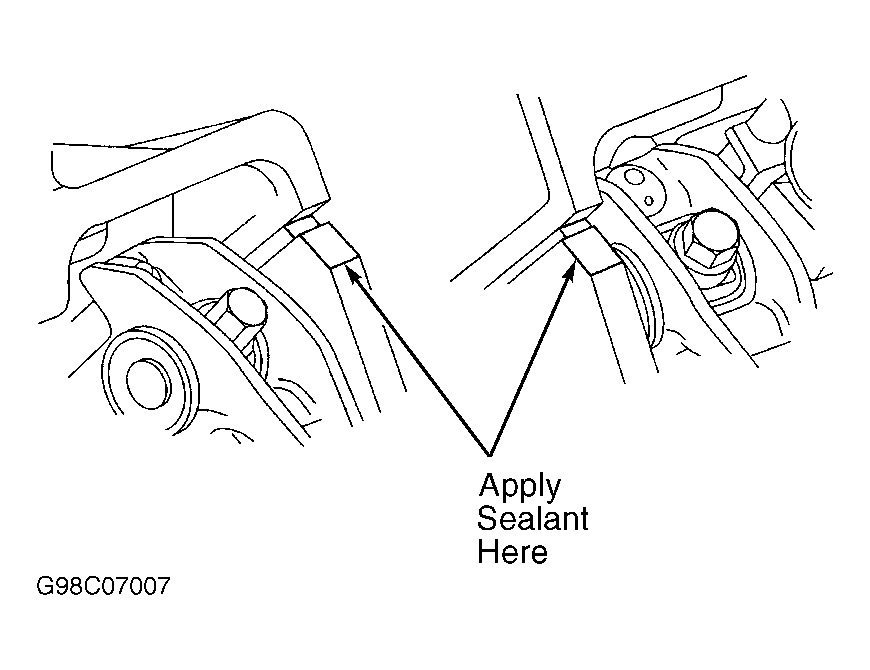

Fig 1: RTV Application To Seal Valve Covers

Courtesy of GENERAL MOTORS CORP.
