Oil Pan: Installation

Apply a small amount of Sealant (1234579) on either side of rear main bearing cap, where seal surface on cap meets cylinder block. See Fig 2. Install gasket and oil pan. To complete installation, reverse removal procedure. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS . Fill crankcase with oil.

Fig 1: Oil Pan Mounting
G98G07009Courtesy of GENERAL MOTORS CORP.

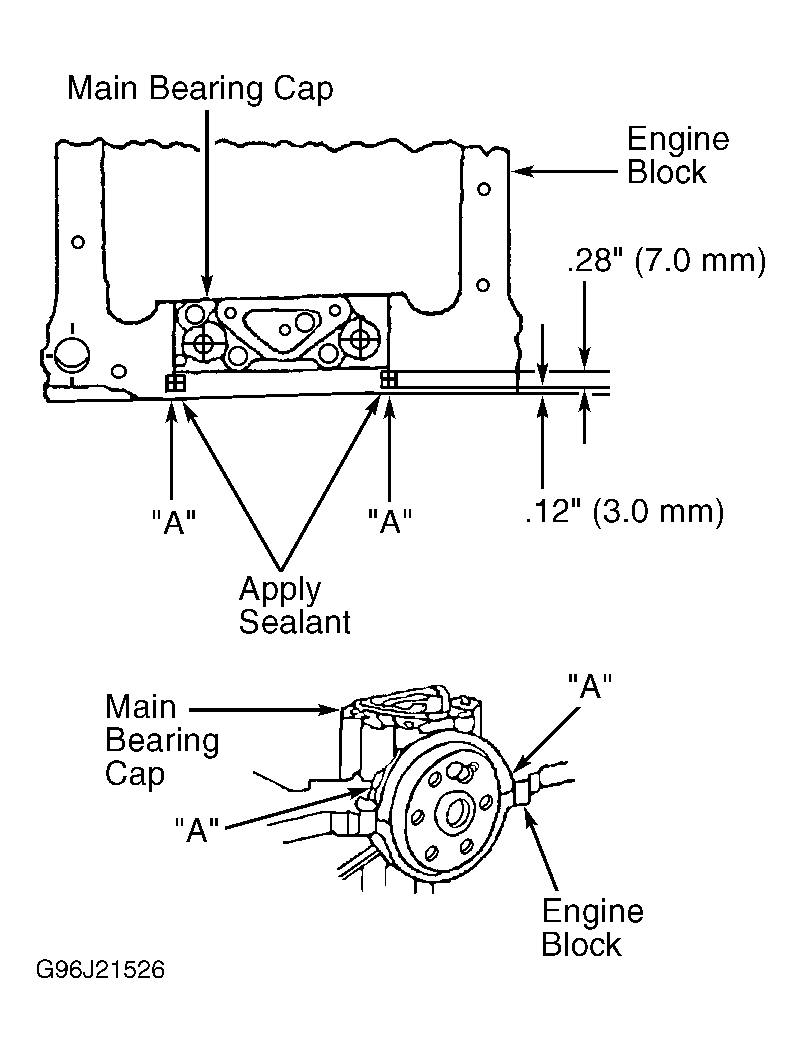

Fig 2: Oil Pan Sealing
G96J21526Courtesy of GENERAL MOTORS CORP.
