Removal & Installation: Camshaft: Installation

  1. Lubricate camshaft bearings, camshaft lobes and thrust plate with Lubricant (1052365). Lubricate camshaft journals with engine oil. Carefully rotate and install camshaft into bearing bore.
  2. Install camshaft thrust plate. To install remaining components, reverse removal procedure. Ensure timing marks are aligned. See Figure. Install valve lifters and push rods in original locations. If camshaft was replaced, add Engine Oil Supplement (1052367) to engine oil. Tighten nuts and bolts to specification. See TORQUE SPECIFICATIONS .

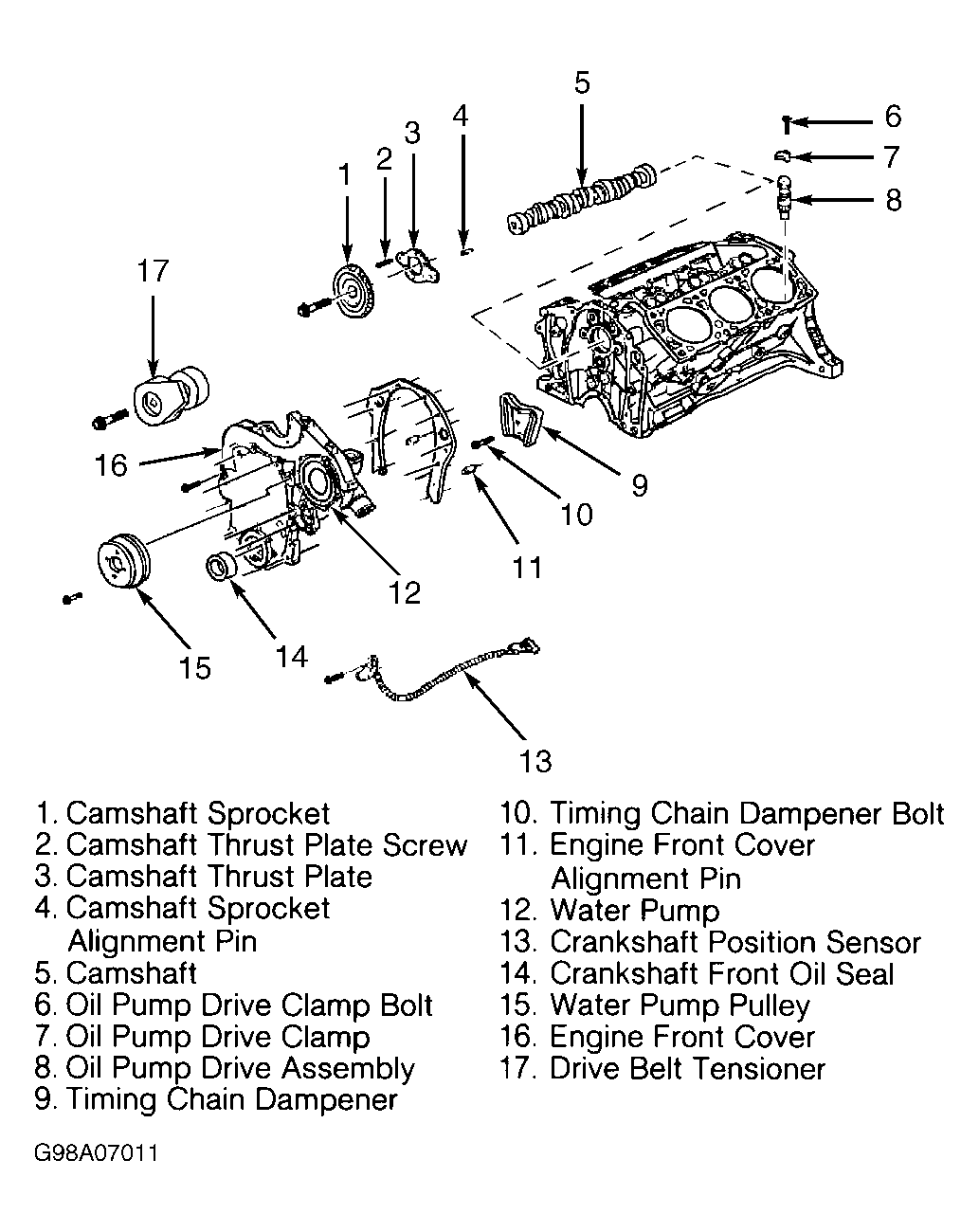

Fig 1: Front Cover & Camshaft Assembly
G98A07011Courtesy of GENERAL MOTORS CORP.
