Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper trim cover (2) to the steering column.
    NOTE: Refer to FASTENER NOTICE
  2. Install the steering column upper trim cover screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

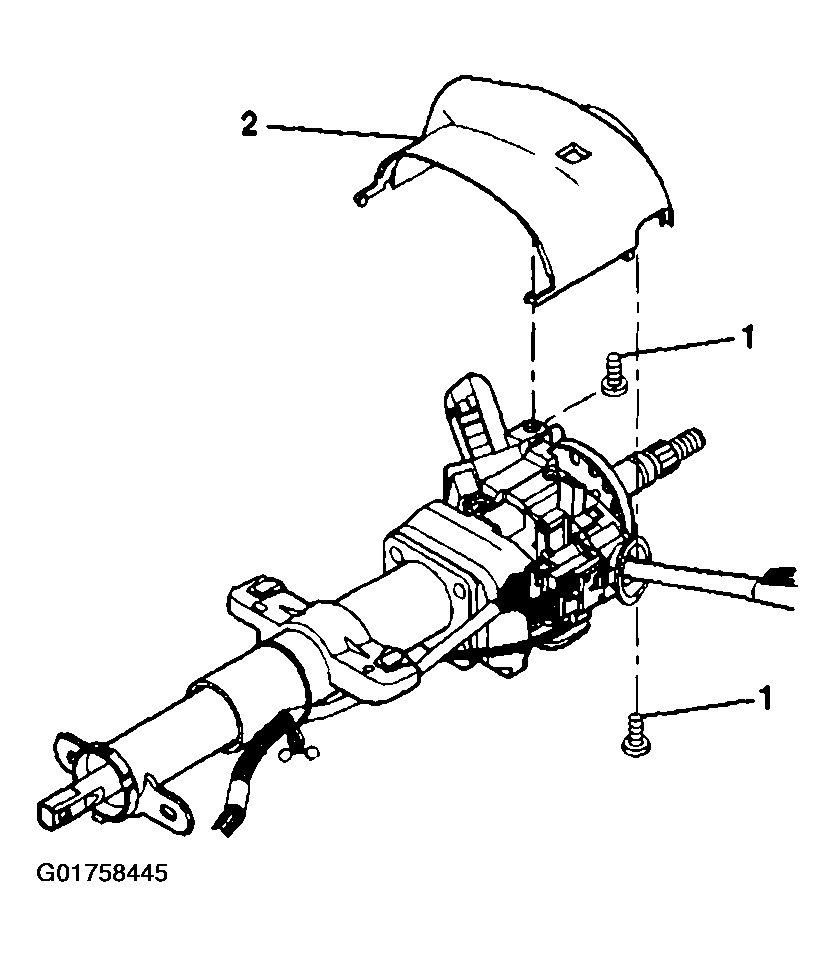

    Fig 1: Installing Steering Column Upper Trim Cover And Screws
    G01758445Courtesy of GENERAL MOTORS CORP.
  3. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
  4. Tilt the lower trim cover up and slide the lower trim cover until the locking tabs snap into the tab slots.

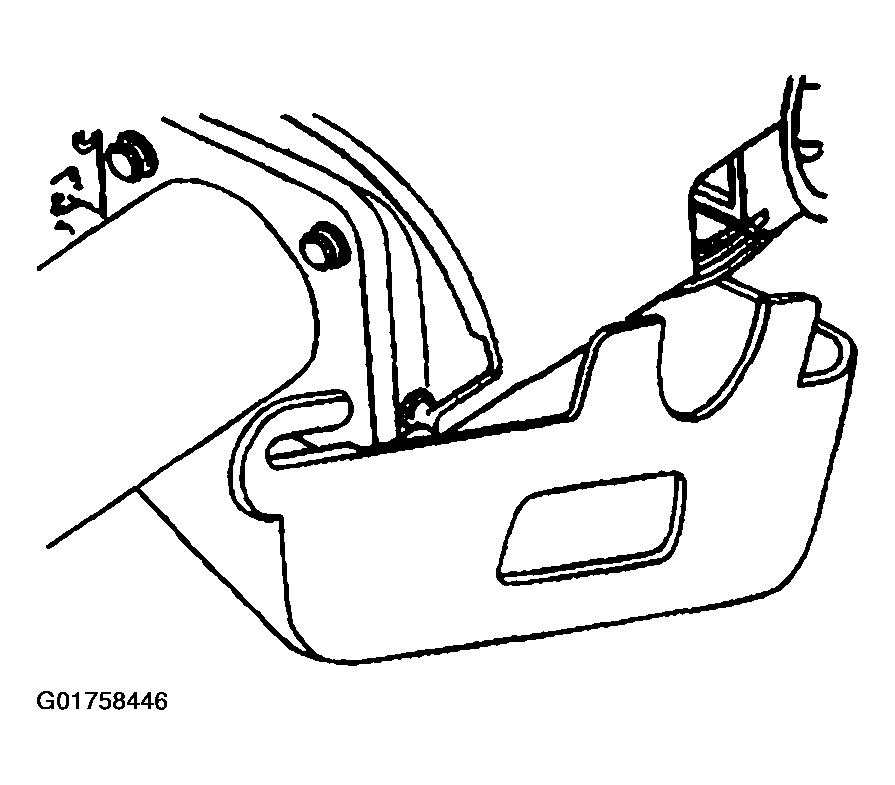

    Fig 2: Installing Lower Trim Cover
    G01758446Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column lower trim cover screws.

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  6. Install the tilt lever. Refer to Tilt Lever Replacement - On Vehicle
  7. Install the steering wheel. Refer to Steering Wheel Replacement
  8. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.

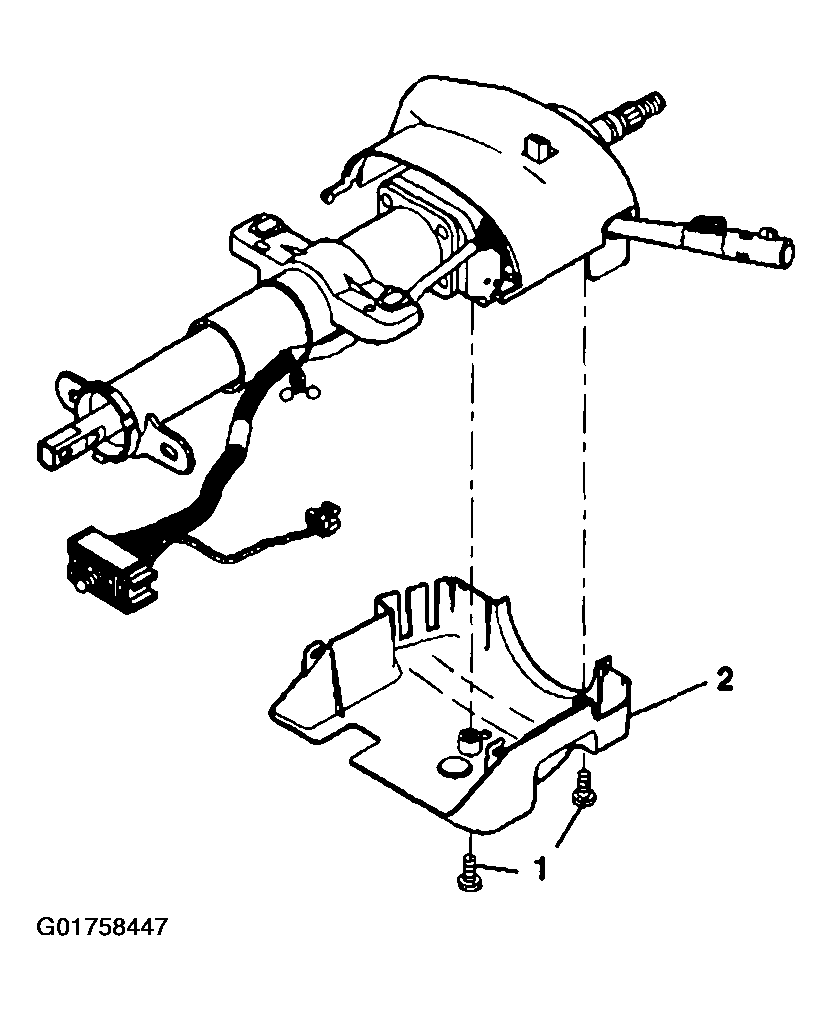

    Fig 3: Installing Steering Column Lower Trim Cover Screws
    G01758447Courtesy of GENERAL MOTORS CORP.
