Transaxle Mount: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transaxle mount to the transaxle mount frame bracket.

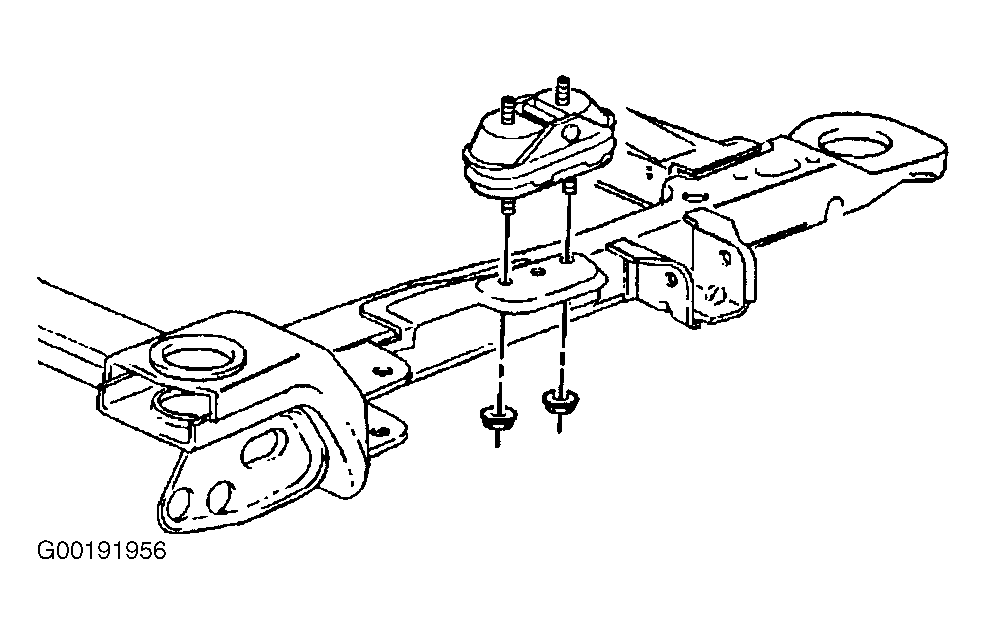

  2. Install the transaxle mount lower nuts to the transaxle mount frame bracket. See Figure . Tighten the nuts to specification. See TORQUE SPECIFICATIONS  .
  3. Install the transaxle mount bracket to the transaxle. See TRANSAXLE MOUNT BRACKET  .
