Torque Specifications
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| Engine Mount Bracket Bolt (Right Side) | 43 (58) | |||
| Engine Mount Strut Bracket-To-Upper Radiator Support Bolt | 21 (28) | |||
| Frame-To-Body Bolts | 133 (180) | |||
| Ground Wires & Nuts | 18 (25) | |||
| Lower Engine Mount Nuts (Left & Right Sides) | 35 (47) | |||
| Starter Motor Bolts | 37 (50) | |||
| Torque Converter Bolts | 46 (63) | |||
| Transaxle Brace Bolts | 32 (43) | |||
| Transaxle Bracket Bolts | 70 (95) | |||
| Transaxle Bracket-To-Transaxle Mount Upper Nuts | 35 (47) | |||
| Transaxle Mount-To-Transaxle Mount Frame Bracket Nuts | 35 (47) | |||
| Upper Engine Mount Nuts, Right | 35 (47) | |||

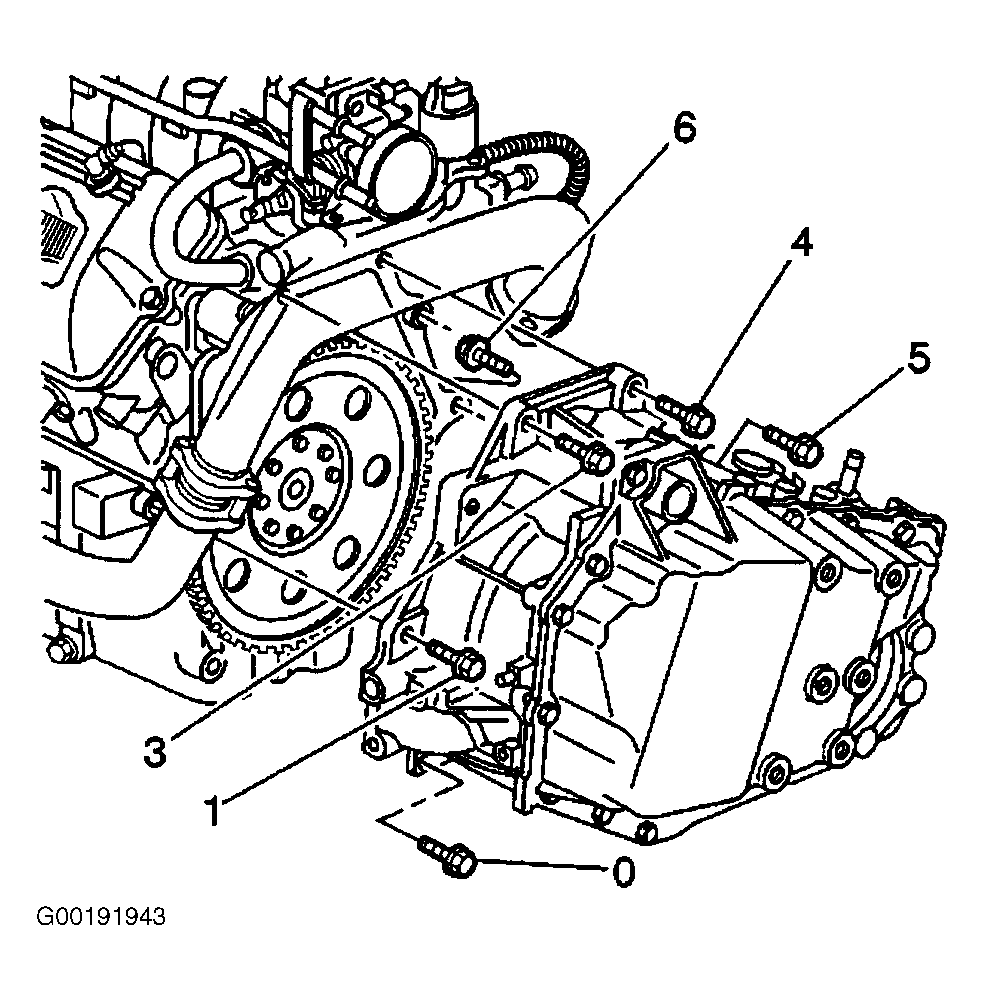

| Upper/Lower Transaxle Bolt (1) | ||||
| "0", "1", "3", "4", "6" | 55 (75) | |||
| "5" | 36 (50) | |||
| Wheel Lug Nuts | 100 (140) | |||
| INCH Lbs. (N.m) | ||||
| Air Cleaner Intake Duct Clamps | 31 (3.5) | |||
| Battery Terminal Cable Bolt | 133 (15) | |||
| Oil Cooler Hose/Pipe Bracket Bolt | 27 (4) | |||
| Torque Converter Cover Bolts | 89 (10) | |||
| Transaxle Fluid Filler Tube Bolt | 115 (13) | |||
| Vehicle Speed Sensor Bolt | 97 (11) | |||
|
||||
