Engine Mount Bracket (Right Side): Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

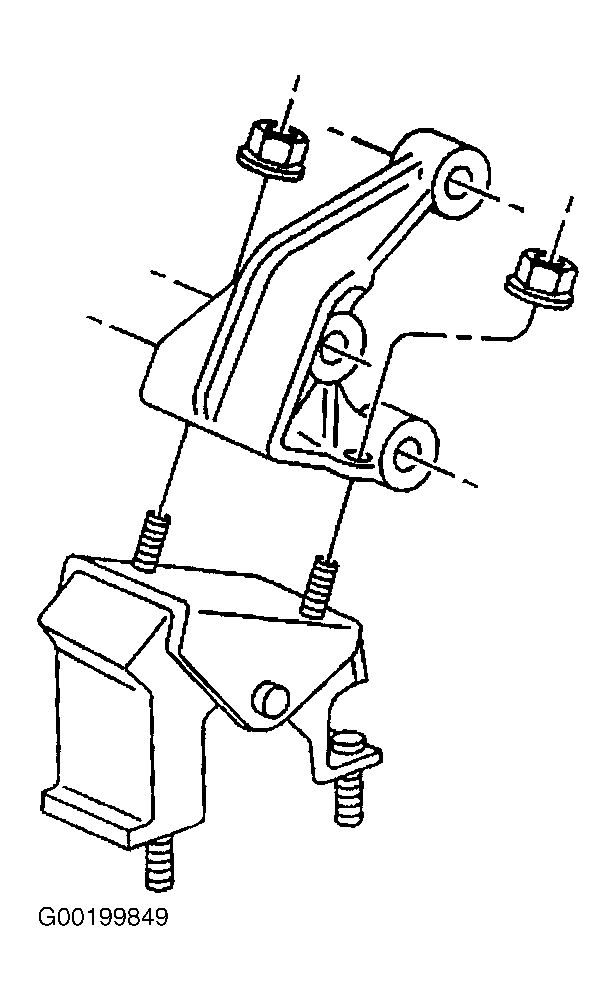

  1. Install the engine mount bracket to the right engine mount. See Figure .
  2. Install the upper engine mount nuts. See Figure . Tighten nuts to specification. See TORQUE SPECIFICATIONS  .

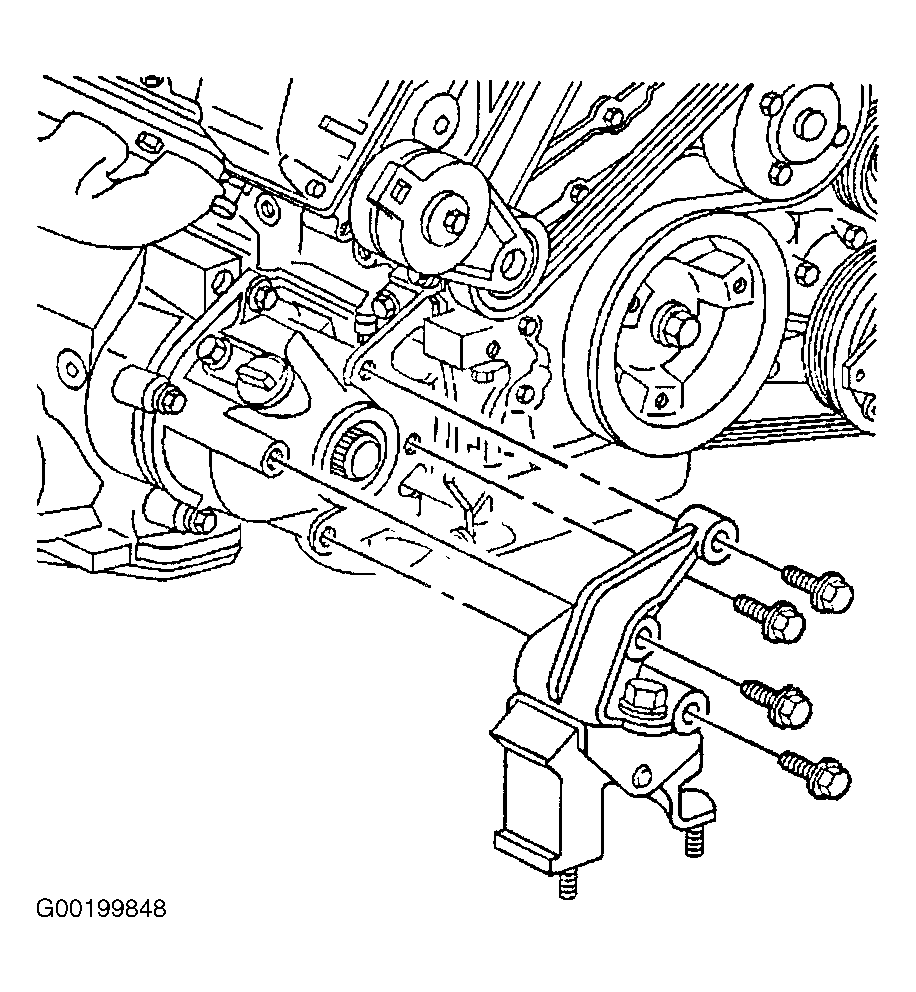

  3. Install the right engine mount bracket assembly. See ENGINE MOUNT (RIGHT SIDE)  .
