Connector Identification

Use illustrations to identify terminals and connectors referenced in testing. See Fig 1 -Fig 4

Fig 1: Identifying RTD Control Module Connector C1 (Brown - 24-Pin)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying RTD Control Module Connector C2 (Brown - 32-Pin)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Traction/Suspension Control Switch Connector (Black - 6-Pin)

Courtesy of GENERAL MOTORS CORP.

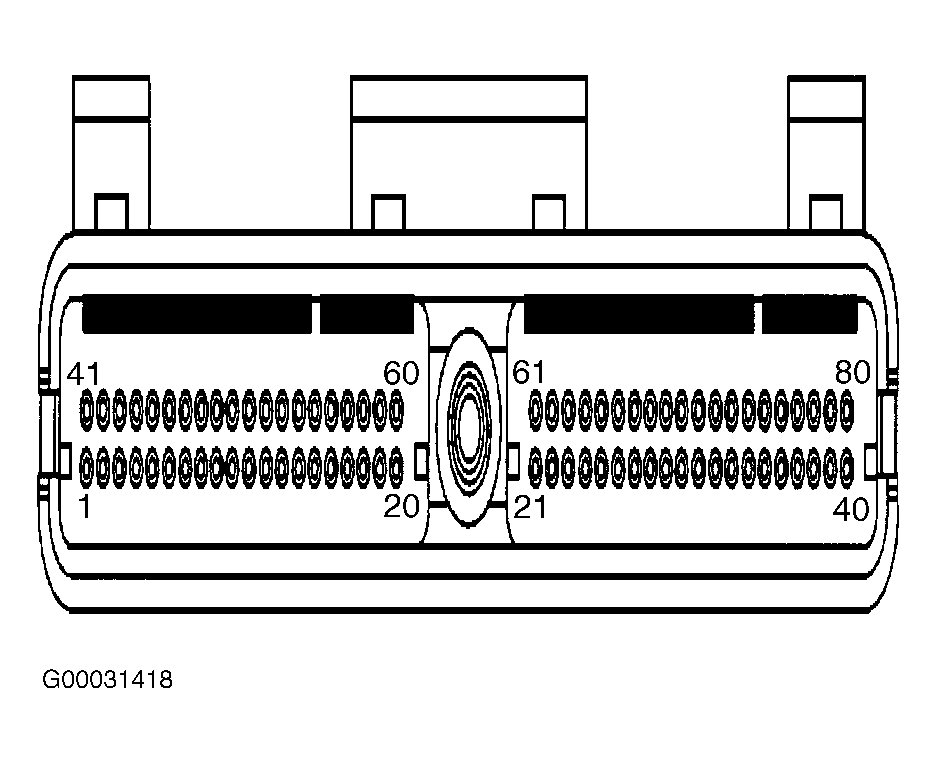

Fig 4: Identifying Power Control Module Connector C1 (Blue - 80-Pin)

Courtesy of GENERAL MOTORS CORP.
