Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .
  2. Disconnect the wire harness from the recirculation actuator.
  3. Remove the 2 screws holding the recirculation actuator housing to the HVAC module assembly.

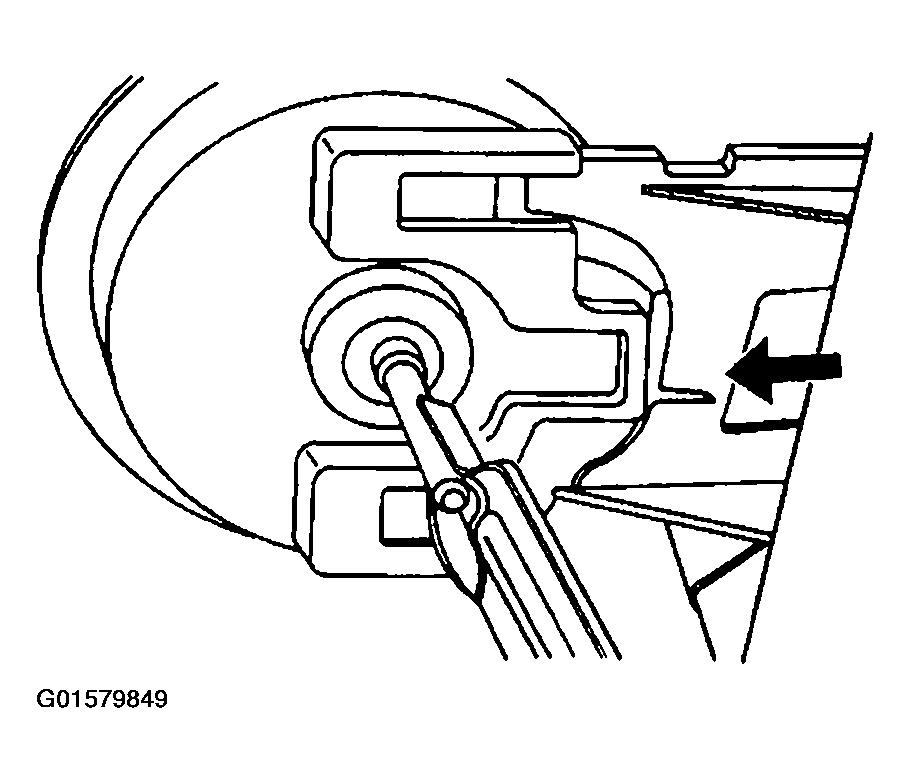

    Fig 1: Removing/Installing Recirculation Actuator
    G01579849Courtesy of GENERAL MOTORS CORP.
  4. Remove the recirculation actuator from the HVAC module assembly.

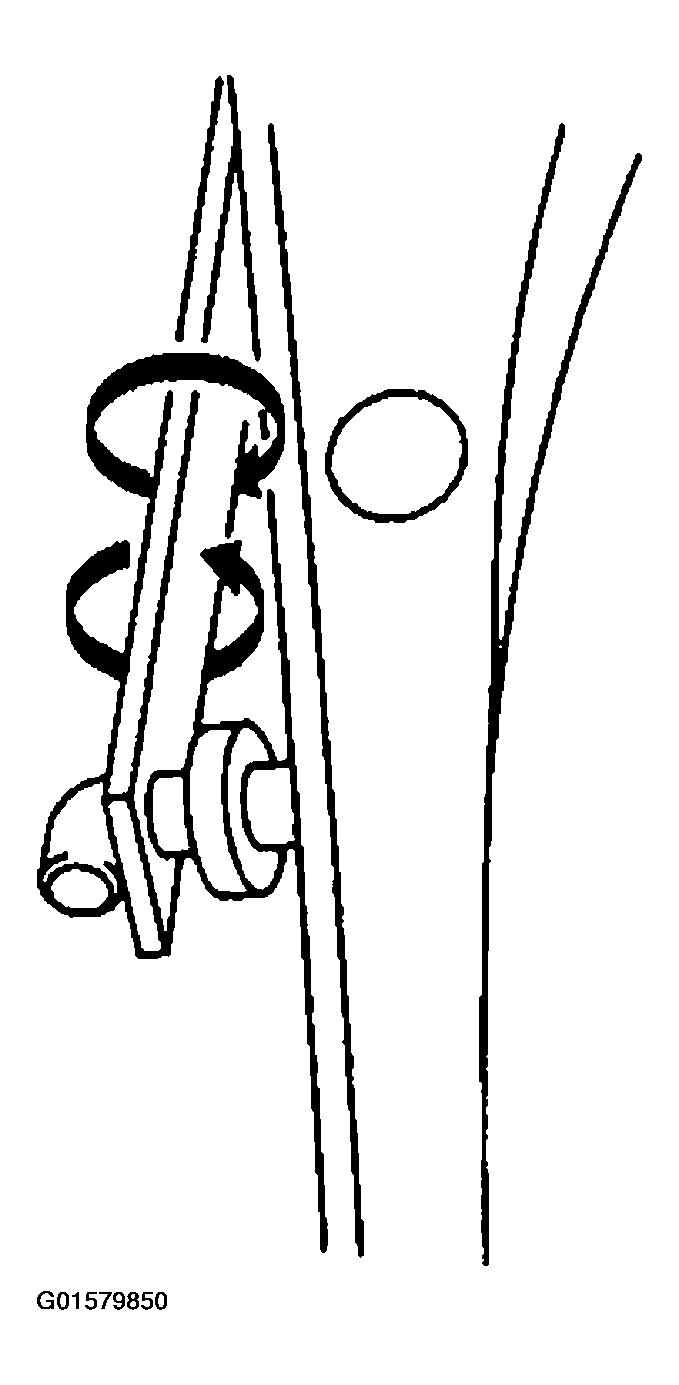

    Fig 2: Locating Recirculation Actuator Link
    G01579850Courtesy of GENERAL MOTORS CORP.
