Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

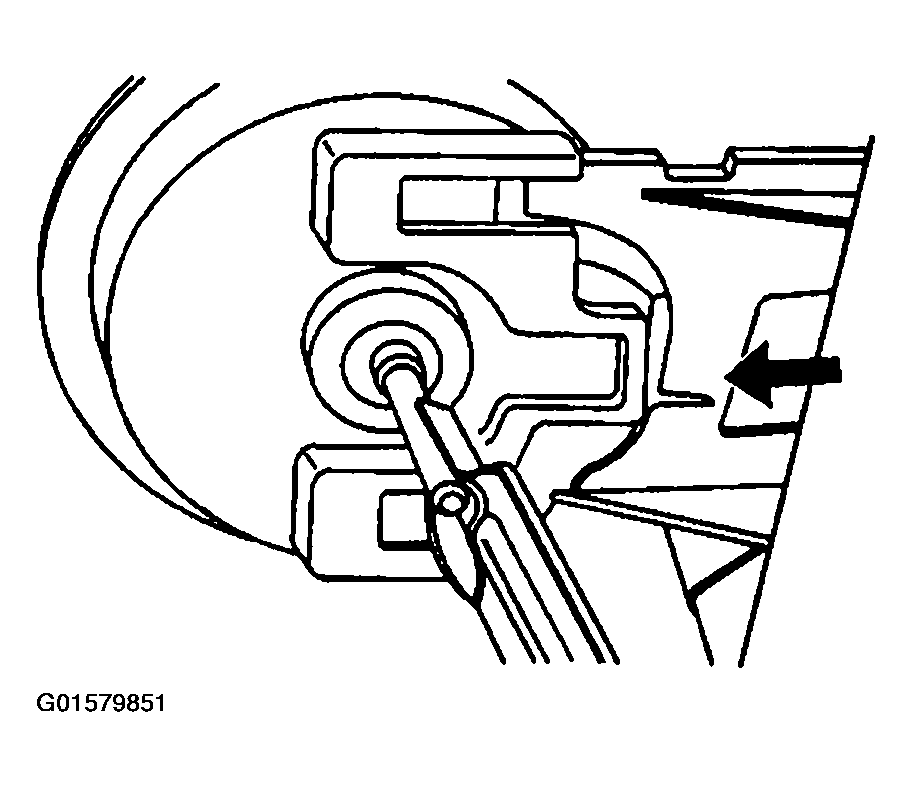

Fig 1: Removing/Installing Recirculation Actuator
G01579851Courtesy of GENERAL MOTORS CORP.
  1. Slide the recirculation actuator on to the module.
  2. Install the 2 screws holding the recirculation actuator housing to the HVAC module assembly.
  3. Connect the wiring harness to the recirculation actuator.
  4. Install the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT .
