Steering Shaft, Lower Bearing & Jacket - Assemble (Off Vehicle - Standard): Assembly

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the support mounting bracket (2).
  2. Lubricate the new support screws (1) with LOCTITE®.
  3. Install 4 new support screws (1). Tighten the screws to 8 N.m (71 lb in).
    Fig 1: Support Mounting Bracket
    G01583025Courtesy of GENERAL MOTORS CORP.
  4. Install the steering shaft assembly (2) into the steering column jacket assembly.

    Important:  The bearing retainer must be seated correctly on the steering shaft.

  5. Install the new bearing retainer (1).
  6. Install the adapter and bearing assembly (3).
  7. Install the lower bearing seat (4).
    NOTE: Important:  When installing, compress the lower bearing spring (5) to the length of 23.5 MM (.93 inches) .5 mm between the lower bearing seat (4) and the lower spring retainer (6).
  8. Install the lower bearing spring (5).
  9. Install the new lower spring retainer (6).

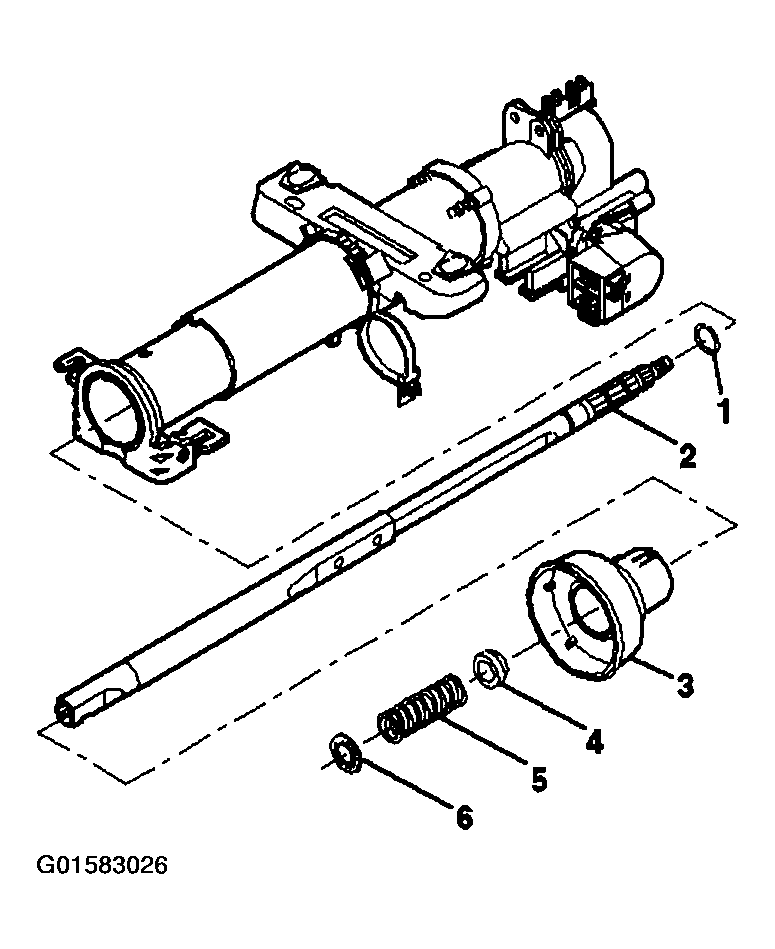

    Fig 2: Lower Steering column Components
    G01583026Courtesy of GENERAL MOTORS CORP.
  10. Install the steering column jacket. Refer to Steering Column Jacket - Assemble (Off Vehicle) .
  11. Enable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
