Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Sunfire and 2004 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with an automatic transmission, remove the exhaust manifold. Refer to Exhaust Manifold Removal in Engine Mechanical - 2.2L (L61).
  2. Drain the cooling system. Refer to Draining and Filling Cooling System (L61) .
  3. Remove the thermostat housing to water pump feed pipe bolts.

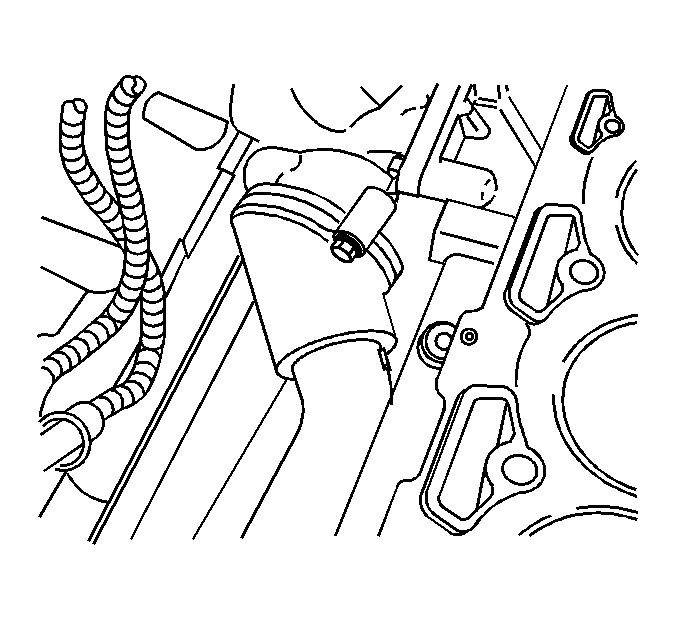

    Fig 1: View Of Water Pump Feed Pipe Bolts (2.2L - L61)
    GM789955Courtesy of GENERAL MOTORS CORP.
  4. Remove the thermostat housing to water pump feed pipe.
    Fig 2: Identifying Thermostat Housing
    GM789956Courtesy of GENERAL MOTORS CORP.
    5. Fig 3: Exploded View Of Thermostat (2.2L - L61)
    GM951651Courtesy of GENERAL MOTORS CORP.
  5. Remove the thermostat.
