Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the outlet heater hose (1) to the outlet port of the heater core.
  2. Lower the vehicle.
  3. Connect the outlet heater hose to the outlet port of the engine.

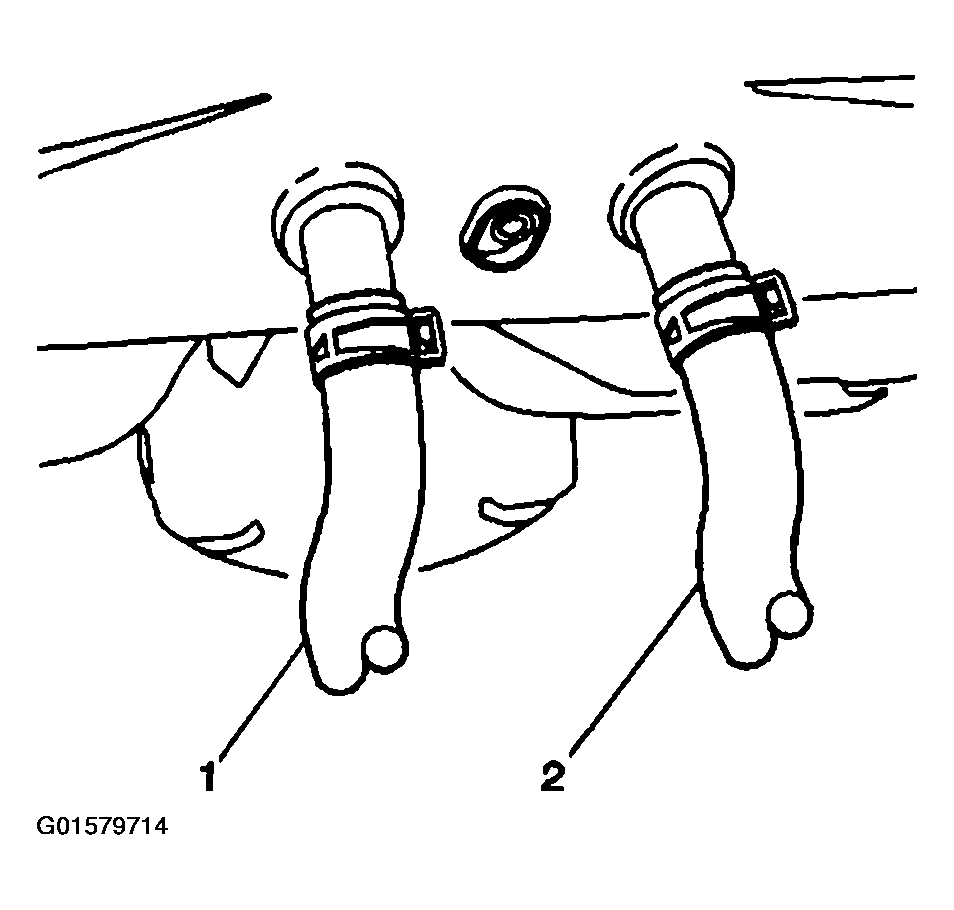

    Fig 1: Identifying Heater Hose Connections At Heater Core
    G01579714Courtesy of GENERAL MOTORS CORP.
  4. Use the J 38185  in order to reposition the heater hose clamps.
  5. Fill the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM (L61) in Engine Cooling.
