Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the inlet heater hose (2) to the inlet port of the heater core.

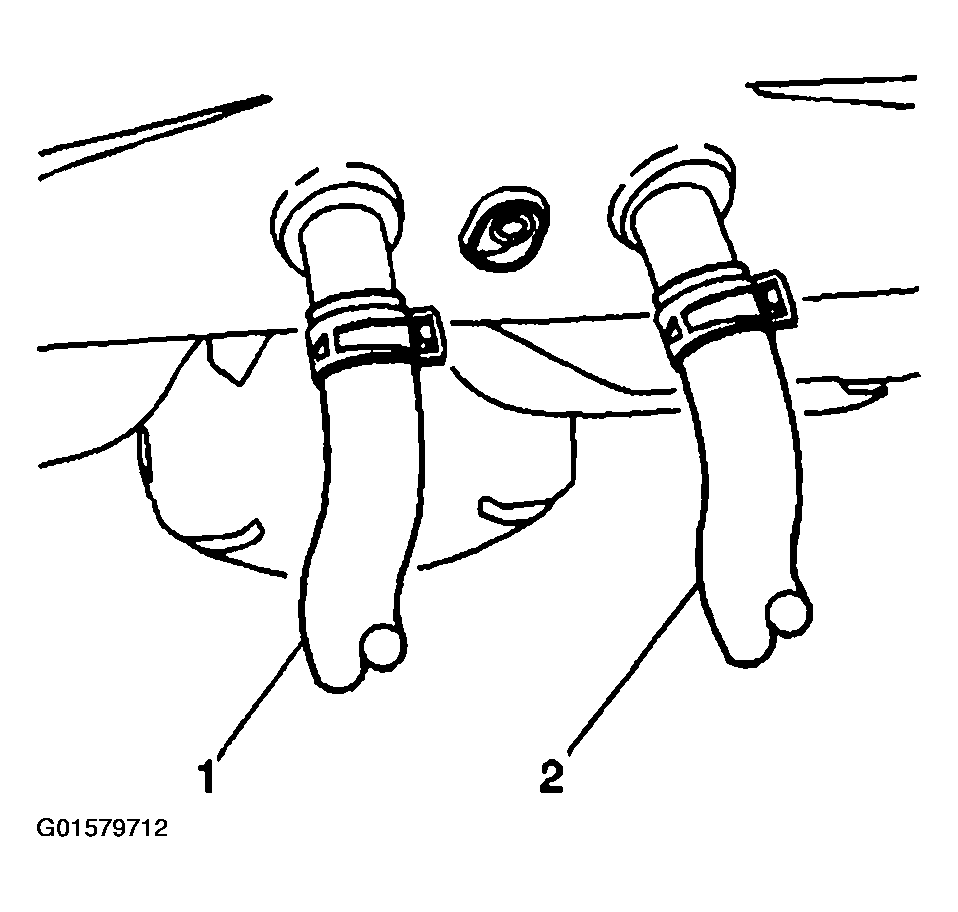

    Fig 1: Identifying Heater Hose Connections At Heater Core
    G01579712Courtesy of GENERAL MOTORS CORP.
  2. Lower the vehicle.
  3. Connect the inlet heater hose to the inlet port of the engine.
  4. Use the J 38185  in order to reposition the heater hose clamps.
  5. Fill the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM (L61) in Engine Cooling.
