Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. With a suitable tool release the retaining tabs through the vanes of the HVAC air outlet deflector.

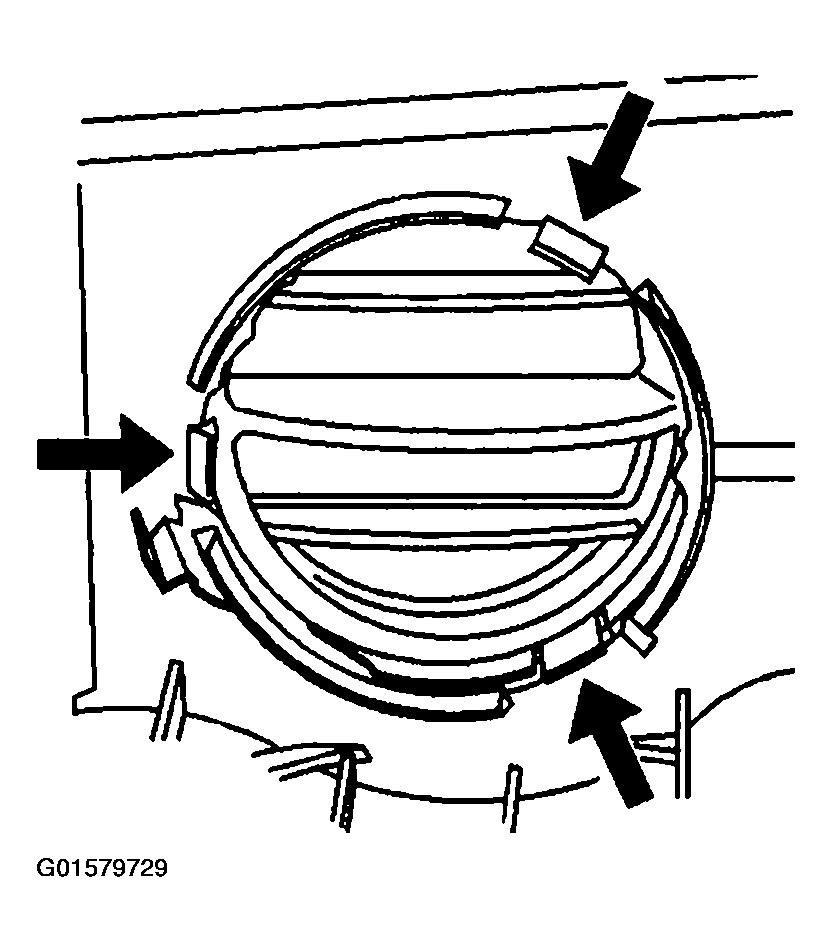

    Fig 1: Locating Instrument Panel Air Deflector Retaining Tabs (Pontiac)
    G01579729Courtesy of GENERAL MOTORS CORP.
  2. Pull the air deflector outlet out of the upper trim pad.

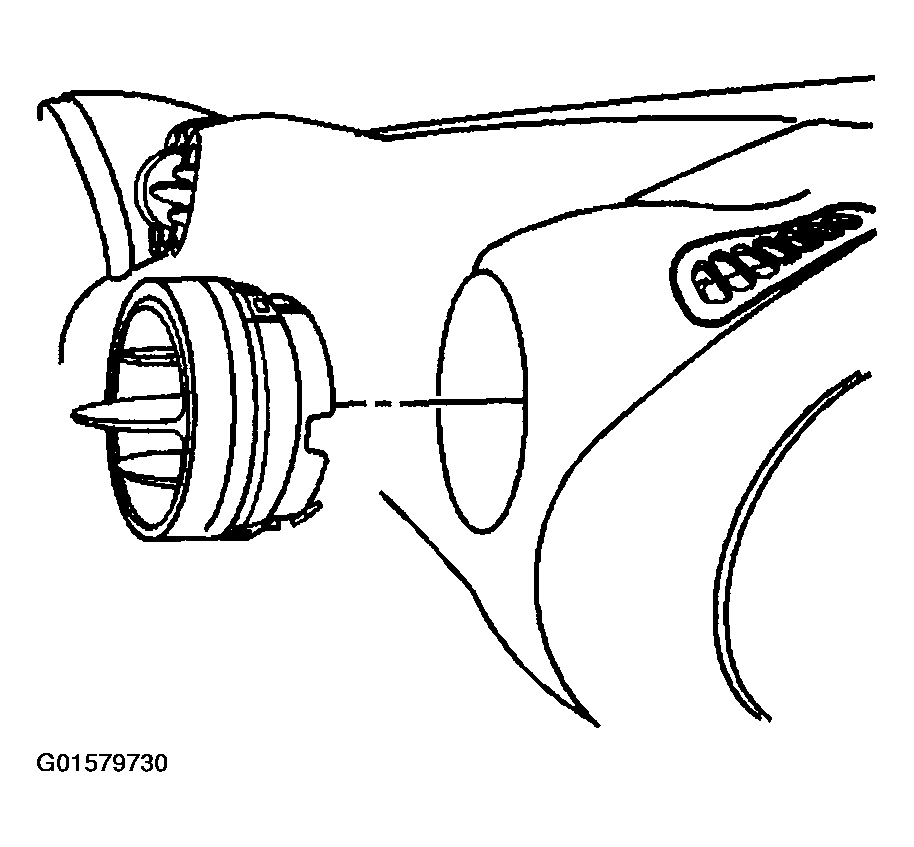

Fig 2: Removing/Installing Instrument Panel Air Deflector (Pontiac)
G01579730Courtesy of GENERAL MOTORS CORP.
