Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Important: The instrument panel (I/P) trim pad should be at room temperature before removal of the air I/P outlet deflector. This will allow the I/P trim pad to be more pliable during removal of the air deflector outlet.

Grasp the center of the air deflector outlet.
Position the tip of a flat-bladed tool between the air deflector housing and the air deflector outlet. With the tip of the flat-bladed tool, gently push the outlet outward from the housing disengaging the retainer.

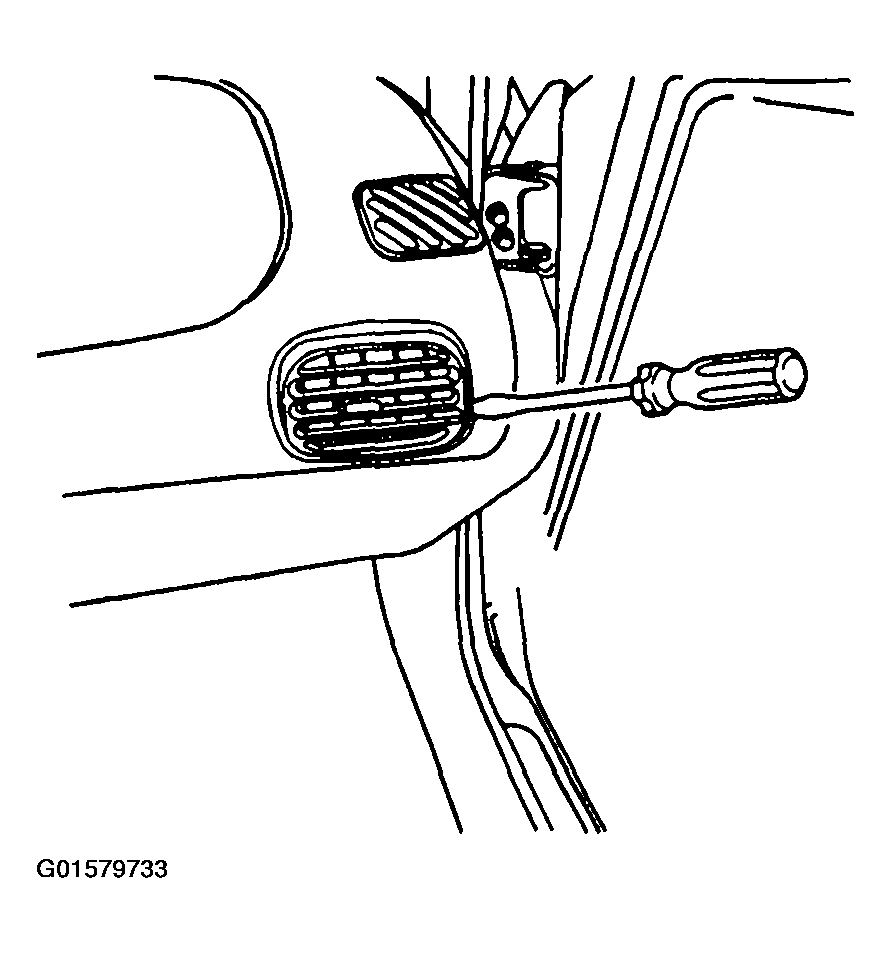

Fig 1: Releasing Right Side Of Instrument Panel Air Deflector (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
On the opposite side of the deflector, position the tip of a flat-bladed tool between the air deflector housing and the air deflector outlet.
With the tip of the flat-bladed tool, gently push the outlet outward from the housing disengaging the retainer.

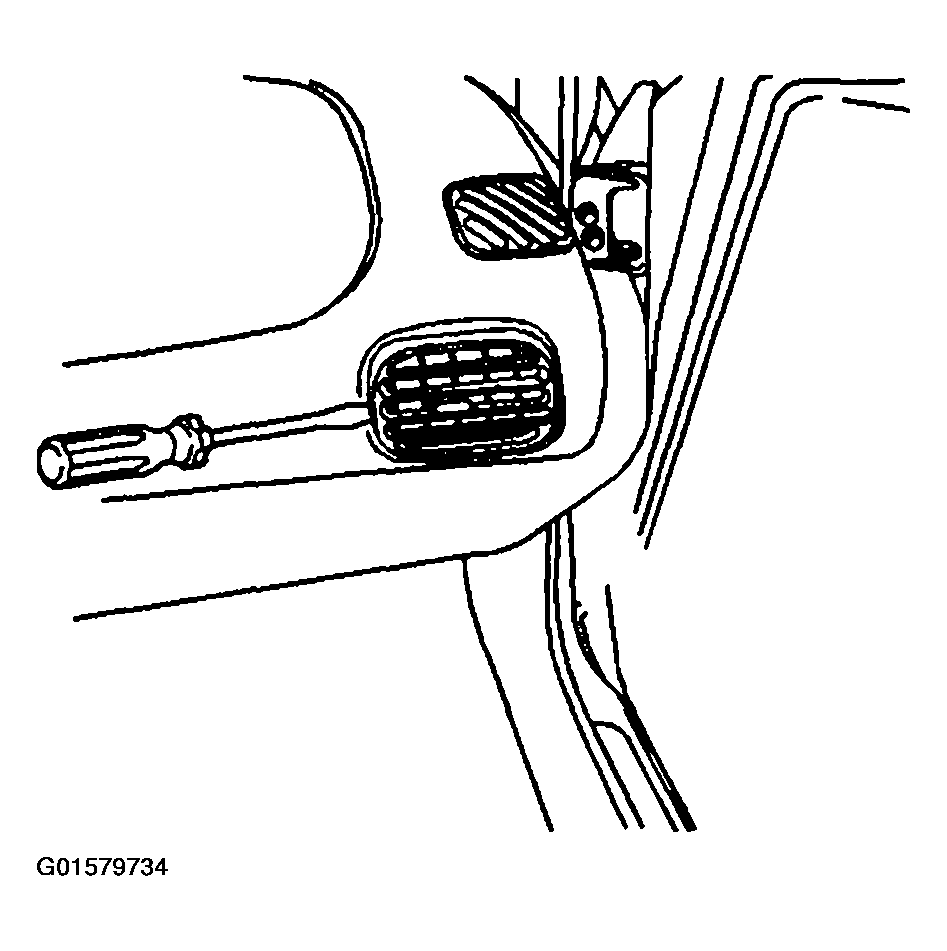

Fig 2: Releasing Left Side Of Instrument Panel Air Deflector (Chevrolet)
Courtesy of GENERAL MOTORS CORP.
Remove the air deflector outlet from the housing in the I/P.
