Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the air deflector outlet into the housing in the I/P.

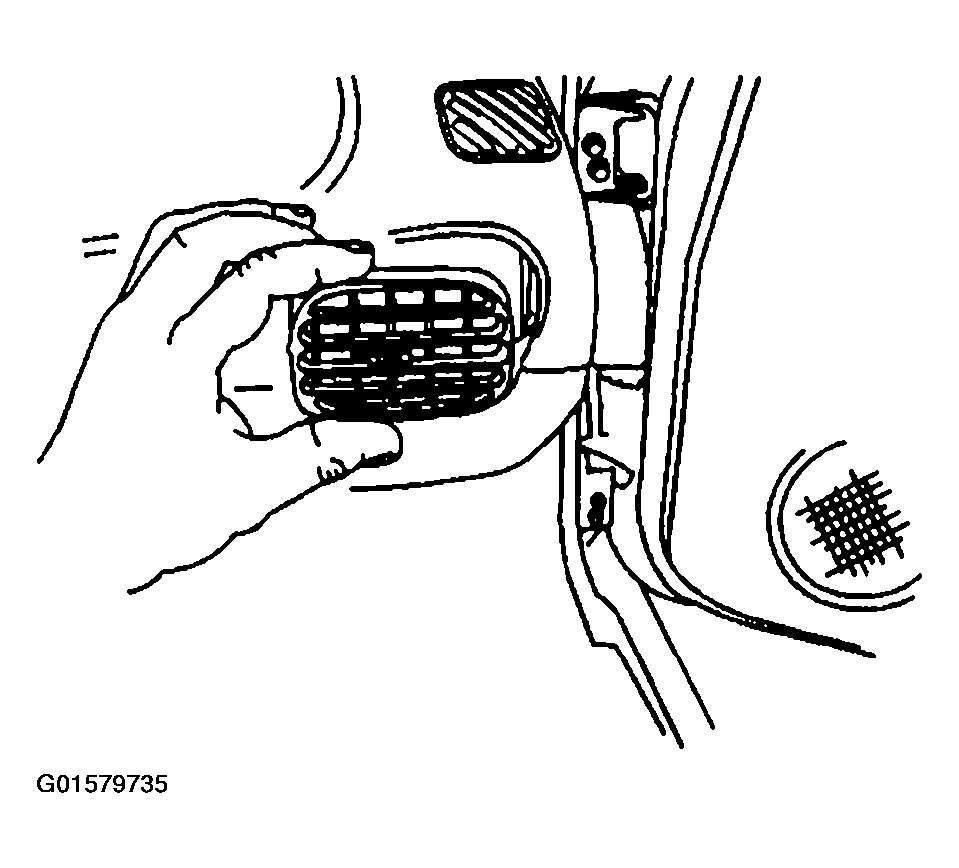

    Fig 1: Installing Instrument Panel Air Deflector (Chevrolet)
    G01579735Courtesy of GENERAL MOTORS CORP.
  2. Press the air outlet deflector into the housing until fully engaged.
  3. Inspect the air deflector outlet for proper movement.

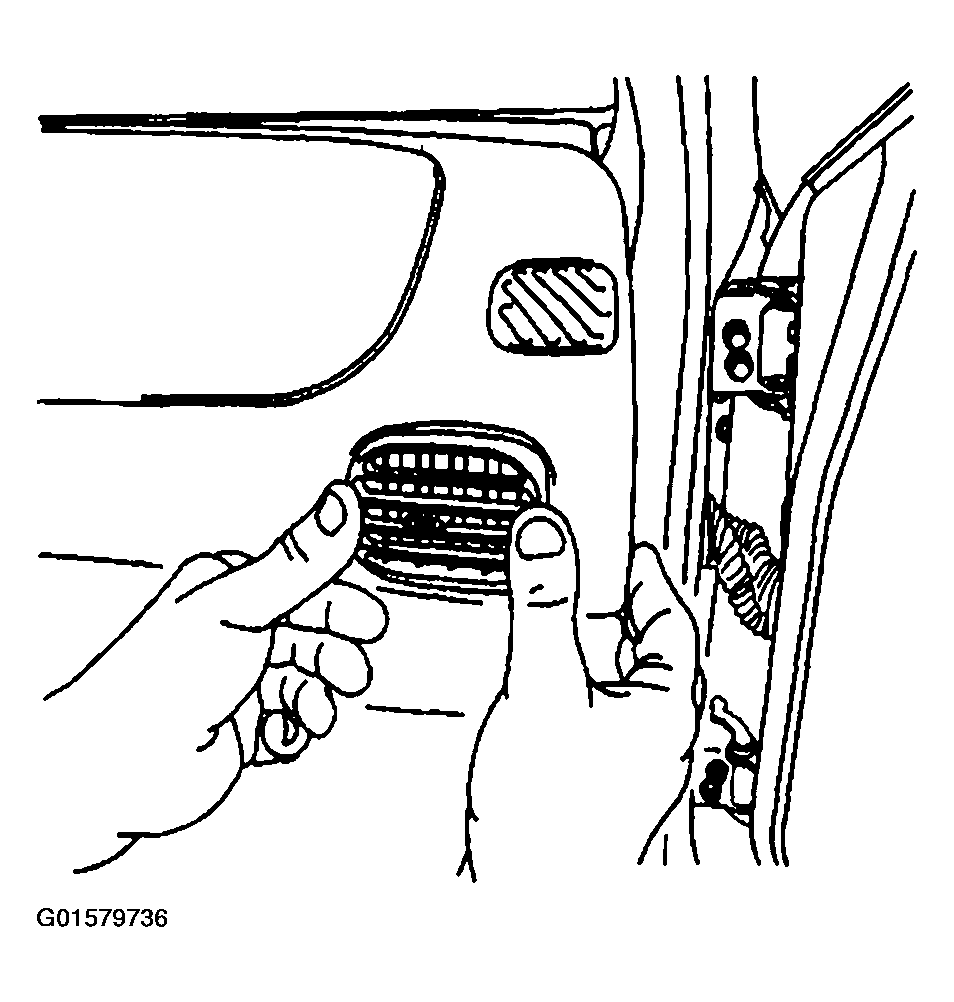

    Fig 2: Inspecting Instrument Panel Air Deflector Movement (Chevrolet)
    G01579736Courtesy of GENERAL MOTORS CORP.
