Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Remove the hood latch support. Refer to HOOD LATCH SUPPORT REPLACEMENT .
  3. Remove the nut holding the compressor hose assembly to the condenser.
  4. Remove the compressor hose assembly from the condenser.
  5. Remove and discard the O-ring seal.
  6. Remove the evaporator tube from the condenser. Refer to Evaporator Tube Replacement .
  7. Remove the radiator air upper seal from the radiator.
  8. Remove the condenser to radiator bolts (3).

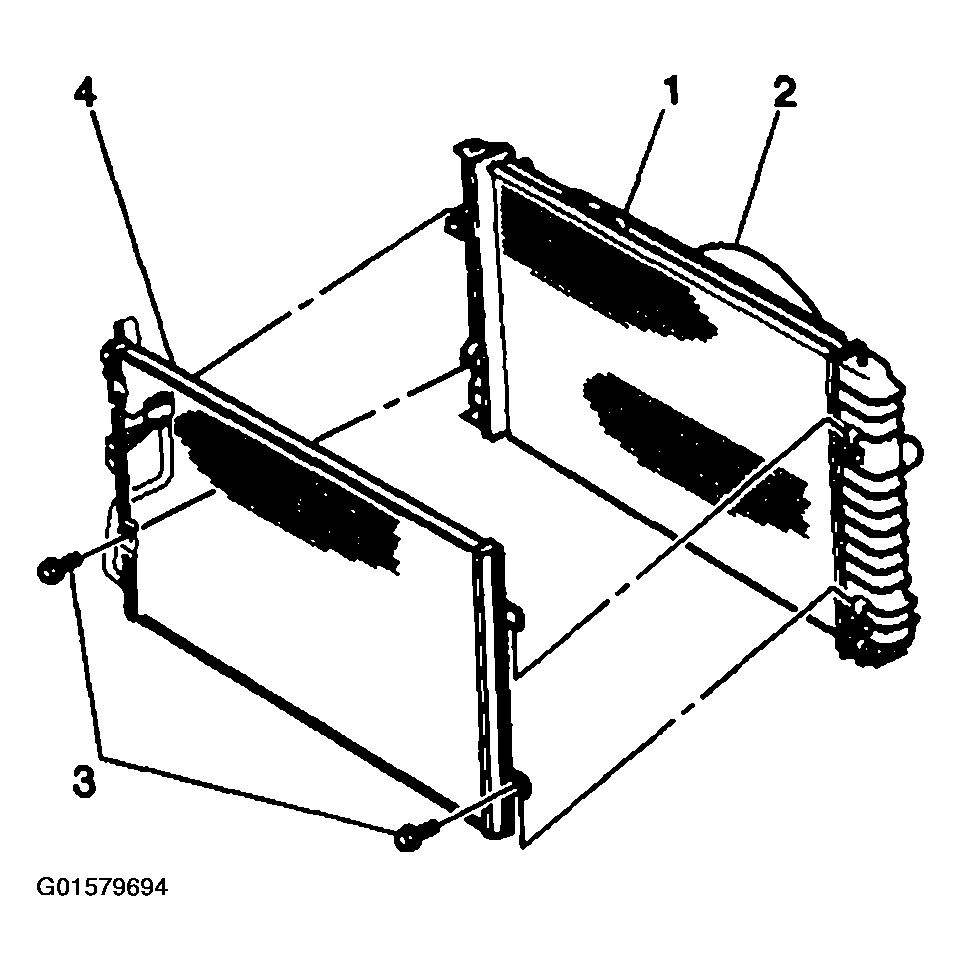

    Fig 1: Removing/Installing Condenser
    G01579694Courtesy of GENERAL MOTORS CORP.
  9. Lift the condenser tabs from the clips on the radiator.
