Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

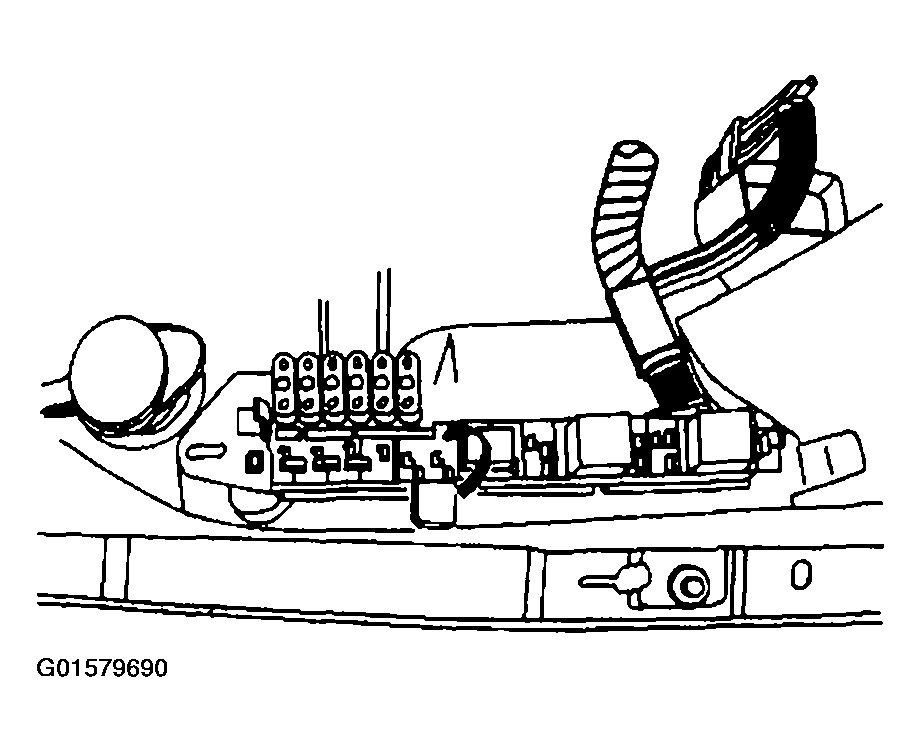

  1. Install the A/C compressor control relay to the electrical center. See Figure.
  2. Install the electrical center cover.
