Compressor Pressure Relief Valve Install (CVC - Direct Mount)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the pressure relief valve seat area on the A/C compressor.
  2. Lubricate the O-ring of the new pressure relief valve with clean refrigerant oil.
    3. NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

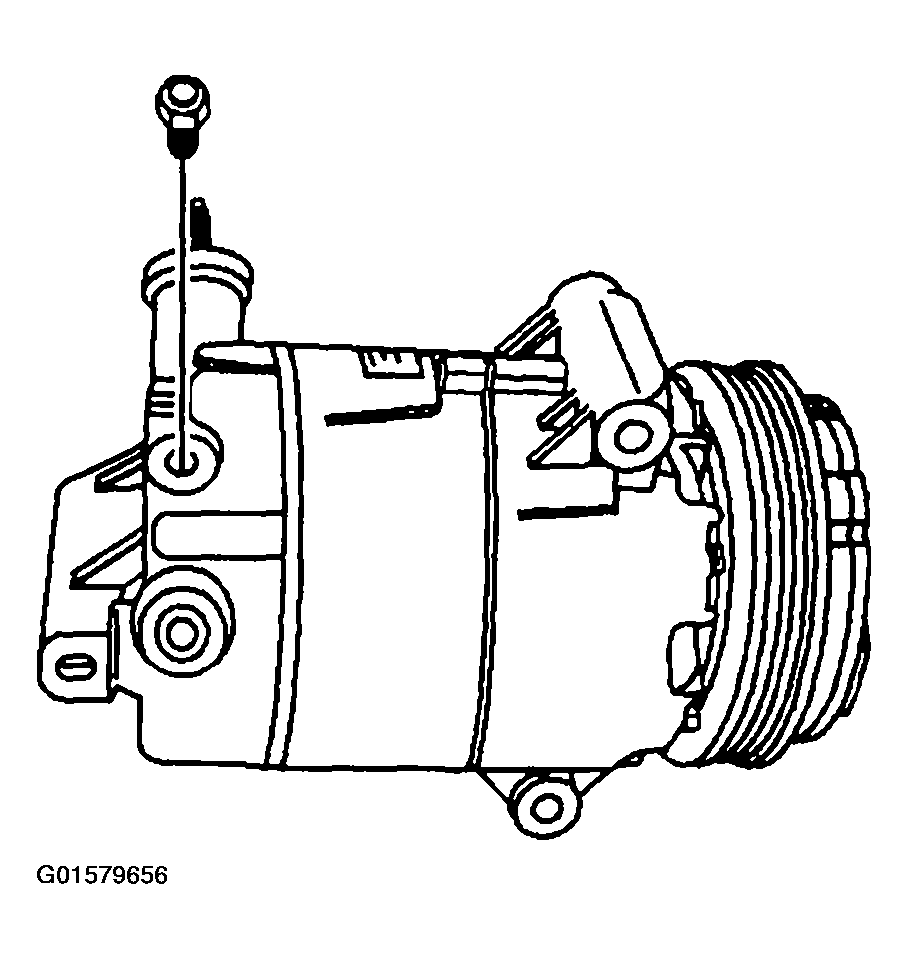

    Fig 1: Installing Pressure Relief Valve
    G01579656Courtesy of GENERAL MOTORS CORP.
  3. Install the new pressure relief valve into the A/C compressor.

    Tighten

    Tighten the pressure relief valve to 7 N.m (60 lb in).
