Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Raise and support the vehicle.
  3. Remove the compressor hose assembly to the compressor bolt.
  4. Remove the compressor hose assembly from the compressor.
  5. Remove and discard the sealing washers.
  6. Lower the vehicle.
  7. Remove the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
  8. Reposition the cruise control module out of the way, if equipped.
  9. Remove the two nuts holding the bracket for the PCM Module. Position the bracket and module out of the way.
  10. Disconnect the refrigerant pressure sensor electrical connector.
  11. Remove the nut holding the compressor hose assembly fitting to the condenser.
  12. Remove the compressor hose assembly from the condenser.
  13. Remove and discard the O-ring seal.
  14. Remove the fitting nut for the compressor hose assembly to accumulator.
  15. Remove the compressor hose assembly from the accumulator (1).

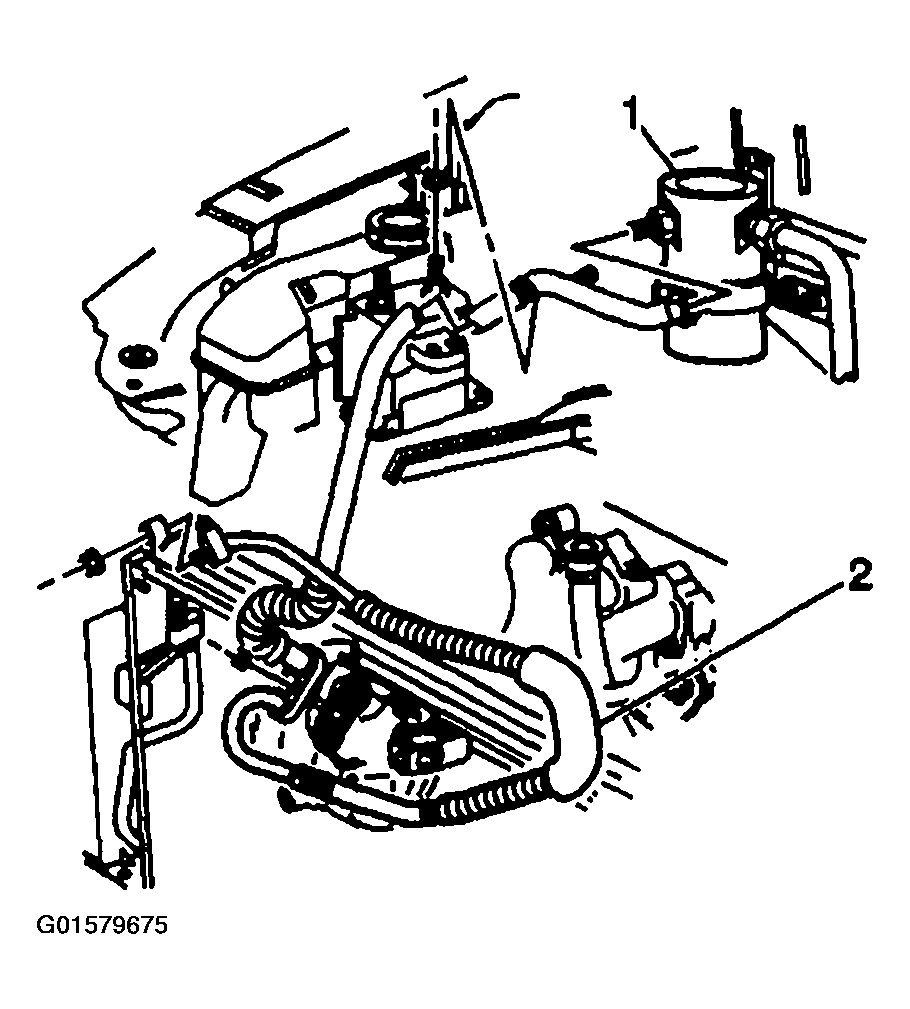

    Fig 1: Removing/Installing Compressor Hose Assembly (L61)
    G01579675Courtesy of GENERAL MOTORS CORP.
  16. Remove and discard the O-ring seals.
  17. Remove the compressor hose assembly (2) from the vehicle.
