Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully clean the clutch plate bolt threads with a M6x1.0 tap. Carefully blow out debris with compressed air.
  2. Install the compressor clutch coil to the compressor.

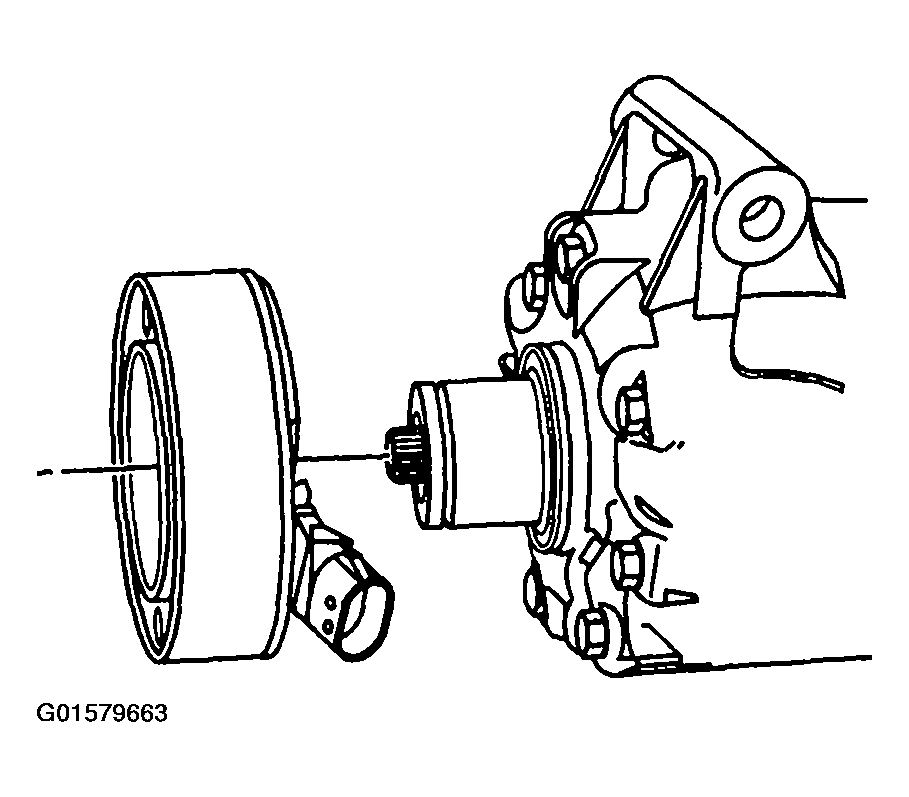

    Fig 1: Installing Compressor Clutch Coil
    G01579663Courtesy of GENERAL MOTORS CORP.
  3. Install the compressor clutch coil snap ring using the J 6083.

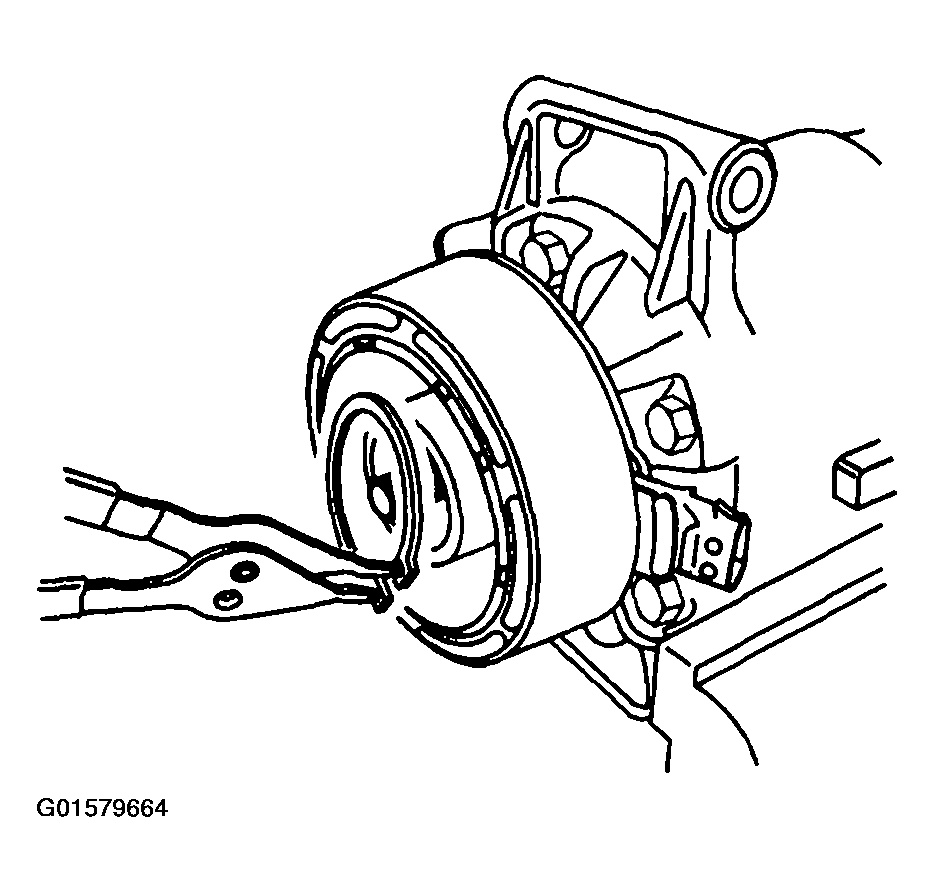

    Fig 2: Installing Compressor Clutch Coil Snap Ring
    G01579664Courtesy of GENERAL MOTORS CORP.
  4. Install the compressor pulley to the compressor.

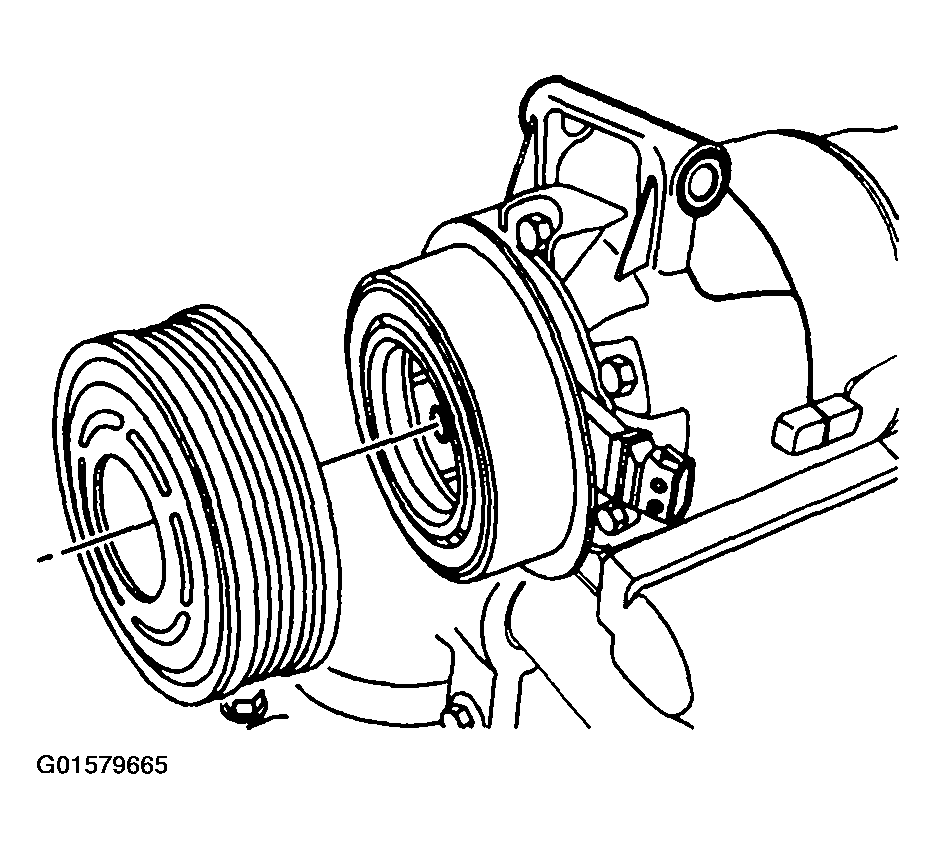

    Fig 3: Installing Compressor Pulley
    G01579665Courtesy of GENERAL MOTORS CORP.
  5. Install the compressor pulley snap ring using the J 6083.

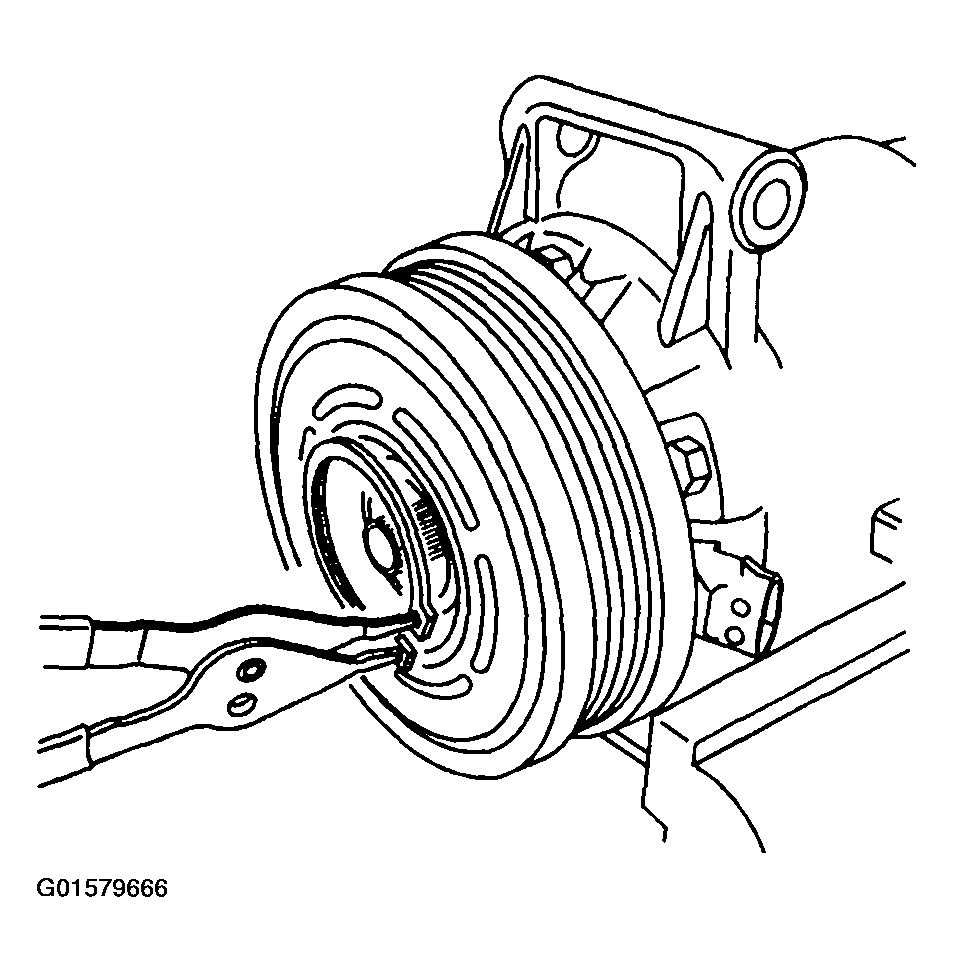

    Fig 4: Installing Compressor Pulley Snap Ring
    G01579666Courtesy of GENERAL MOTORS CORP.
  6. Place a small amount of oil on the 0.4 mm (0.016 in) air gap shim and place inside the clutch drive plate.
  7. Install the compressor clutch plate to the compressor.

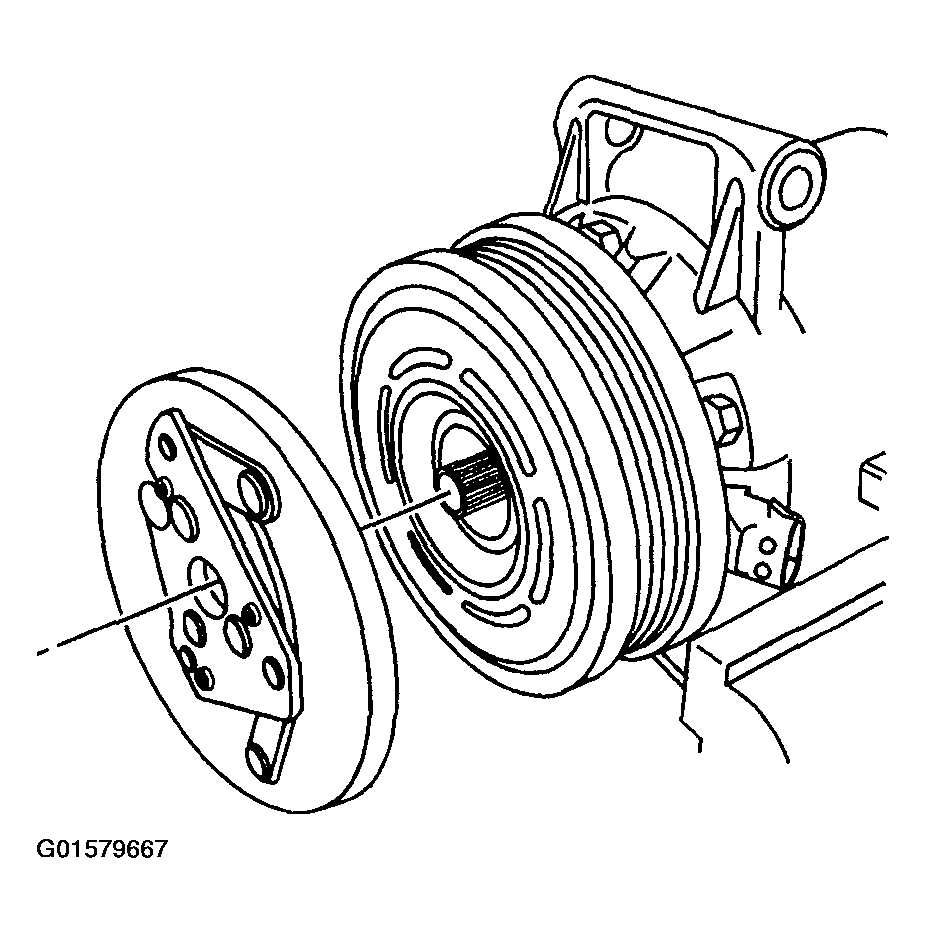

    Fig 5: Installing Compressor Clutch Plate
    G01579667Courtesy of GENERAL MOTORS CORP.

    Important:  Make certain that the drive plate does not drag against the pulley when the pulley is rotated.

  8. Measure the air gap between the pulley and the drive plate. Adjust the shims to achieve a 0.3-0.6 mm (0.012-0.024 in) air gap.
    Fig 6: Measuring Air Gap Between Pulley & Drive Plate
    G01579668Courtesy of GENERAL MOTORS CORP.

    Important:  Make certain that the new drive plate bolt has colored adhesive on at least 5 threads.

  9. NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

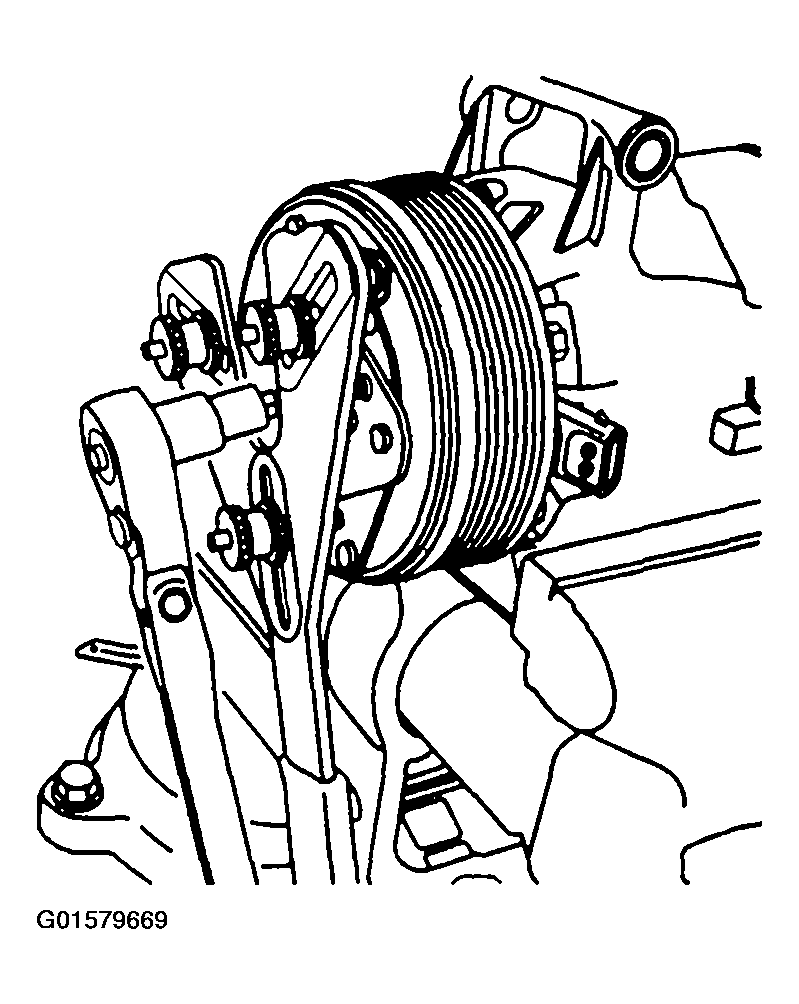

    Fig 7: Installing Clutch Drive Plate Bolt
    G01579669Courtesy of GENERAL MOTORS CORP.
  10. Install the clutch drive plate bolt.
  11. Tighten the compressor clutch drive plate bolt. Use the J 37872  to hold the compressor clutch plate from turning.

    Tighten

    Tighten the bolt to 12 N.m (9 lb ft).

  12. Install the compressor. Refer to Compressor Replacement .
  13. Leak test the fittings using the J 39400-A.
