Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connections from the blower motor.
  2. Remove the blower motor retaining heat stakes with a chisel or a screwdriver.

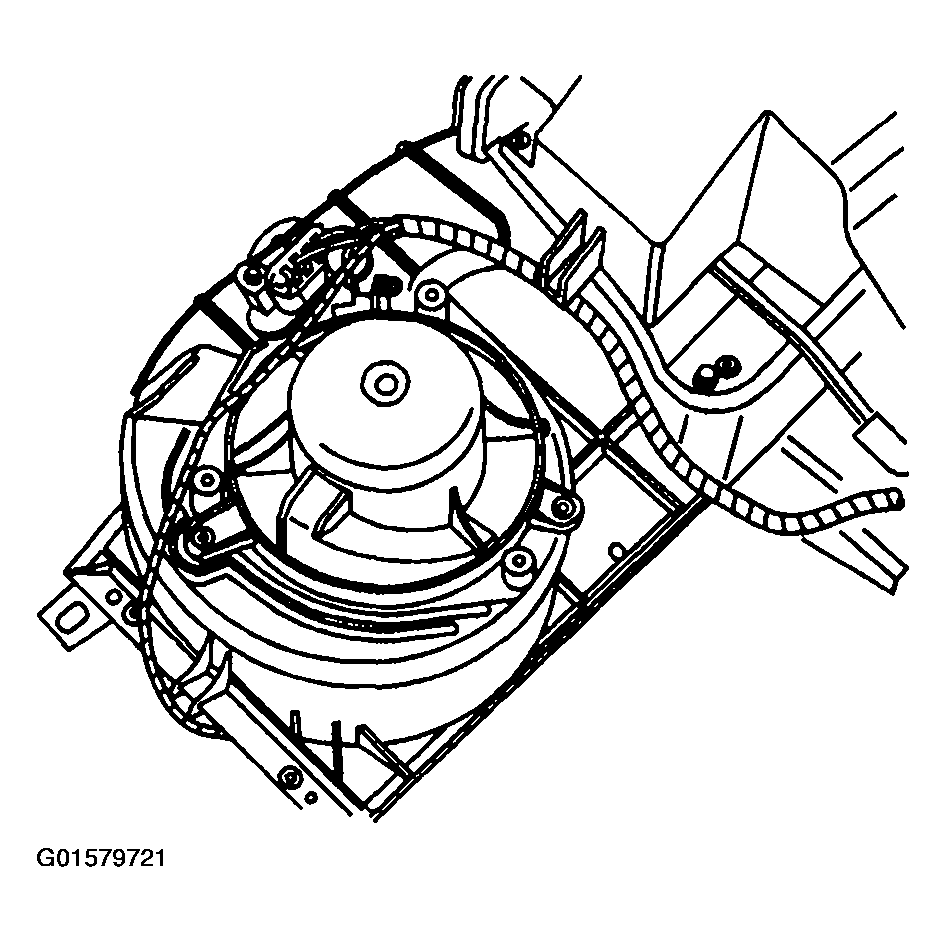

    Fig 1: View Of Blower Motor
    G01579721Courtesy of GENERAL MOTORS CORP.
  3. Remove the blower motor.
Fig 2: Removing/Installing Blower Motor
G01579722Courtesy of GENERAL MOTORS CORP.
