Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
  2. Remove the heat stakes and the screws from the upper case assembly.

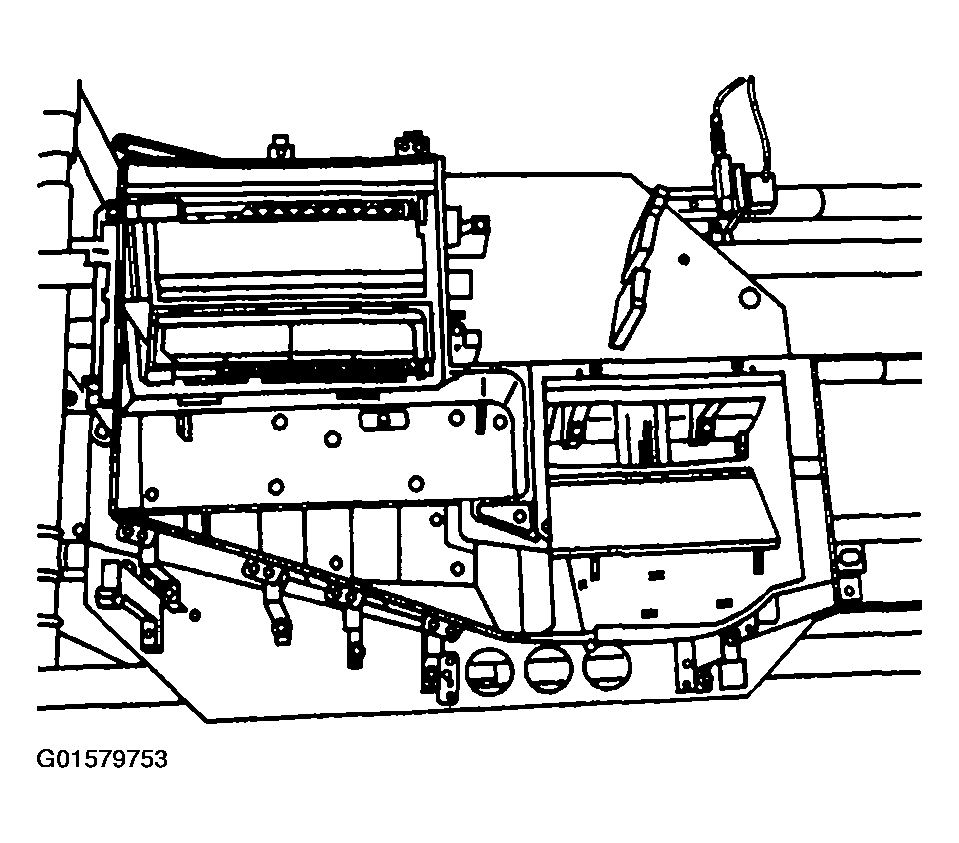

    Fig 1: Removing/Installing HVAC Module Upper Case Assembly
    G01579753Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper case assembly.
  4. Disconnect the air temperature cable from the temperature door.

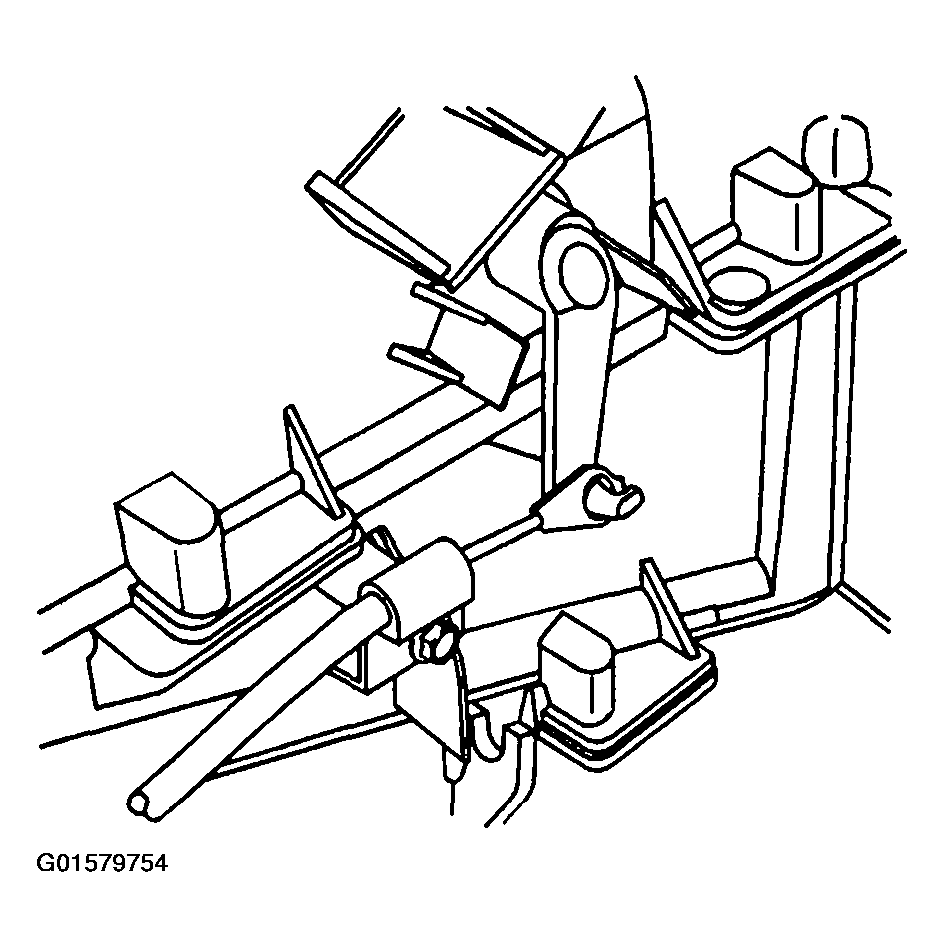

    Fig 2: Locating Air Temperature Cable
    G01579754Courtesy of GENERAL MOTORS CORP.
  5. Remove the air temperature door from the HVAC module assembly. Complete the following steps:
    1. 5.1. Slide the door to the right.
    2. 5.2. Pull down on the door in order to remove the link end of the door.

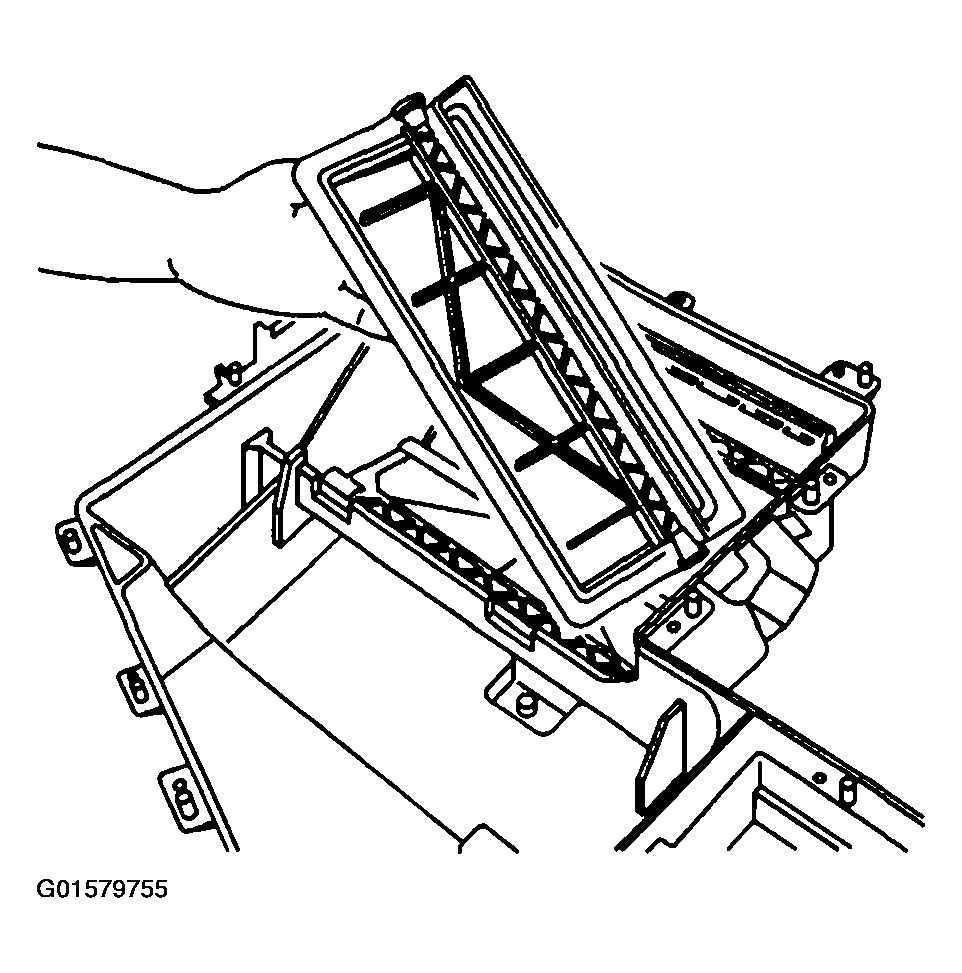

    Fig 3: Removing/Installing Air Temperature Door From HVAC Module
    G01579755Courtesy of GENERAL MOTORS CORP.
