Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages and Console.
  2. Reposition the floor carpeting to the rear of the front seat.
  3. Remove the rear floor ducts (3).

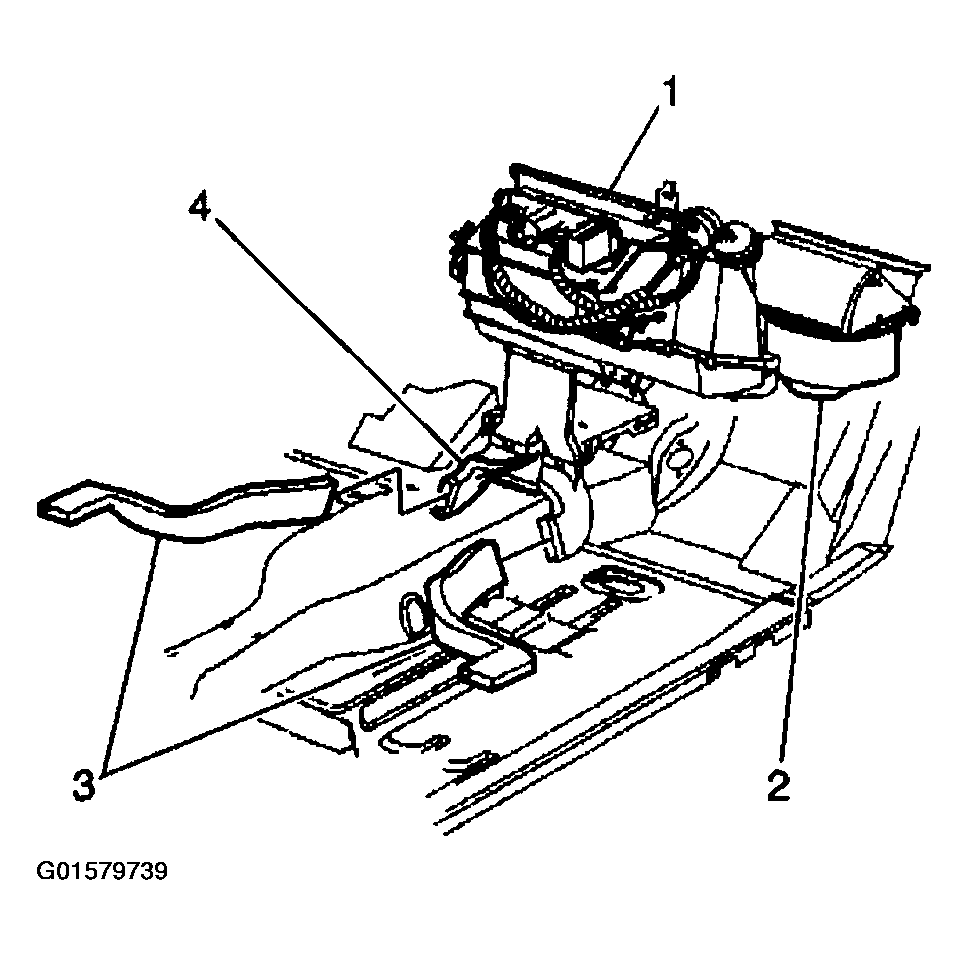

    Fig 1: Removing/Installing Air Outlet - Rear Floor
    G01579739Courtesy of GENERAL MOTORS CORP.
