Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages and Console.
  2. Remove the closeout cover from the air outlet.
  3. Reposition the floor carpet aside in order to access the floor outlet duct connections.
  4. Remove the floor outlet ducts from the heater outlet cover.
  5. Remove the floor outlet ducts.

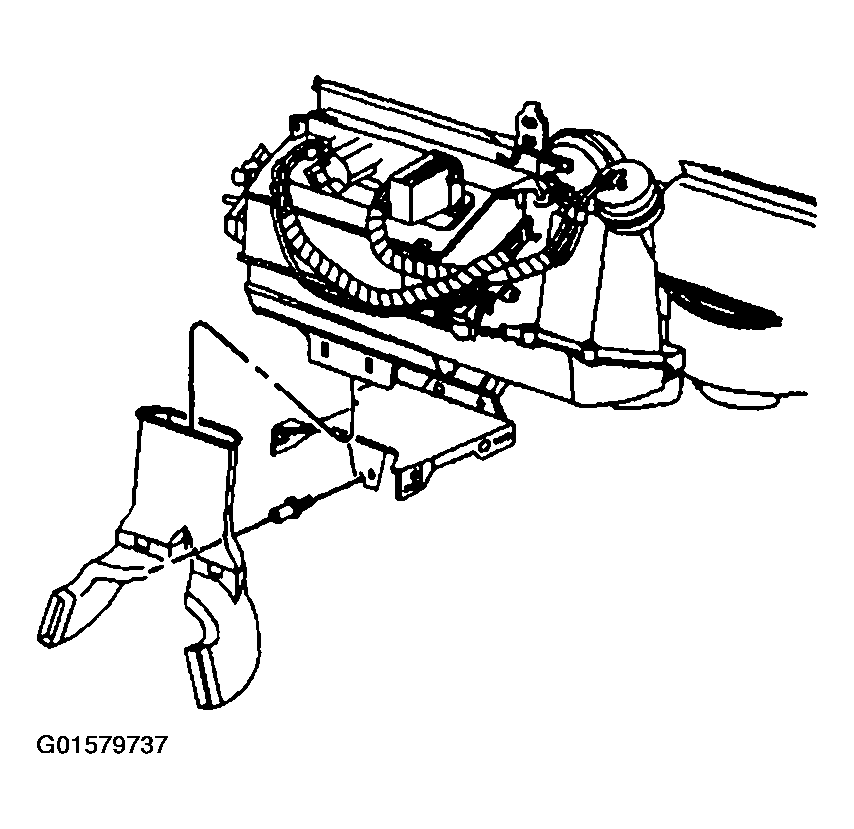

    Fig 1: Removing/Installing Floor Air Outlet Ducts
    G01579737Courtesy of GENERAL MOTORS CORP.
