Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) (CHEVROLET) or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) (PONTIAC) in Instrument Panel, Gages and Console.
  2. Disconnect the right side window defroster duct from the HVAC module assembly.

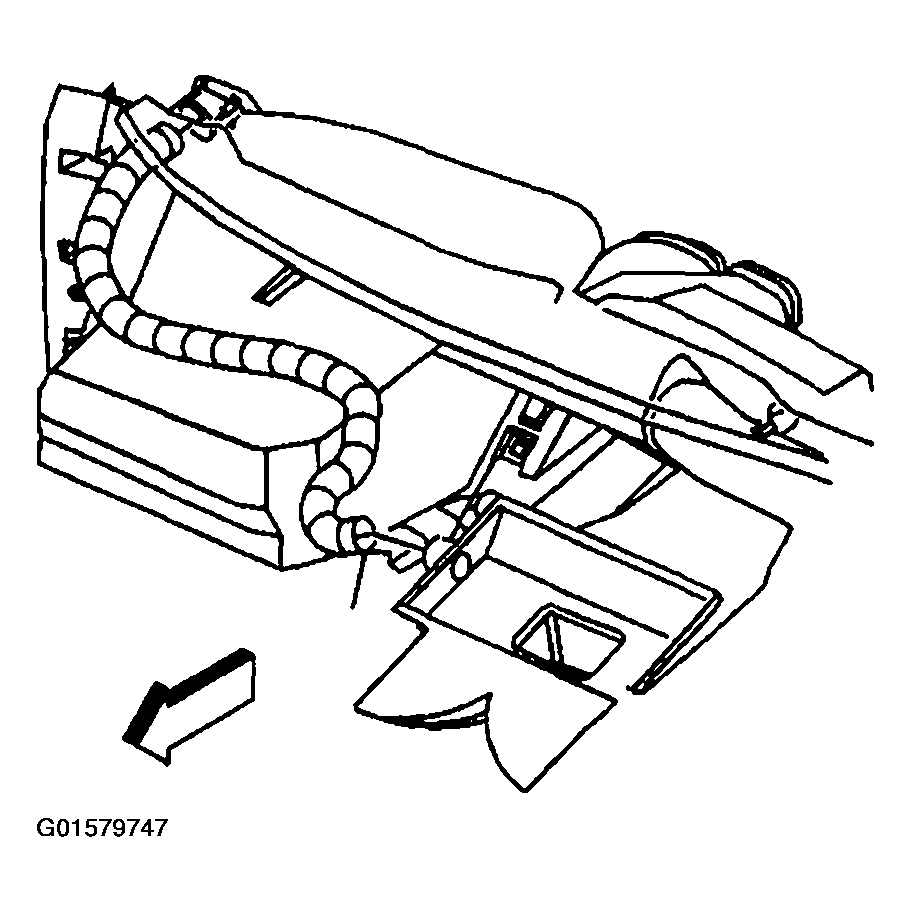

    Fig 1: Removing/Installing Air Outlet Duct - Right Defogger (Pontiac)
    G01579747Courtesy of GENERAL MOTORS CORP.
  3. Remove the defroster duct from the clip.
  4. Disconnect the defroster duct from the right side window defogger adapter.
  5. Remove the defroster duct from the I/P carrier.
  6. Remove the right side window defogger adapter.
