Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) (CHEVROLET) or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) (PONTIAC) in Instrument Panel, Gages and Console.
  2. Disconnect the left side window defroster duct from the HVAC module.

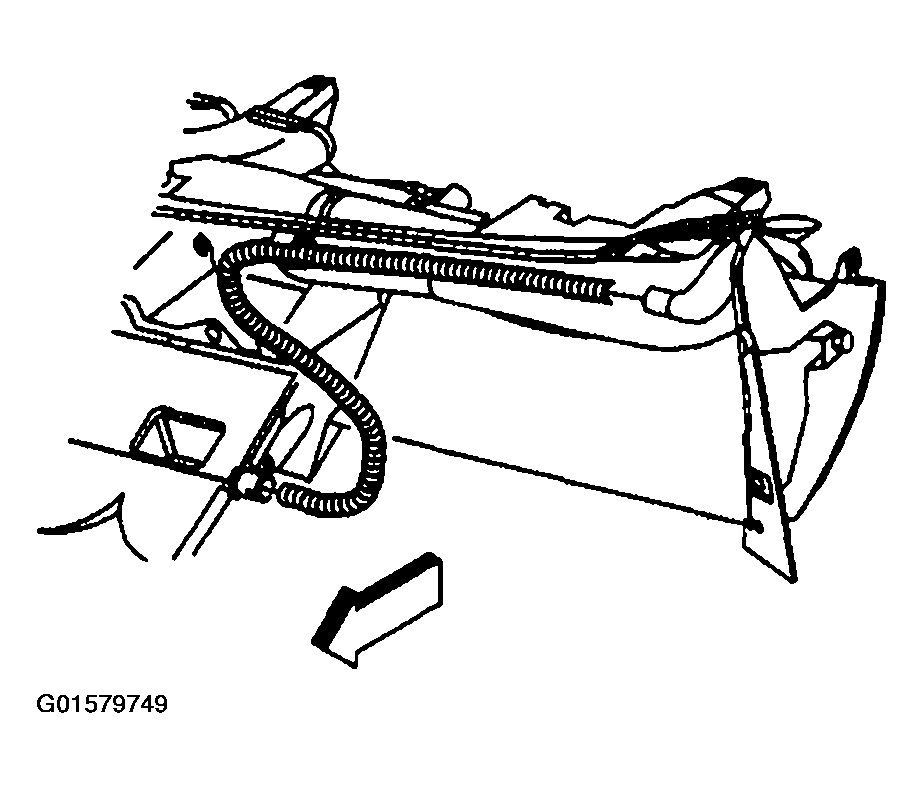

    Fig 1: Removing/Installing Air Outlet Duct - Left Defogger (Chevrolet)
    G01579749Courtesy of GENERAL MOTORS CORP.
  3. Remove the defroster duct from the clips.
  4. Disconnect the defroster duct from the left side window defogger adapter.
  5. Remove the defroster duct from the I/P carrier.
  6. Remove the left side window defogger adapter.
