Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Reposition the cruise control module out of the way, if equipped.
  3. Remove the 2 nuts holding the bracket for the PCM Module. Position the bracket and module out of the way.

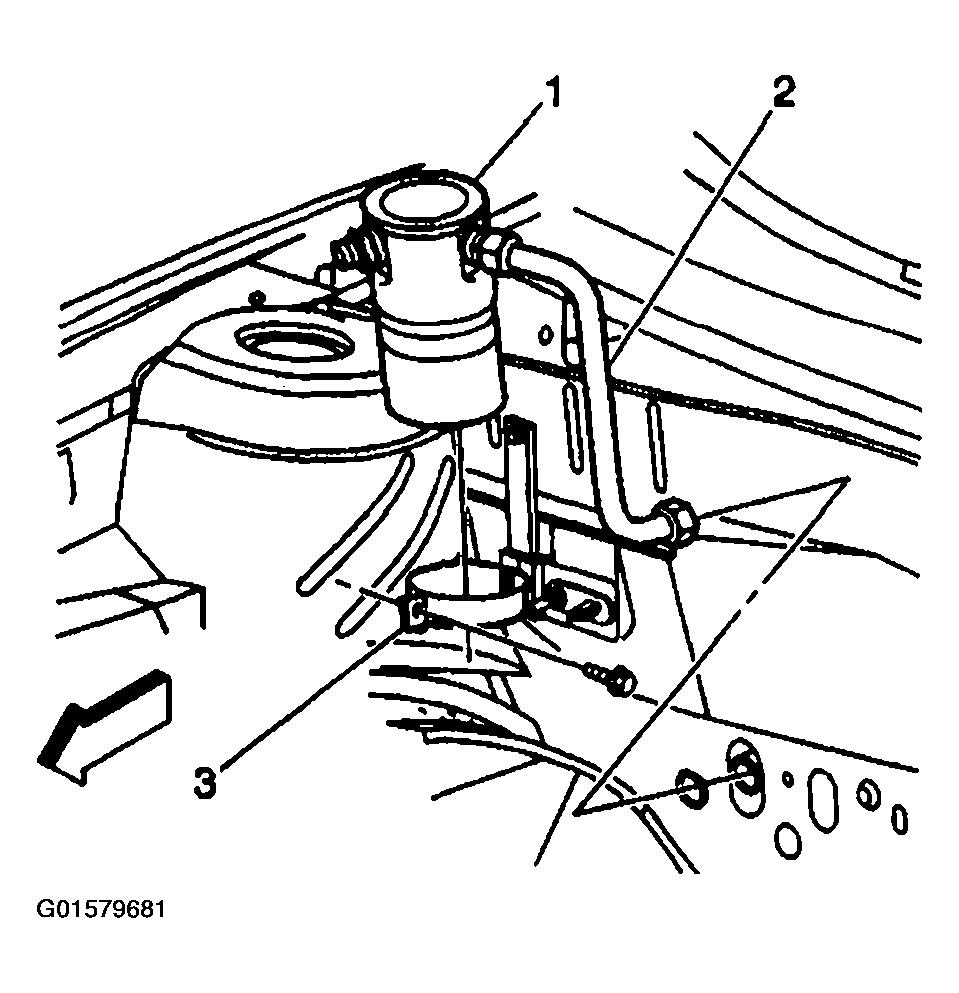

    Fig 1: Removing/Installing Accumulator Tube
    G01579681Courtesy of GENERAL MOTORS CORP.
  4. Remove the accumulator tube fitting nut from the accumulator.

    Use a back-up wrench on the evaporator core fitting.

  5. Remove the accumulator tube fitting nut from the evaporator core.
  6. Remove the accumulator tube.
  7. Remove and discard the O-rings.
