Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
- Install new O-rings on both ends of the accumulator tube. Refer to O-Ring Replacement .

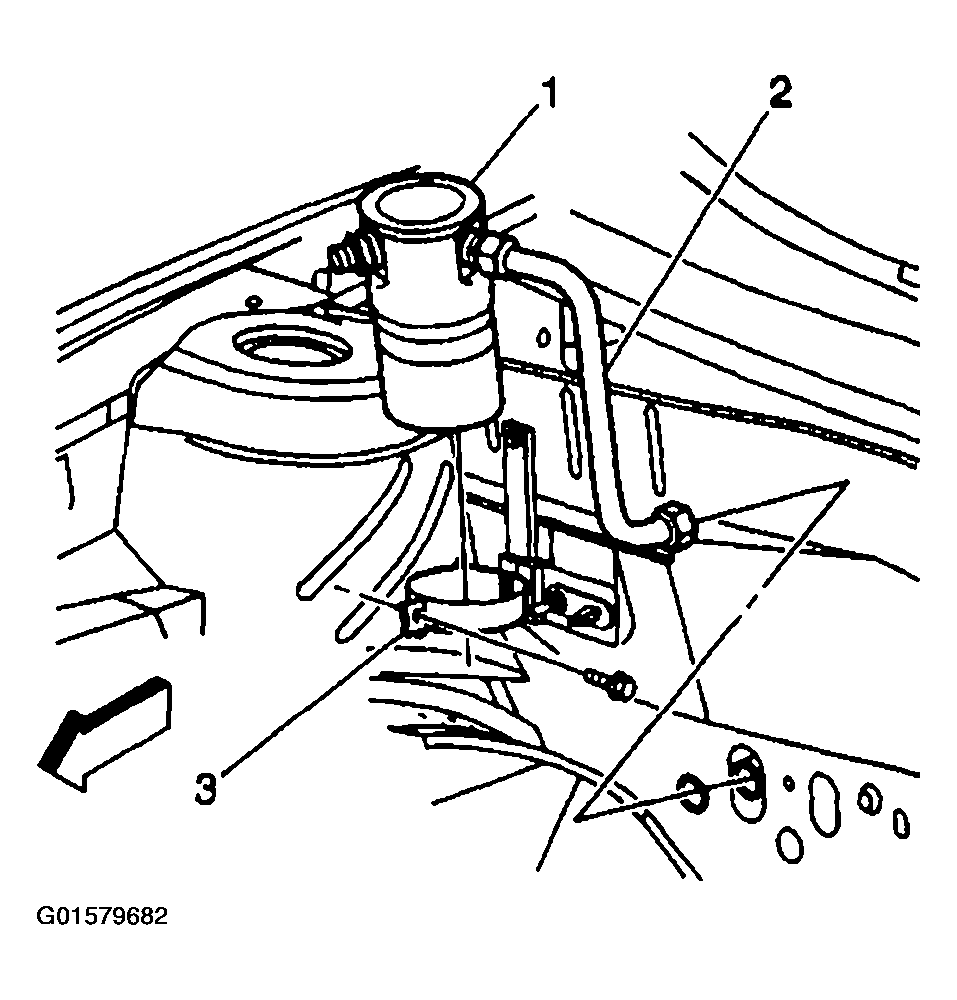

- Install the accumulator tube to the accumulator and the evaporator core.
- Install the accumulator tube fitting nuts.
Tighten
Tighten the nuts to 35 N.m (26 lb ft).
- Reposition the cruise control module.
- Position the bracket holding the PCM module on to the shock tower.
- Install the bracket nuts holding the PCM module on to the shock tower.
Tighten
Tighten the nuts to 10 N.m (89 lb in).
- Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
- Leak test the fittings of the component using the J 39400-A.
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
