Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Reposition the cruise control bracket with module, if equipped.
  3. Remove the 2 nuts holding the bracket for the PCM module. Position the bracket and module out of the way.
  4. Remove the refrigerant tubes from the accumulator (1).

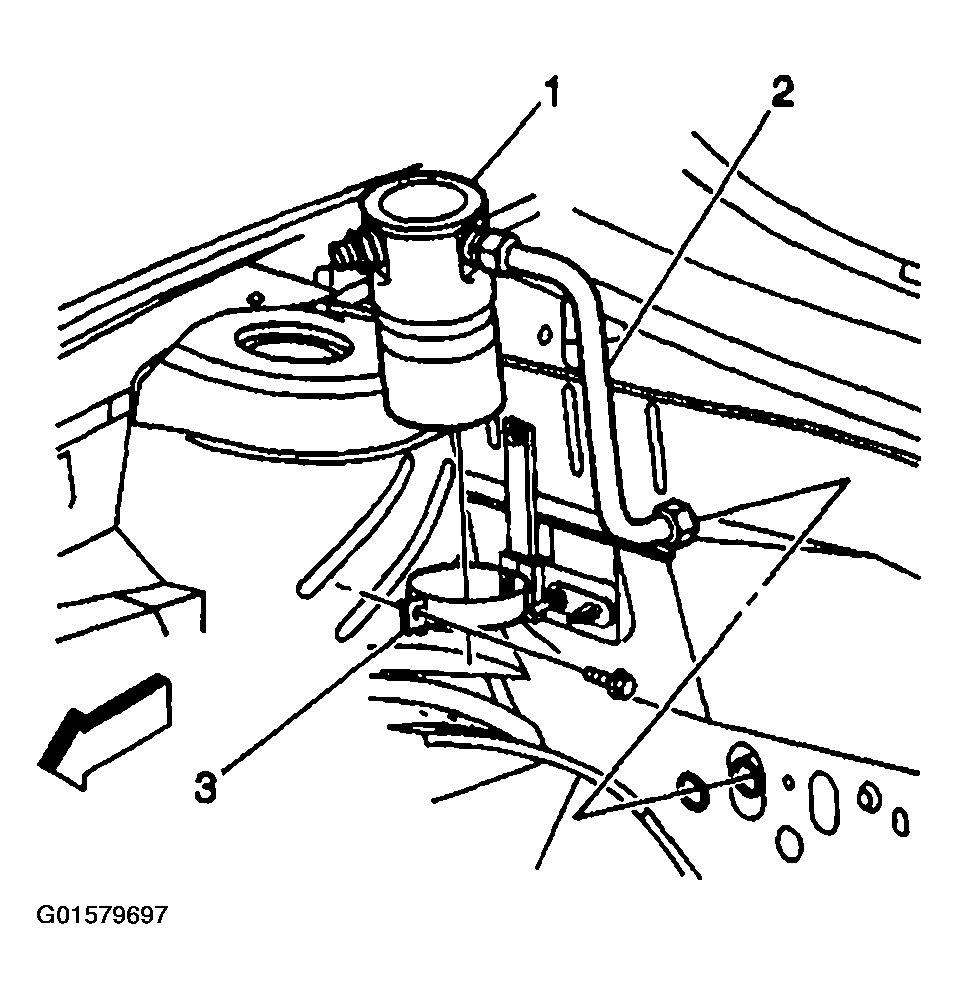

    Fig 1: Removing/Installing Accumulator (L61)
    G01579697Courtesy of GENERAL MOTORS CORP.
  5. Discard the O-ring seals.
  6. Remove the accumulator bracket (3).
  7. Remove the accumulator (1) from the vehicle.
