WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

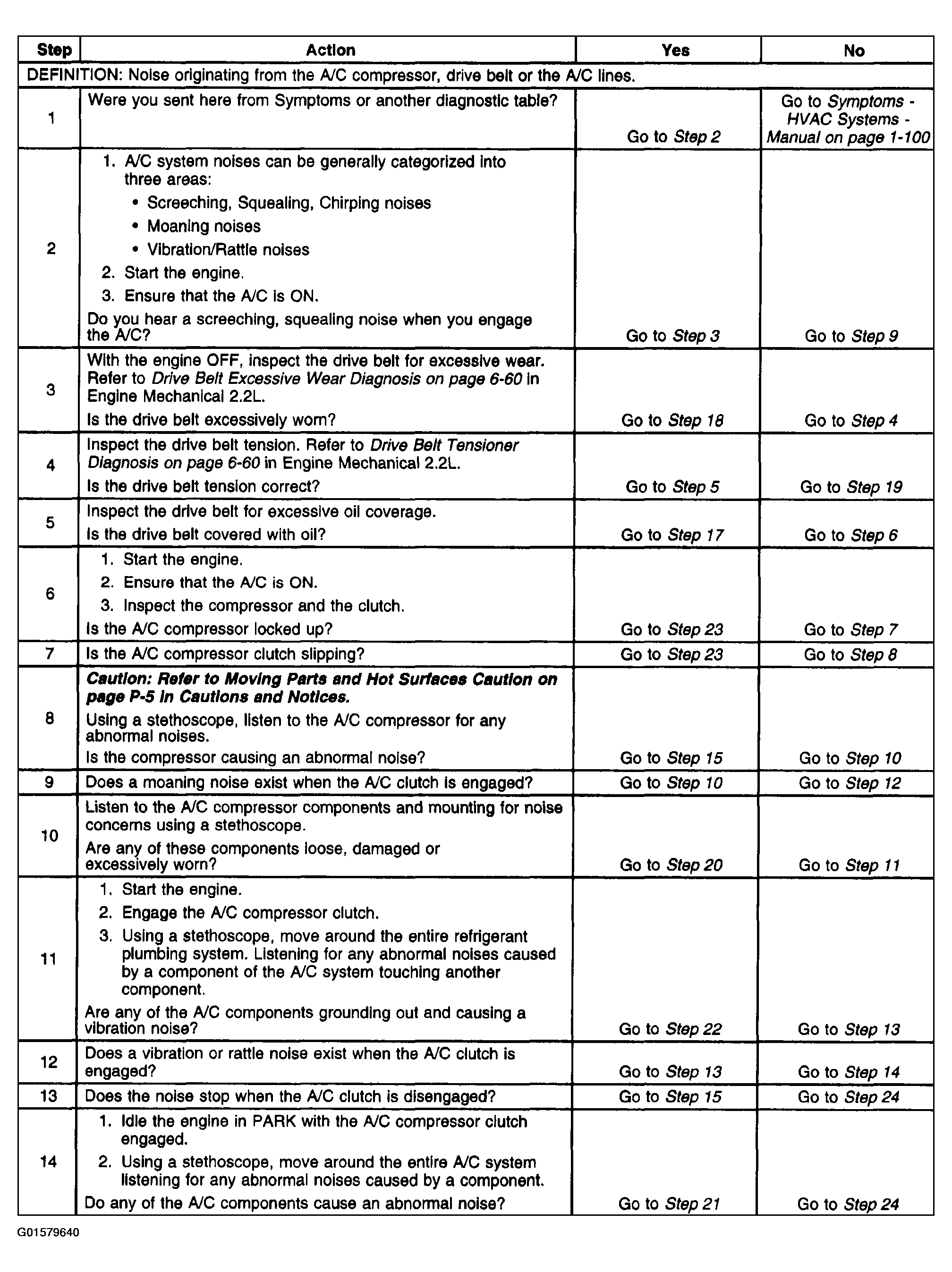

Fig 1: Noise Diagnosis - Air Conditioning (A/C) System (Steps 1-14)
Courtesy of GENERAL MOTORS CORP.

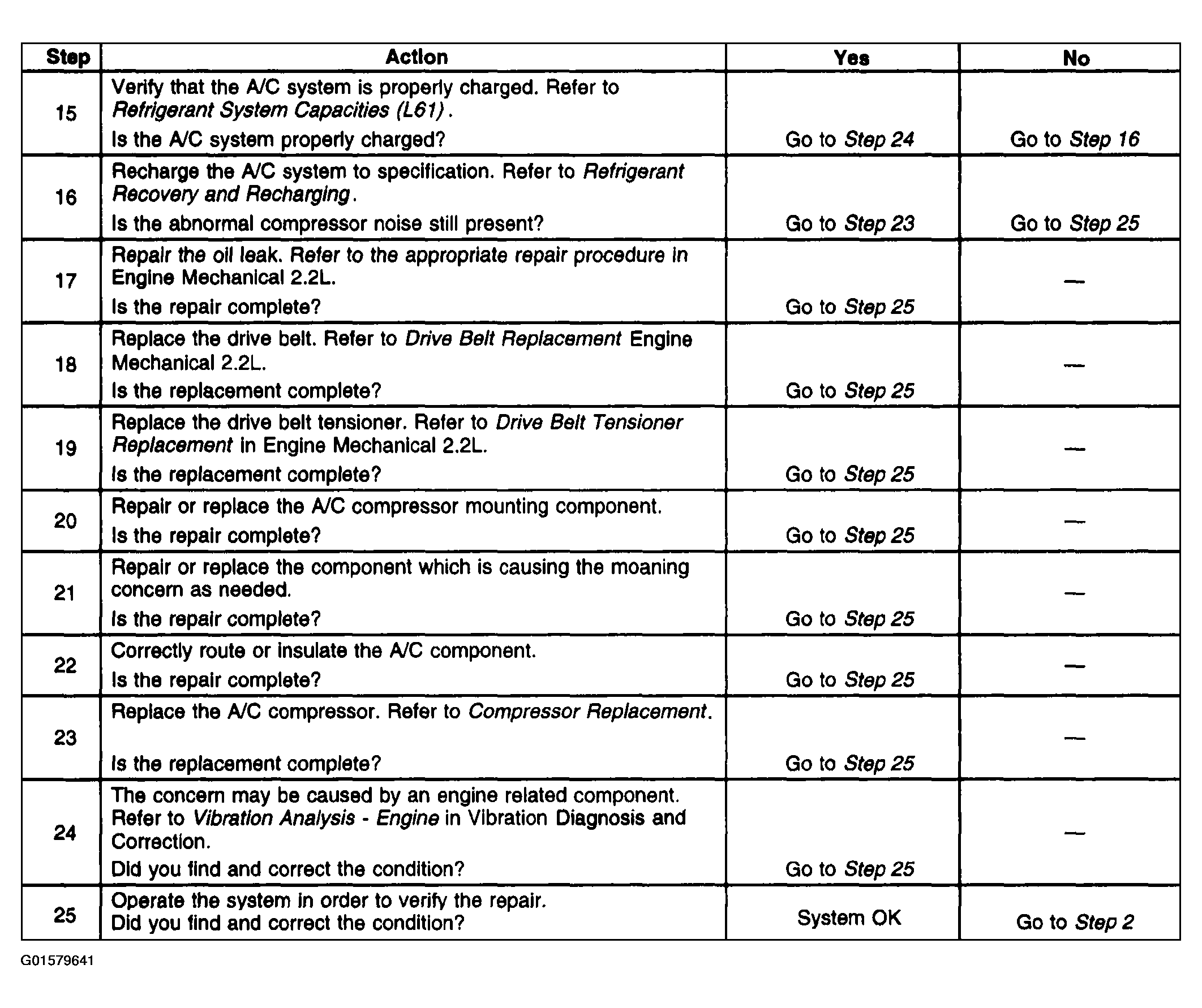

Fig 2: Noise Diagnosis - Air Conditioning (A/C) System (Steps 15-25)
