Air Conditioning (A/C) Diagnostics - Pressure Zone D

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

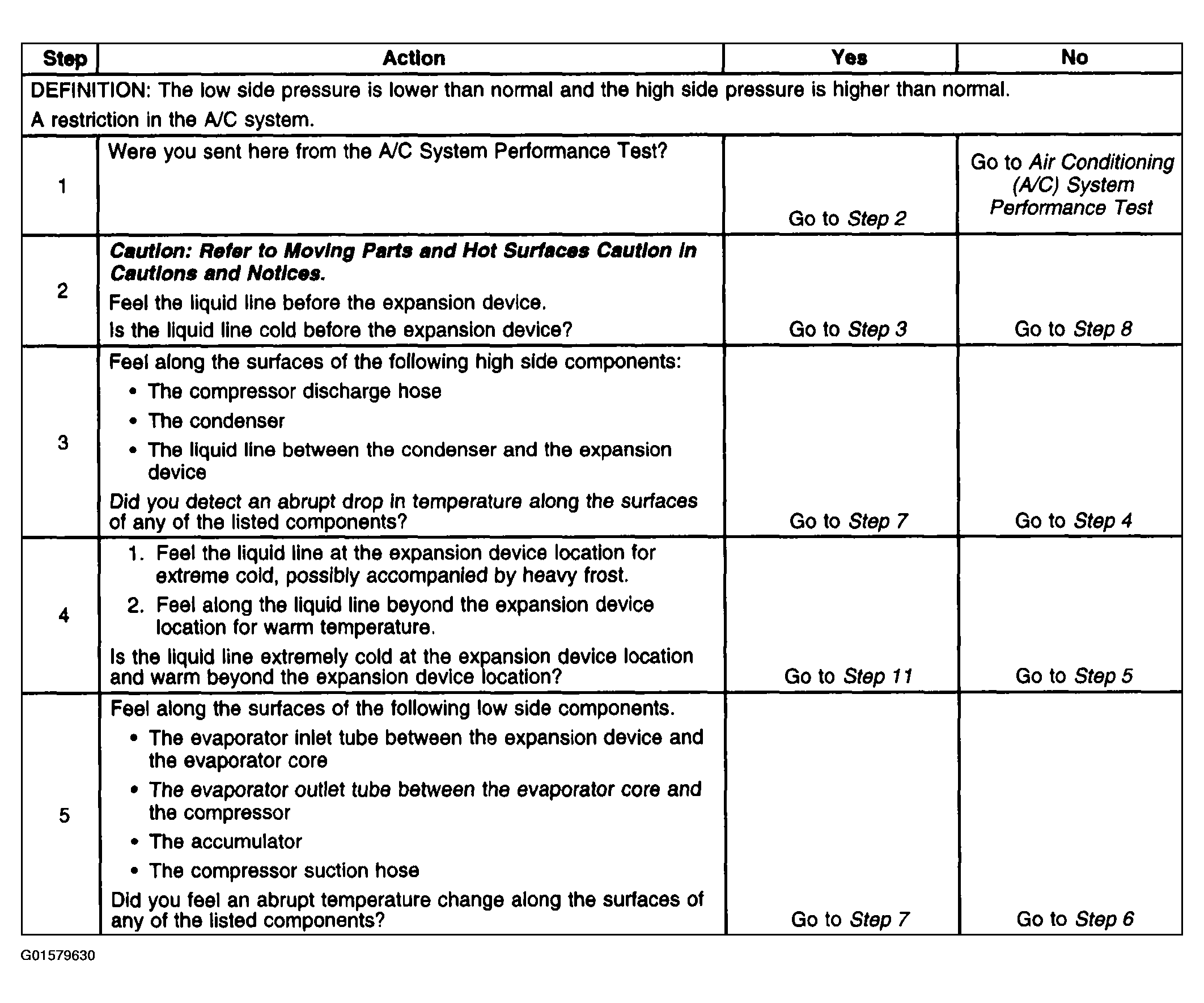

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone D (Steps 1-5)
G01579630Courtesy of GENERAL MOTORS CORP.

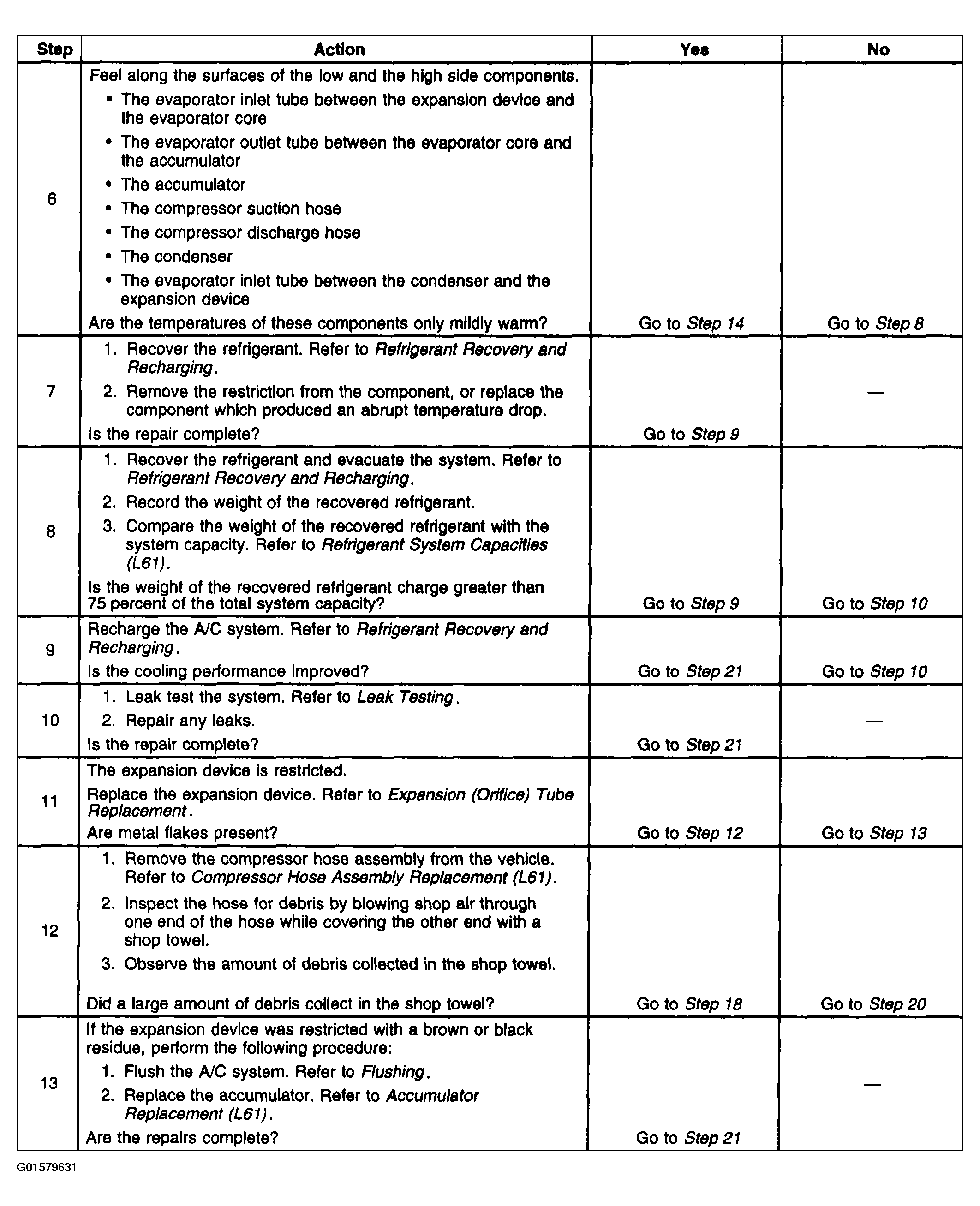

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone D (Steps 6-13)
G01579631Courtesy of GENERAL MOTORS CORP.

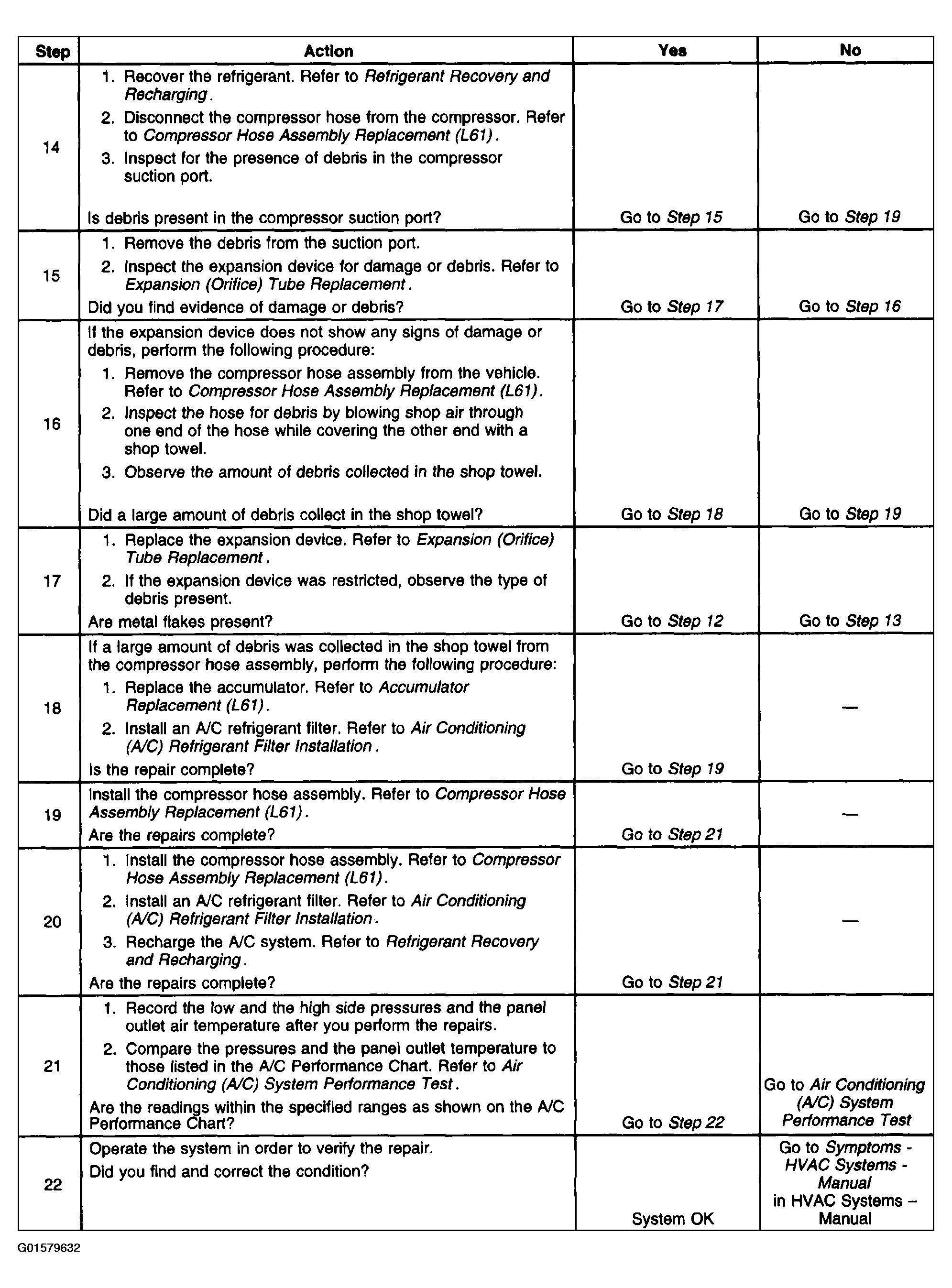

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone D (Steps 14-22)
G01579632Courtesy of GENERAL MOTORS CORP.
