Air Conditioning (A/C) Diagnostics - Pressure Zone B

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

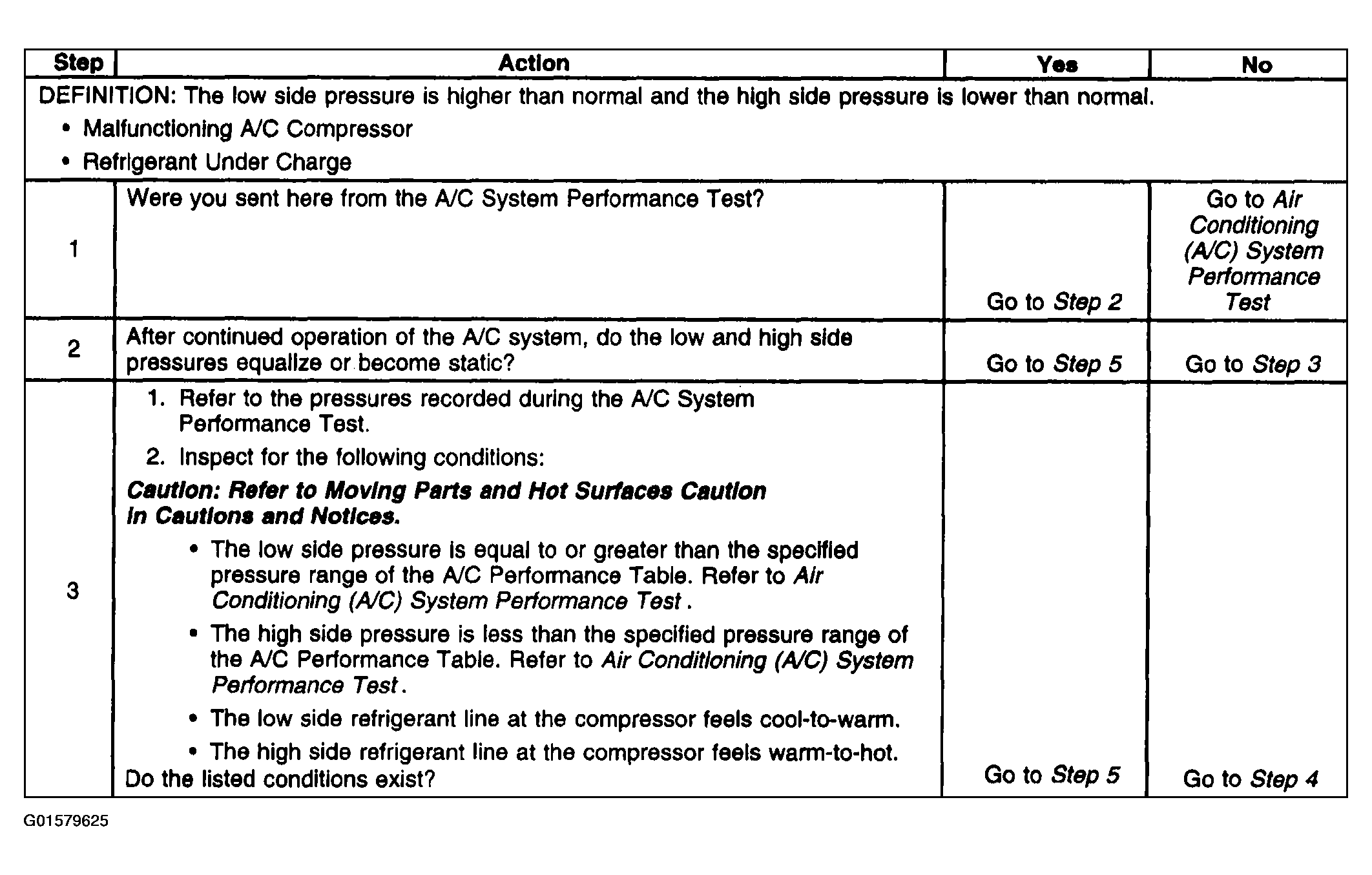

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone B (Steps 1-3)
G01579625Courtesy of GENERAL MOTORS CORP.

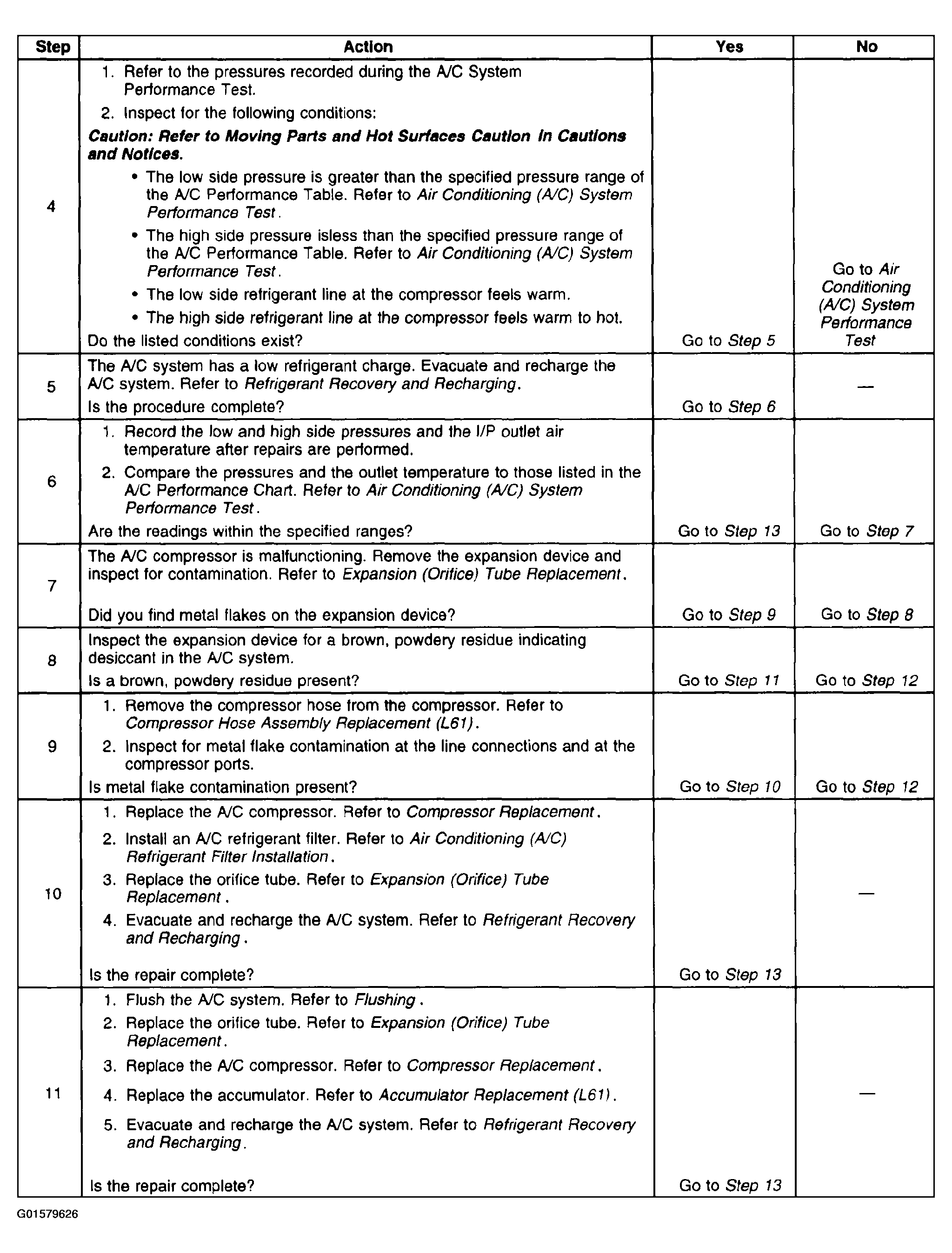

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone B (Steps 4-11)
G01579626Courtesy of GENERAL MOTORS CORP.

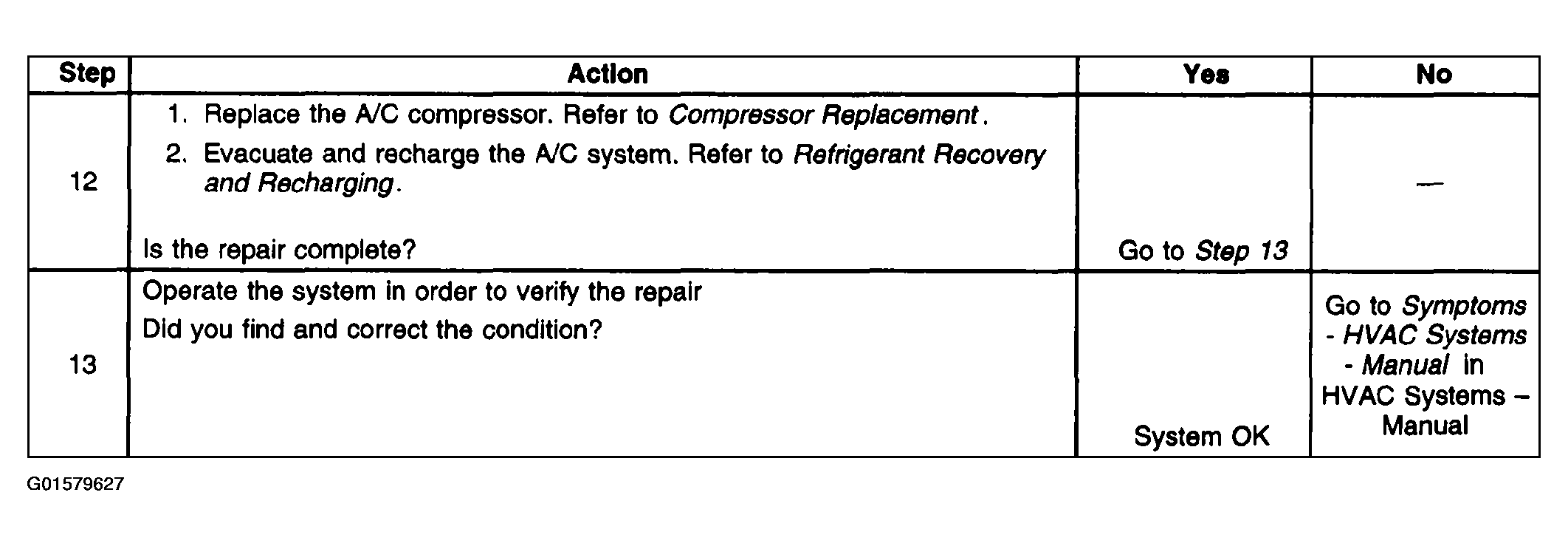

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone B (Steps 12-13)
G01579627Courtesy of GENERAL MOTORS CORP.
