Air Conditioning (A/C) Diagnostics - Pressure Zone A

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

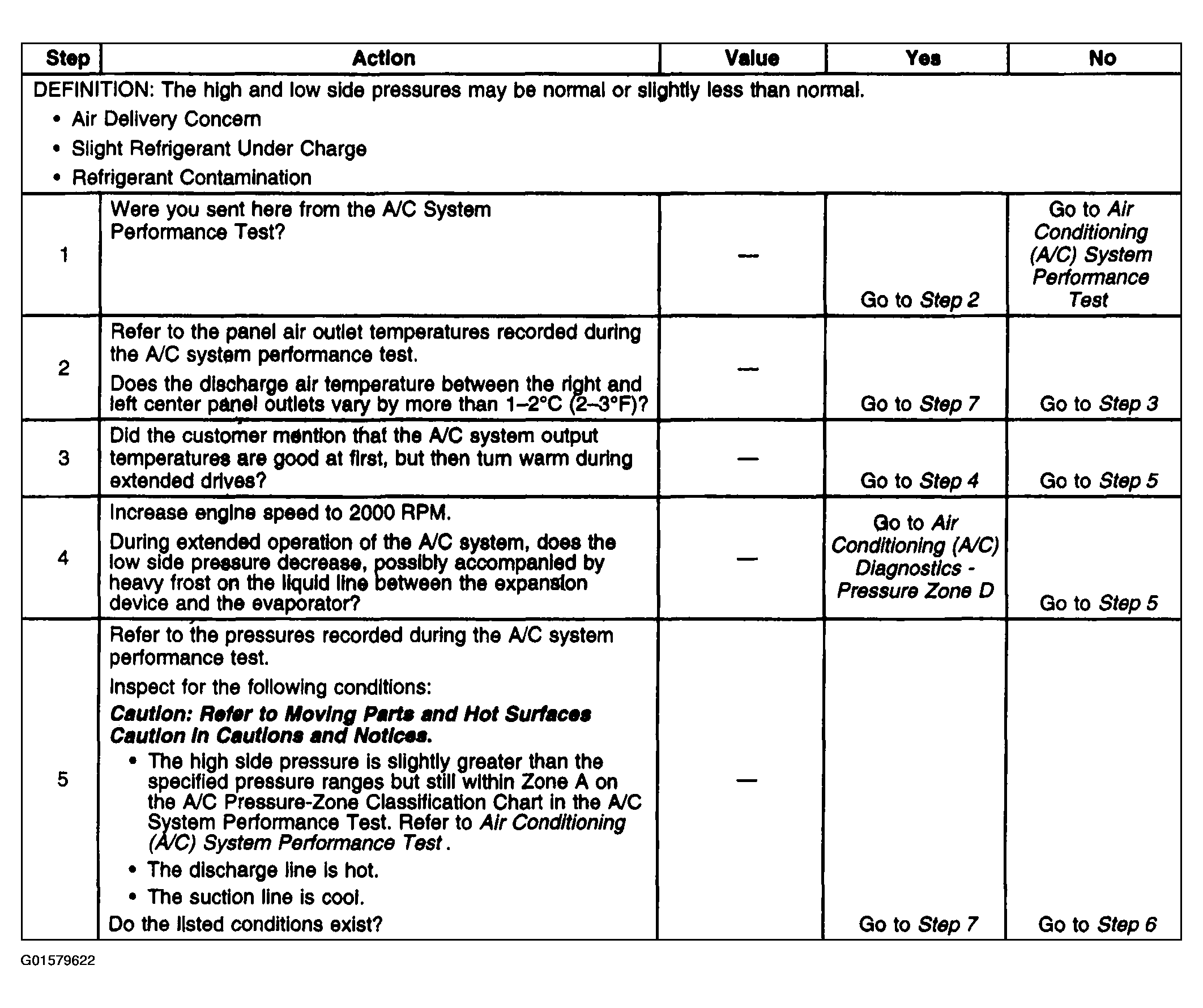

Fig 1: Air Conditioning (A/C) Diagnostics - Pressure Zone A (Steps 1-5)
G01579622Courtesy of GENERAL MOTORS CORP.

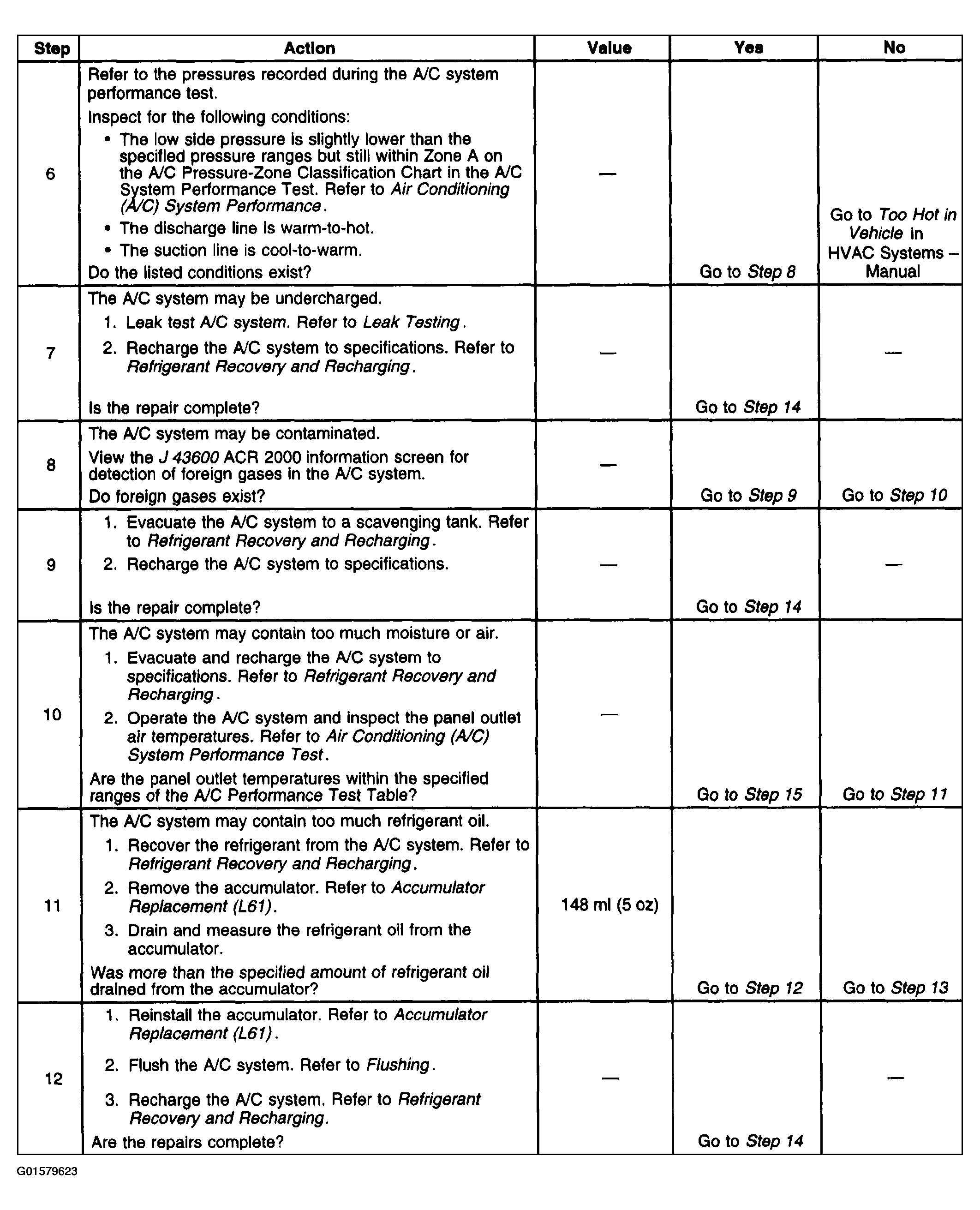

Fig 2: Air Conditioning (A/C) Diagnostics - Pressure Zone A (Steps 6-12)
G01579623Courtesy of GENERAL MOTORS CORP.

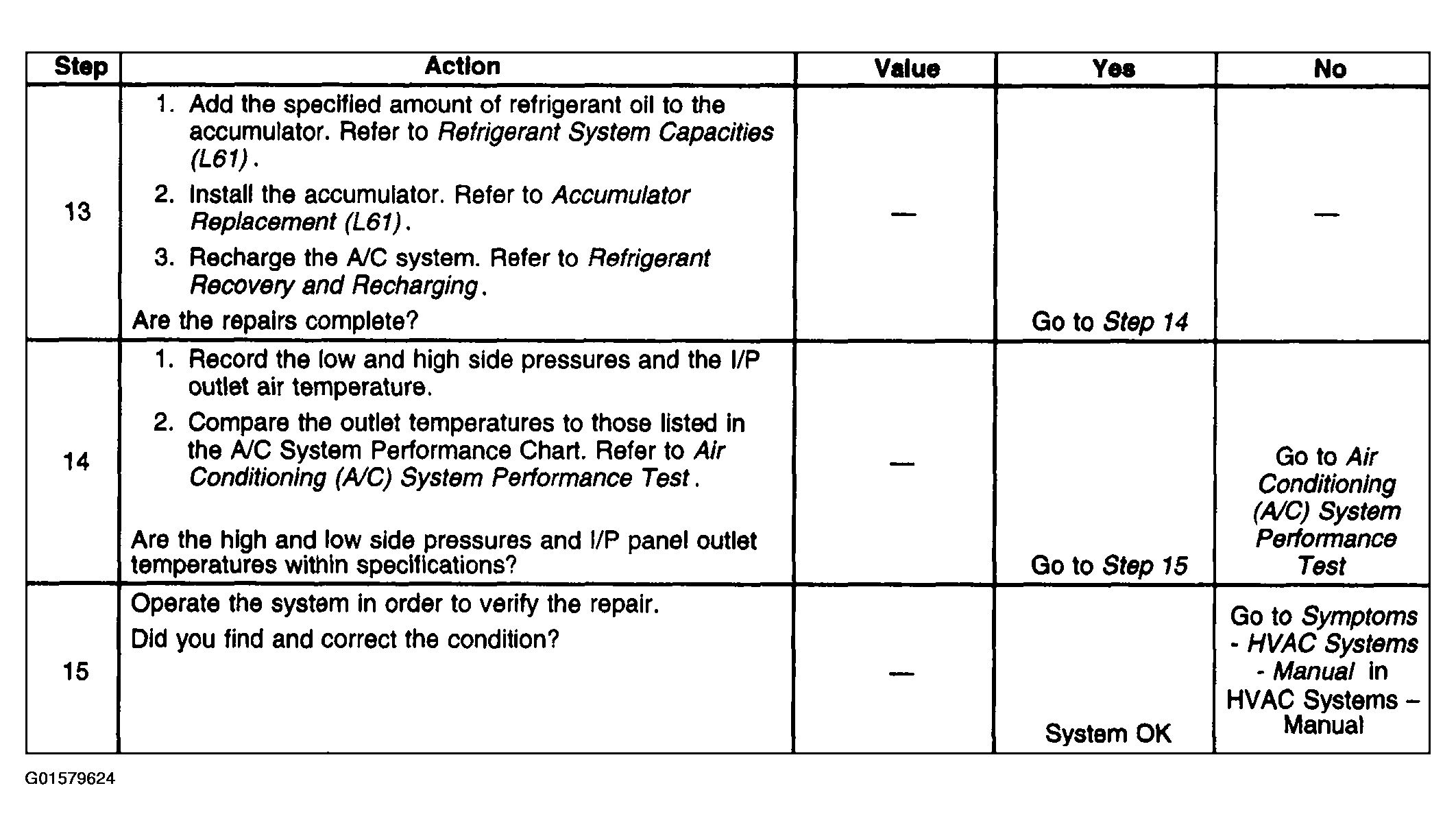

Fig 3: Air Conditioning (A/C) Diagnostics - Pressure Zone A (Steps 13-15)
G01579624Courtesy of GENERAL MOTORS CORP.
