A/C System Pressure - Zone Classification

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

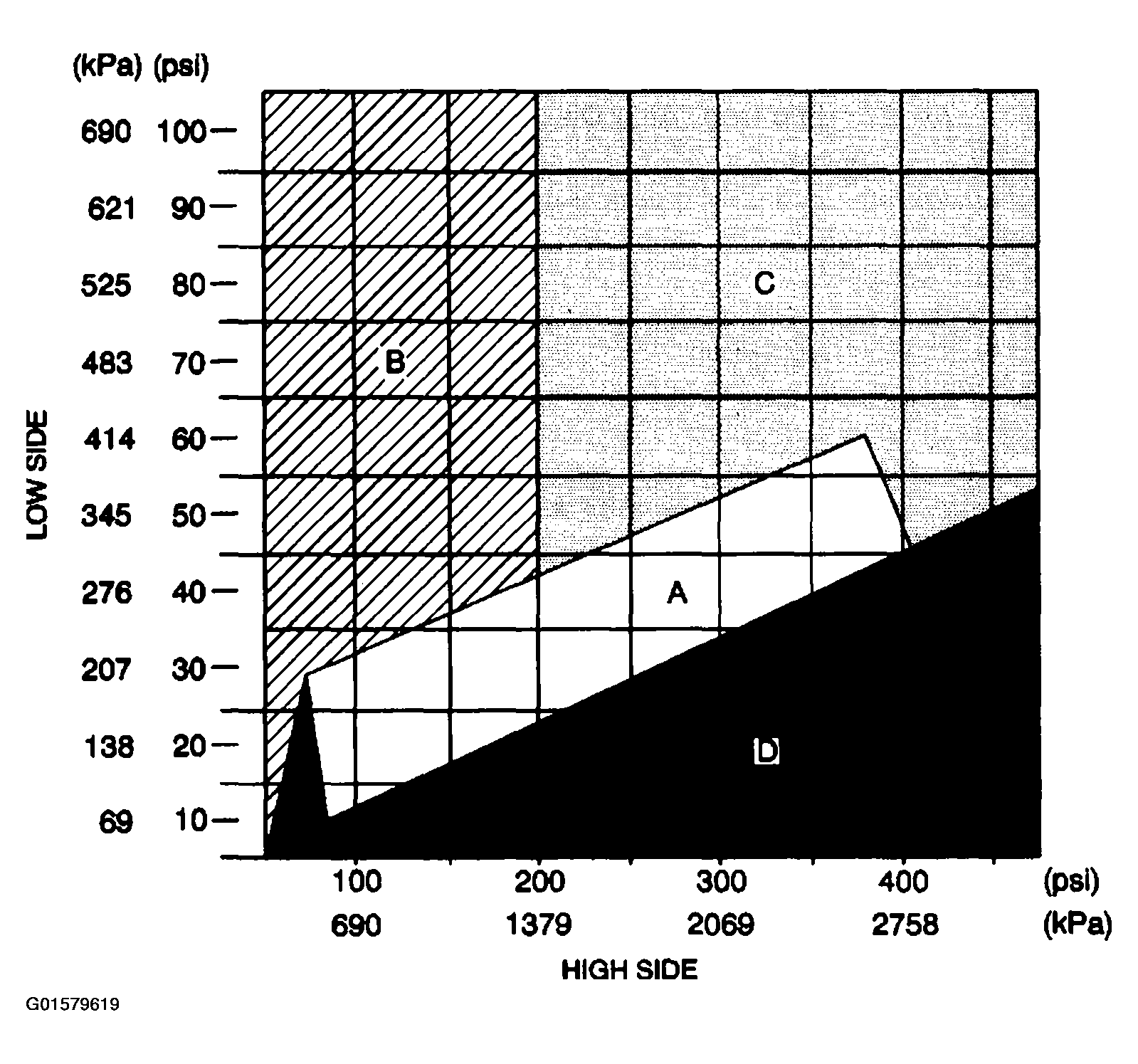

Fig 1: A/C System Pressure - Zone Classification
G01579619Courtesy of GENERAL MOTORS CORP.
