Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood latch support (1) in the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lower bolts (4) to the hood latch support.

    Tighten

    Tighten the hood latch support lower bolts to 27 N.m (20 lb ft).

  3. Install the upper bolts (2) to the hood latch support.

    Tighten

    Tighten the hood latch support upper bolts to 9 N.m (80 lb.in).

  4. Install the hood latch. Refer to Hood Latch Replacement

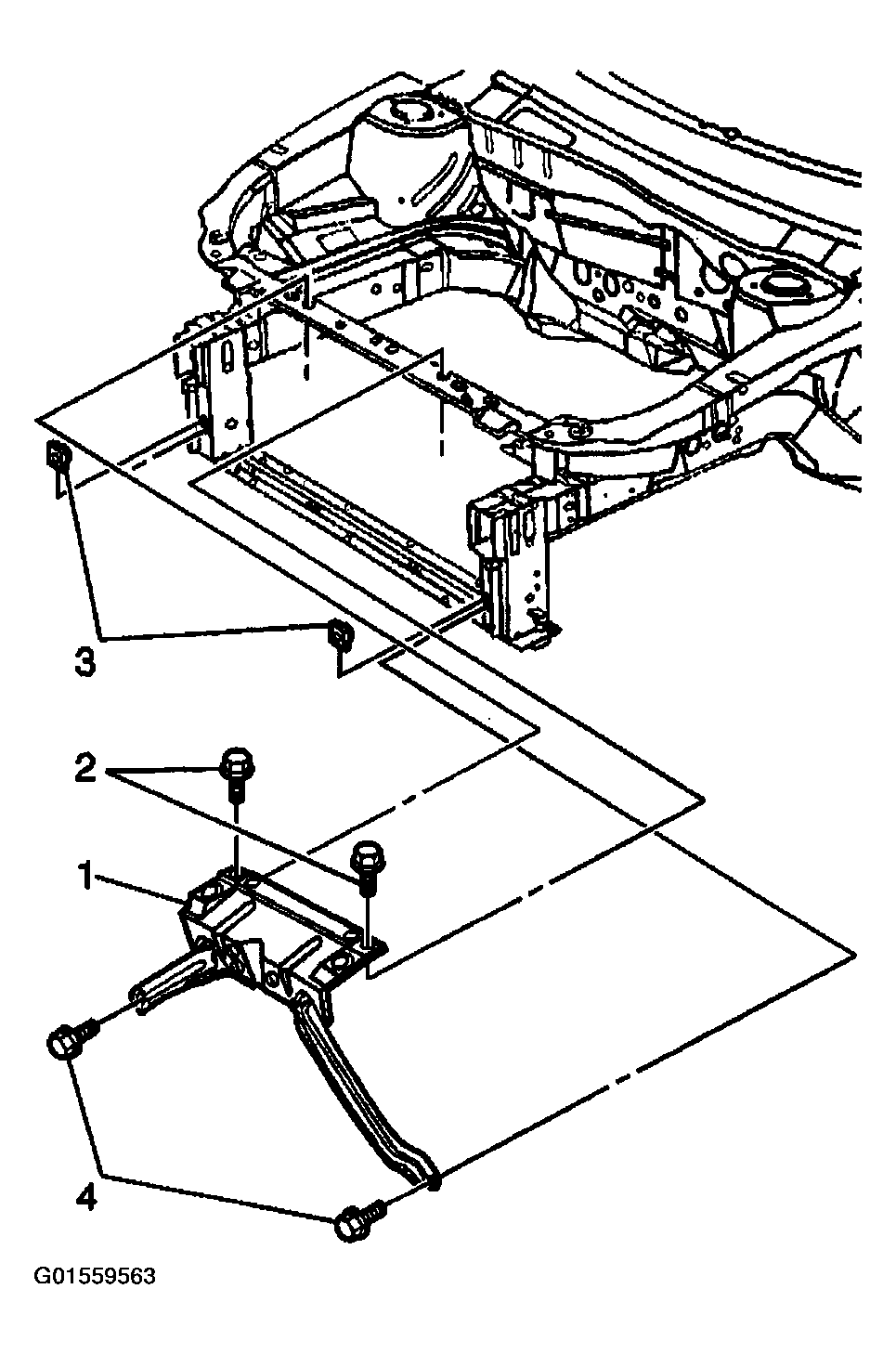

    Fig 1: Installing Hood Latch Support & Bolts
    G01559563Courtesy of GENERAL MOTORS CORP.
  5. Engage the air bag sensor. Refer to ZONE 1 and ZONE 1 .
  6. Install the hood latch cover. Refer to Hood Latch Cover Replacement
  7. Install the hood close out filler panel. Refer to Hood Close Out Filler Replacement
