Zone 1

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

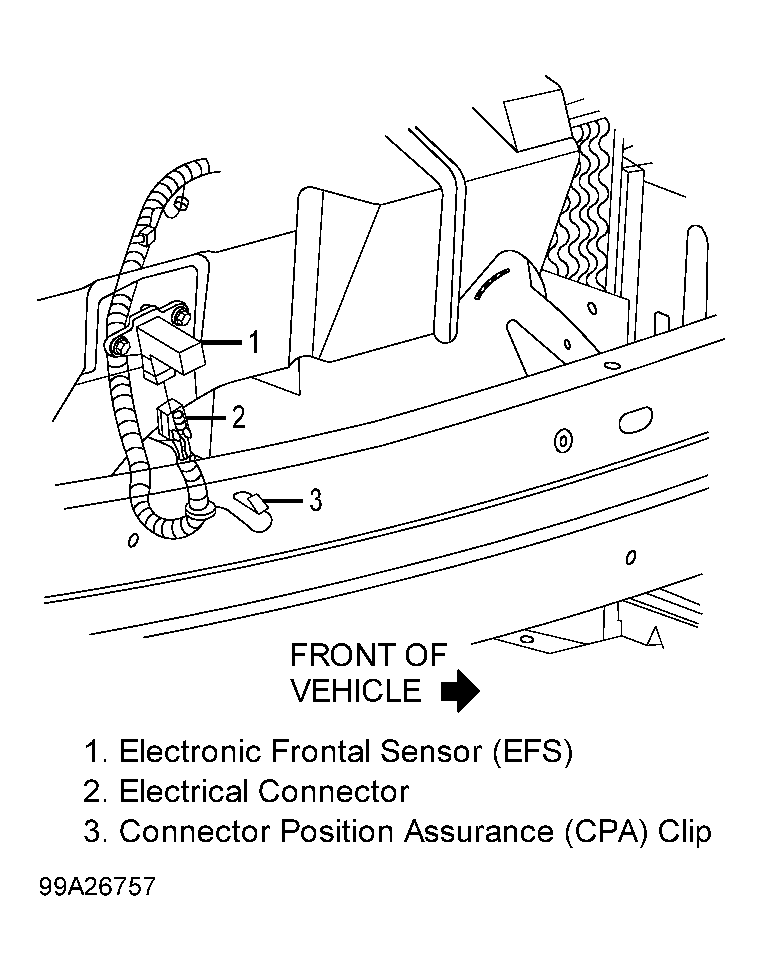

  1. Ensure ignition is off and key is removed. Connect Electronic Frontal Sensor (EFS) electrical connector. See Figure. Install Connector Position Assurance (CPA) clip. Install hood filler closeout panel.
  2. Install AIR BAG fuse (15-amp) in instrument panel fuse block. Install access panel on end of driver-side instrument panel. Staying well away from air bag modules, turn ignition on. Check system for proper operation. See SYSTEM OPERATION CHECK .
